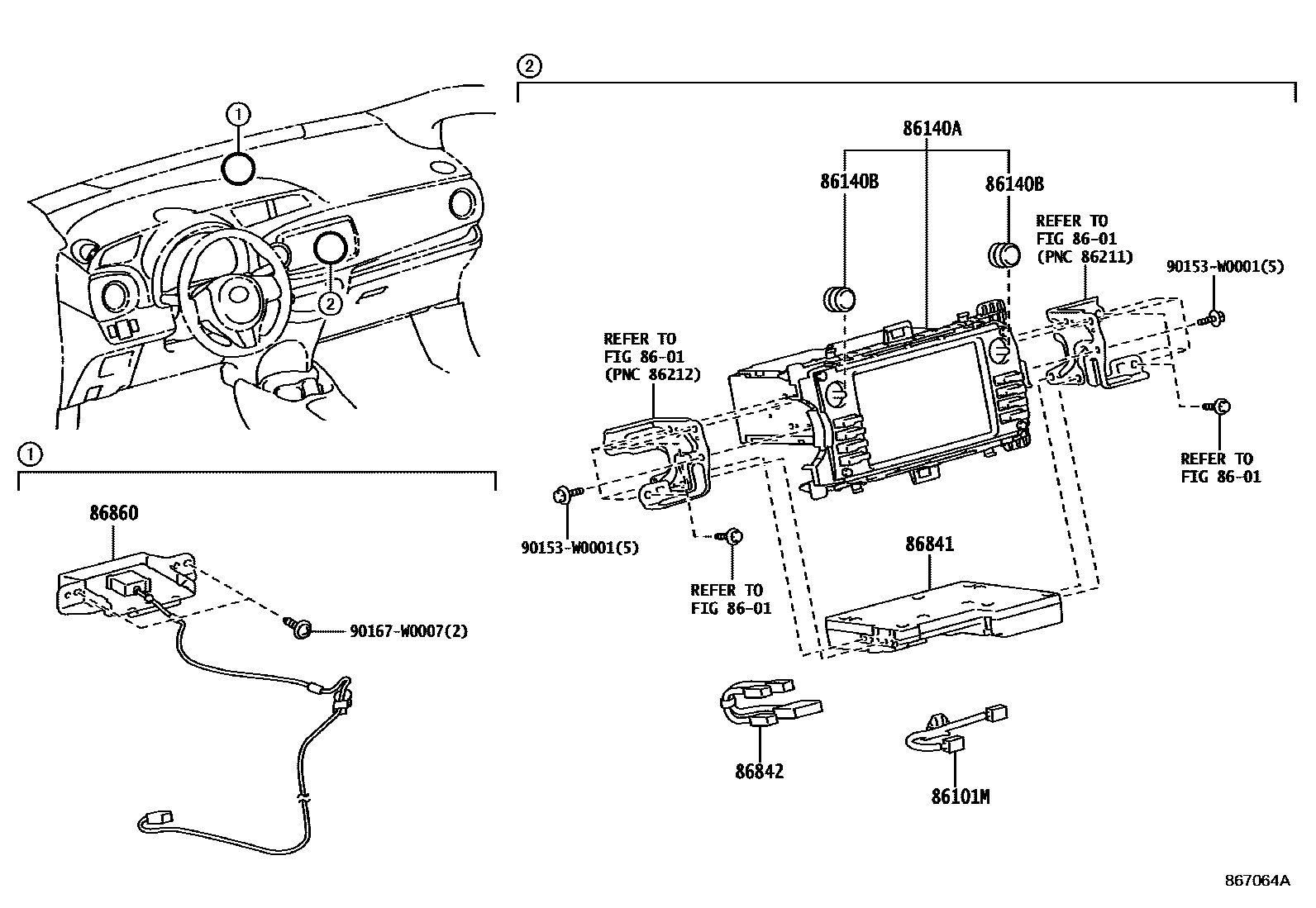

NAVIGATION & FRONT MONITOR DISPLAY

8601

86101MCORD SUB-ASSY, ANTENNA

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0D440iNSP131..LHD201711

FUJITSU TEN

main86140-0D450iNSP131..RHD201711

FUJITSU TEN

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90011-25299iNSP131201711

86841COMPUTER, NAVIGATION

main86840-0F020

main86840-0F040

86842WIRE, NAVIGATION, NO.1

main86842-12010

86860ANTENNA ASSY, NAVIGATION

main86860-0D020

90153W0001

main90153-W0001¥110

90167W0007

main90167-W0007¥110

9 parts on this diagram · 1 diagram in section
