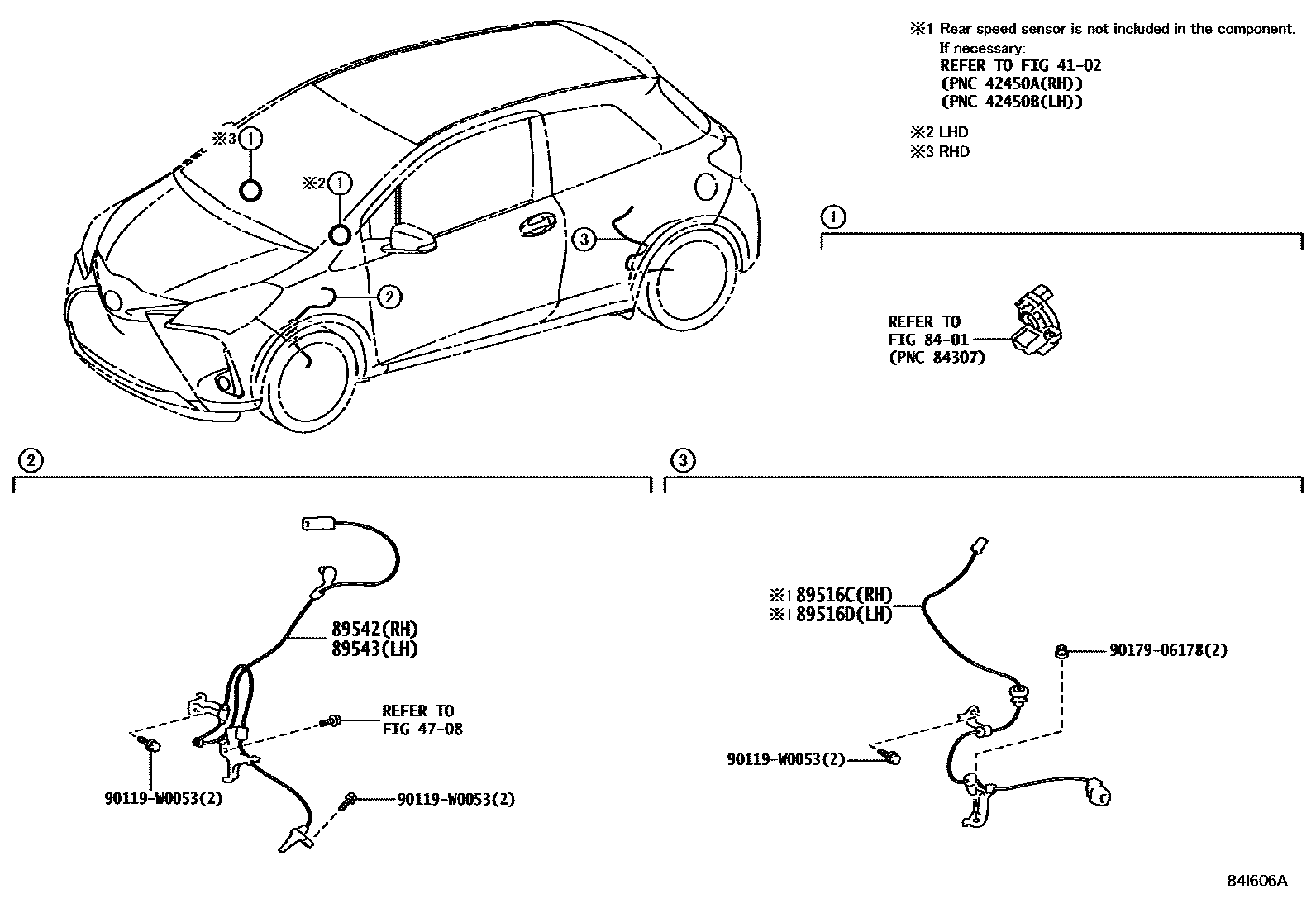

ABS & VSC

4102

4708

8401

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-0D130iNSP131¥1,900201711

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-0D140iNSP131¥1,900201711

89542SENSOR, SPEED, FRONT RH

main89542-0D050iNSP131¥10,800201711

89543SENSOR, SPEED, FRONT LH

main89543-0D050iNSP131¥10,800201711

90119W0053

main90119-W0053¥100

9017906178

main90179-06178¥100

9 parts on this diagram · 1 diagram in section
