BATTERY & BATTERY CABLE

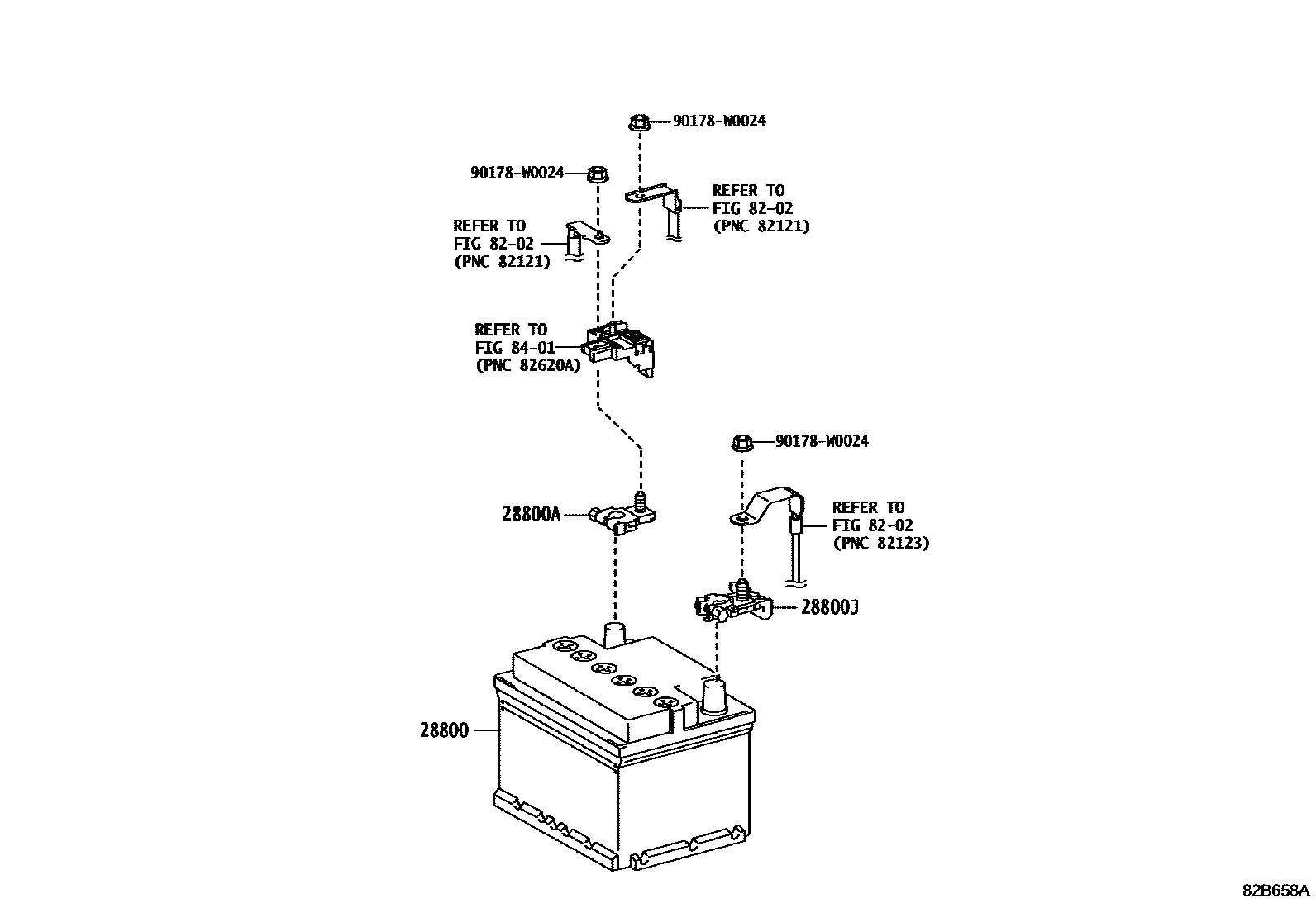

Parts diagram

28800BATTERY

main28800-0D350i201711-201801

LN2

main28800-0D351i201802

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i201711

28800JTERMINAL, BATTERY NEGATIVE

main82675-52090i201711

8202

8401

90178W0024

main90178-W0024

6 parts on this diagram · 1 diagram in section
