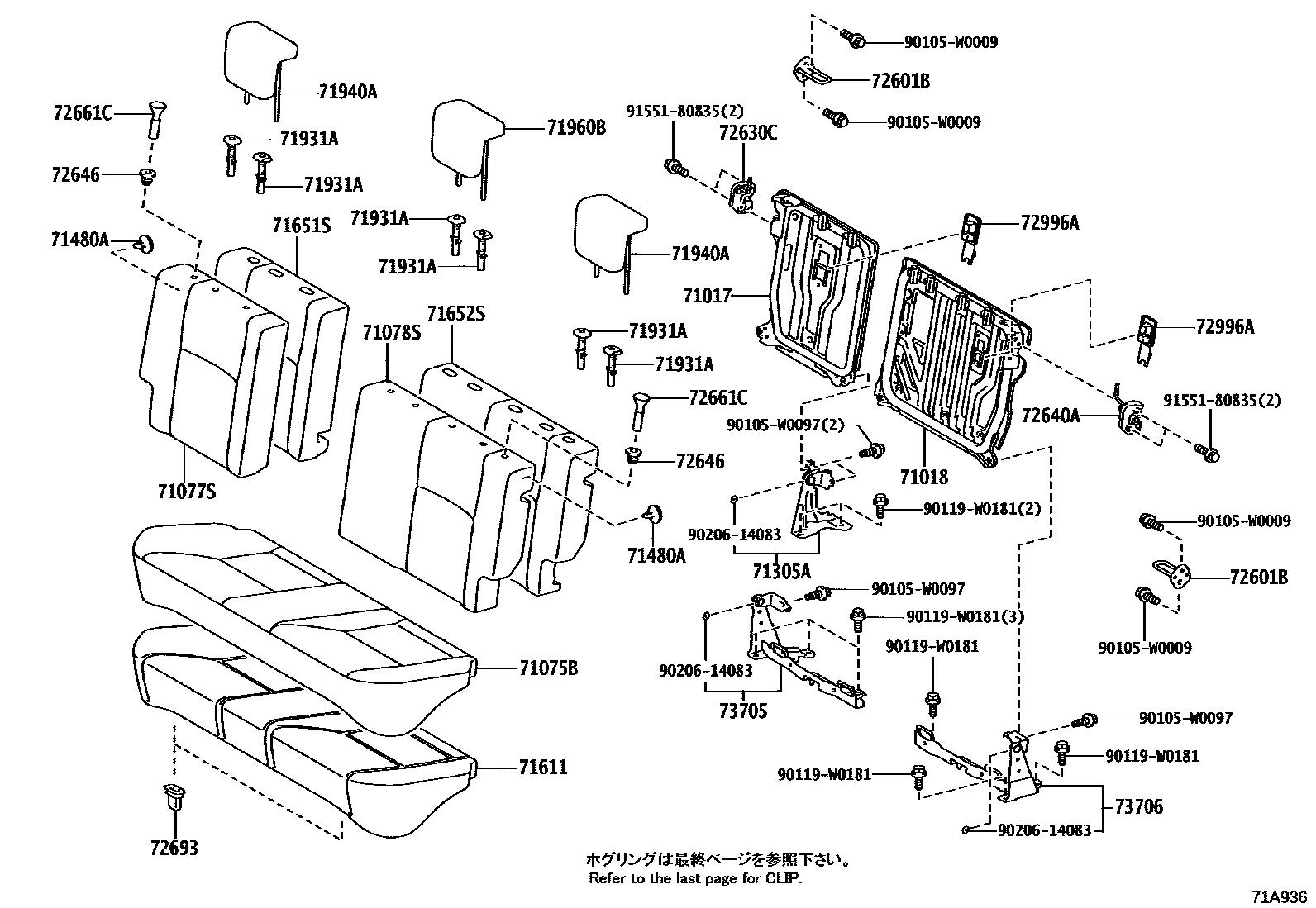

REAR SEAT & SEAT TRACK

0001 1 0002 1CLIP

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-0D251iNSP131¥16,400201711

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0D101iNSP131¥25,600201711

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-0DW10-C1iNSP131201711

BLACK/GRAY,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0U270-C1iNSP131201711

BLACK/GRAY,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-0DJ50-C1iNSP131201711

BLACK/GRAY,TRIM2#

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-0D020iNSP131¥4,190201711

71480ACLIP (FOR REAR SEATBACK)

main90467-05161-C0iNSP131201711

BLACK

sub90467-05161¥90

71611PAD, REAR SEAT CUSHION

main71503-0D630iNSP131¥28,100201711

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0D220iNSP131¥10,600201711

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-0D140iNSP131¥14,700201711

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-21iNSP131201711

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71931-47010-C8iNSP131201711

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

71940AHEADREST ASSY, REAR SEAT

main71940-0DQ30-C1iNSP131201711

BLACK/GREY,TRIM2#

sub71940-0DQ30¥22,900

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-0D530-21iNSP131201711

BLACK/GREY,TRIM2#

sub71960-0D530¥18,400

72601BSTRIKER SUB-ASSY, REAR SEATBACK LOCK

main72601-0D030iNSP131¥1,820201711

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-52170iNSP131¥2,670201711

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-52170iNSP131¥2,670201711

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-0D021-C1iNSP131201711

EU BLACK,TRIM2#

sub72646-0D021¥500

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-0D041-C1iNSP131201711

EU BLACK,TRIM2#

sub72661-0D041¥270

72693HOOK, REAR SEAT CUSHION LOCK

main72693-0D040iNSP131¥440201711

72996ACOVER, REAR SEATBACK

main72996-0D040-C0iNSP131201711

EU BLACK,TRIM2#

73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH

main73705-0D620iNSP131¥3,650201711

73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH

main73706-0D020iNSP131¥3,650201711

90105W0009

main90105-W0009

90105W0097

main90105-W0097

90119W0181

main90119-W0181¥100

9020614083

main90206-14083

9155180835

main91551-80835¥80

27 parts on this diagram · 2 diagrams in section
