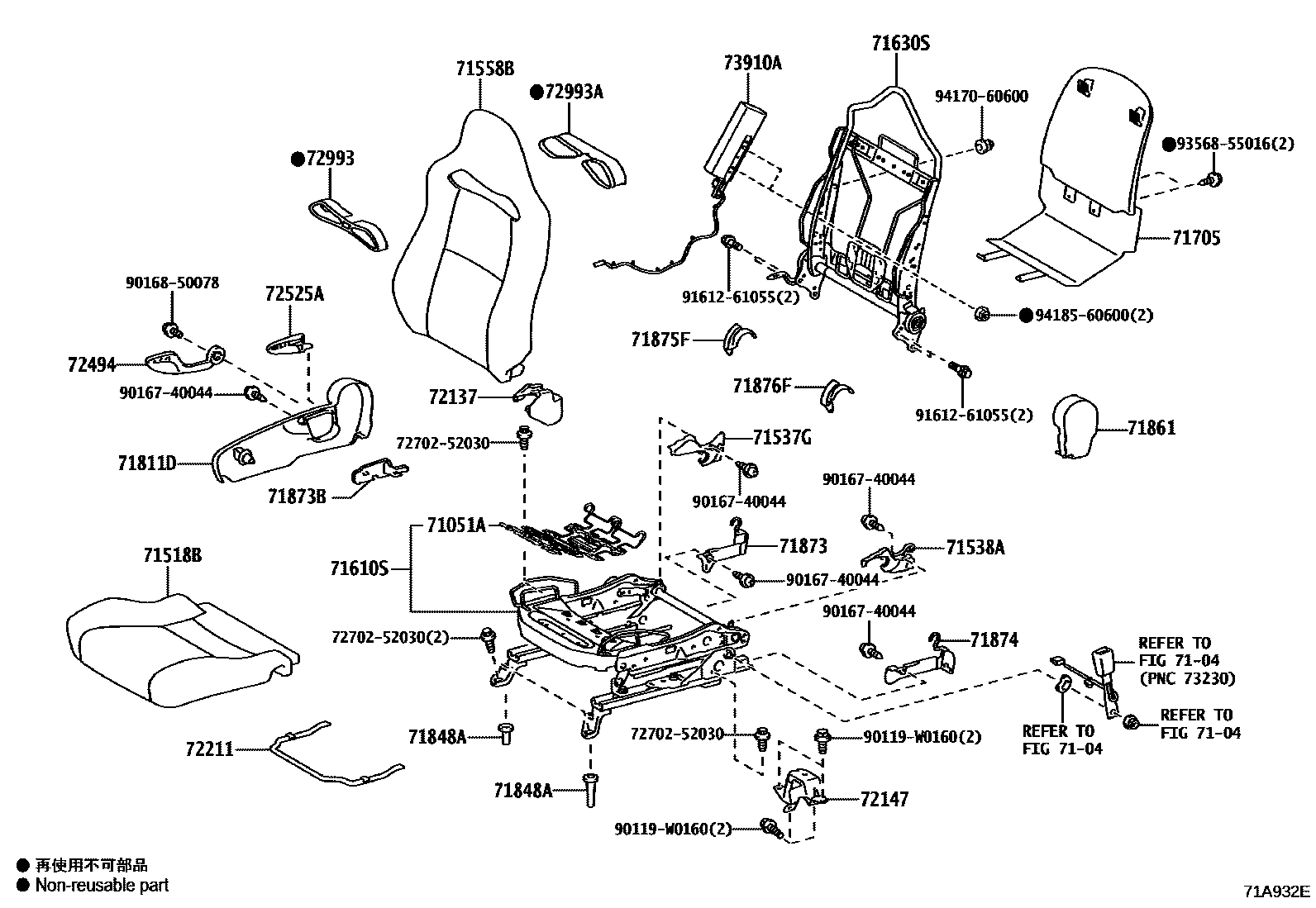

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1DRIVER SEAT 0004 1PASSENGER SEAT

7104

71051ASPRING SUB-ASSY, FRONT SEAT CUSHION, RH

main71051-21040iNSP131201711

71518BPAD, FRONT SEAT CUSHION W/COVER, RH

main71518-52U80-C1iNSP131..LHD201711

BLACK,TRIM2#

main71518-52U90-C0iNSP131..RHD201711

BLACK,TRIM2#

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-52100-C0iNSP131..RHD201711

BLACK,TRIM2#

main71537-52110-C0iNSP131..LHD201711

BLACK,TRIM2#

sub71537-52110

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-52050-C0iNSP131..RHD201711

BLACK,TRIM2#

main71538-52060-C0iNSP131..LHD201711

BLACK,TRIM2#

71558BPAD, FRONT SEATBACK W/COVER, RH

main71558-52Y60-C0iNSP131201711

BLACK,TRIM2#

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-52280iNSP131..RHD201711

main71610-52290iNSP131..LHD201711

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-52810iNSP131201711

71705BOARD SUB-ASSY, FRONT SEATBACK, RH

main71705-52010-C0iNSP131201711

BLACK,TRIM2#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-52330-C0iNSP131..RHD201711

BLACK,TRIM2#

main71811-52340-C0iNSP131..LHD201711

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-52040iNSP131201711

OUTER

main71848-52050iNSP131201711

INNER

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-52250-C0iNSP131..LHD201711

BLACK,TRIM2#

main71861-52260-C0iNSP131..RHD201711

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52200-C0iNSP131..RHD201711

BLACK,TRIM2#

71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1

main71873-52230-C0iNSP131..RHD201711

BLACK,TRIM2#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-47040iNSP131..RHD201711

71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)

main71875-60260-C0iNSP131201711

BLACK,TRIM2#

71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)

main71876-60270-C0iNSP131201711

BLACK,TRIM2#

72137COVER, SEAT TRACK, OUTER RH

main72137-0D110-C1iNSP131201711

EU BLACK,TRIM2#

sub72137-0D110

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-0D060iNSP131201711

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52190iNSP131201711

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52040-C0iNSP131..RHD201711

BLACK,TRIM2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-47010-C0iNSP131..RHD201711

BLACK,TRIM2#

sub72525-47010

sub72525-52050

main72525-52050-C0iNSP131..LHD201711

BLACK,TRIM2#

72993COVER, FRONT SEATBACK

main72993-52131-C0iNSP131201711

BLACK,TRIM2#

72993ACOVER, FRONT SEATBACK

main72993-52140-C0iNSP131201711

BLACK,TRIM2#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-52161iNSP131201711

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

90119W0160

main90119-W0160

9016740044

main90167-40044

9016850078

main90168-50078

9161261055

main91612-61055

9356855016

main93568-55016

9417060600

main94170-60600

9418560600

main94185-60600

33 parts on this diagram · 4 diagrams in section
