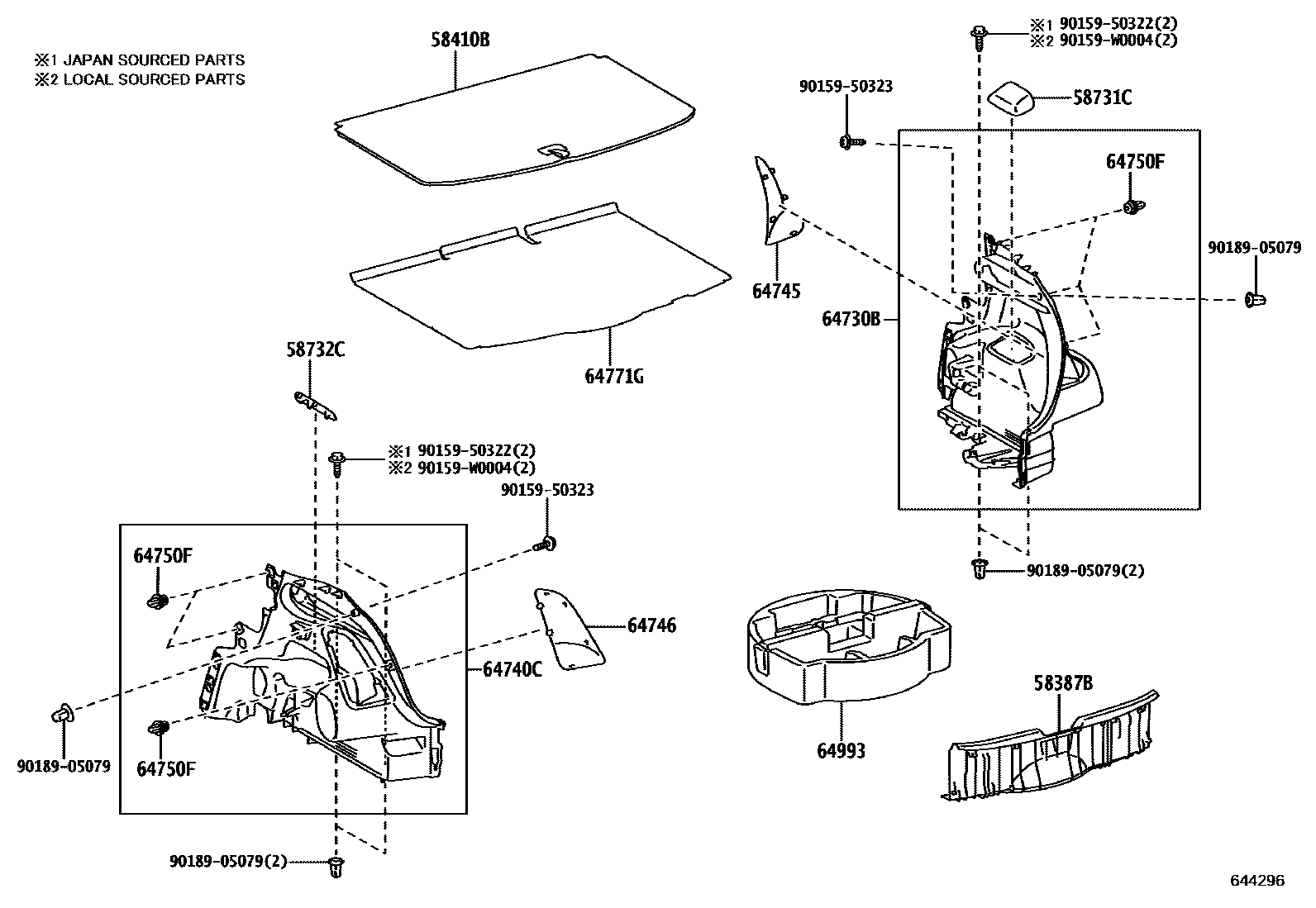

DECK BOARD & DECK TRIM COVER

0001 1 0002 1PACKAGE TRAY TRIM PANEL

58387BPLATE, REAR FLOOR FINISH

main58387-0D090-C1iNSP131201711

EU BLACK,TRIM2#

58410BBOARD ASSY, DECK

main58410-0D050-B2iNSP131201711

DARK GRAY,TRIM2#

58731CCAP, REAR ABSORBER

main58731-0D040-C1iNSP131201711

EU BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58732-0D040-C1iNSP131201711

EU BLACK,TRIM2#

sub58732-0D040¥860

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0D261-C1iNSP131201711

EU BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D281-C1iNSP131201711

EU BLACK,TRIM2#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-0D041-C1iNSP131201711

EU BLACK,TRIM2#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-0D050-C1iNSP131201711

EU BLACK,TRIM2#

sub64746-0D050¥1,620

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main63395-12150iNSP131¥170201711

64771GCOVER, SPARE WHEEL

main64771-0D150-B0iNSP131201711

DARK GRAY,TRIM2#

64993BOX, DECK FLOOR, REAR

main64993-0D040iNSP131¥9,500201711

9015950322

main90159-50322¥70

9015950323

main90159-50323¥70

90159W0004

main90159-W0004

9018905079

main90189-05079¥110

15 parts on this diagram · 2 diagrams in section
