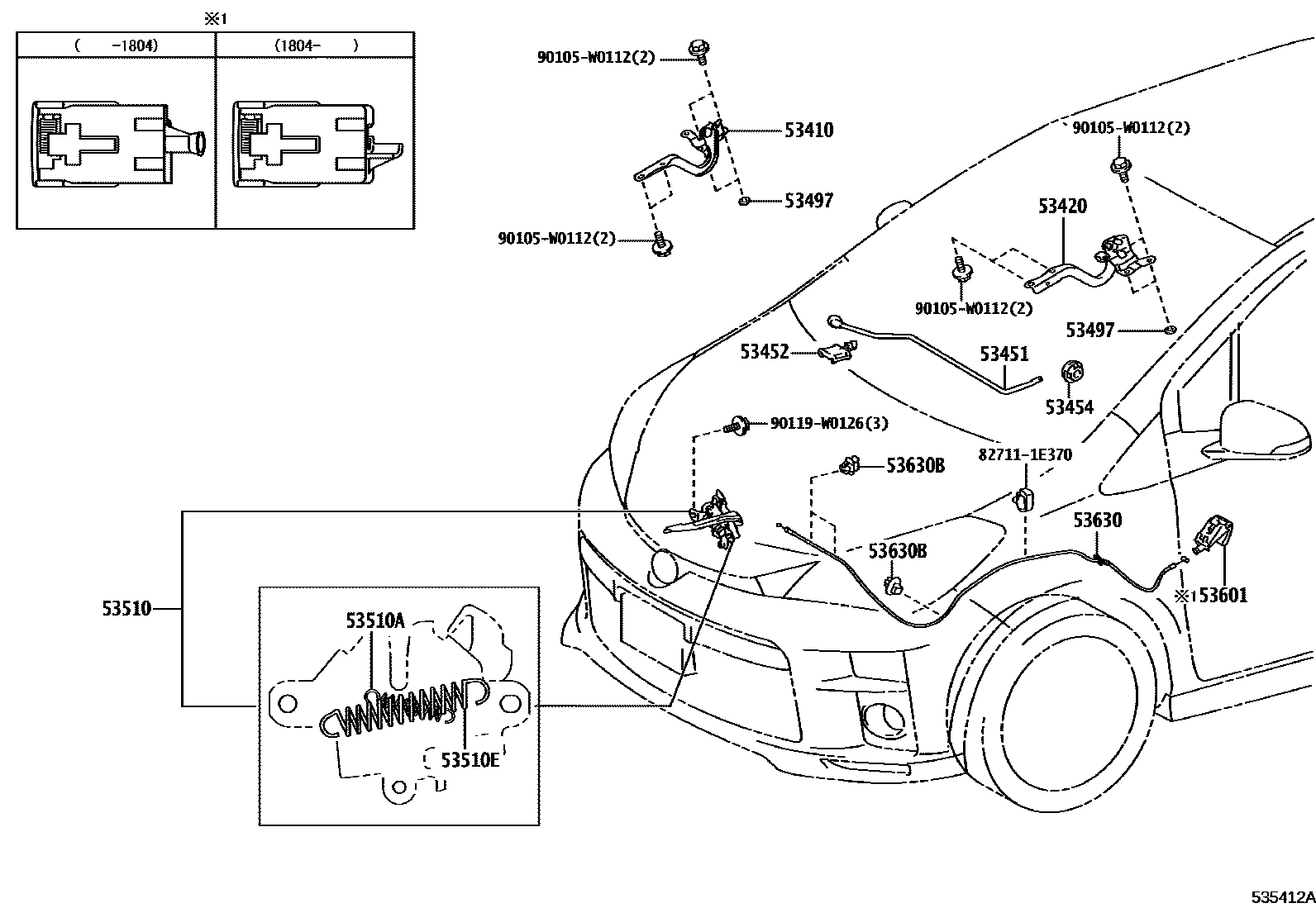

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-0D320iNSP131201711

53420HINGE ASSY, HOOD, LH

main53420-0D320iNSP131201711

53451ROD, HOOD SUPPORT

main53440-0D100iNSP131201711

53452HOLDER, HOOD STAY

main53452-0D010iNSP131201711

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNSP131201711

53497PAD, HOOD HINGE, NO.1

main53497-05010iNSP131201711

T=1.0

53510LOCK ASSY, HOOD

main53510-0D290iNSP131..RHD201711

main53510-0D300iNSP131..LHD201711

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-W0004iNSP131..RHD201711

WD=1.0,CW=15.5

main90506-W0005iNSP131..LHD201711

WD=1.0,CW=24

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-W0006iNSP131201711

WD=1.6,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C1iNSP131201711-201804

EU BLACK,TRIM2#

sub53601-05030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52120iNSP131201711

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP131201711

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

90105W0112

main90105-W0112

90119W0126

main90119-W0126

15 parts on this diagram · 2 diagrams in section
