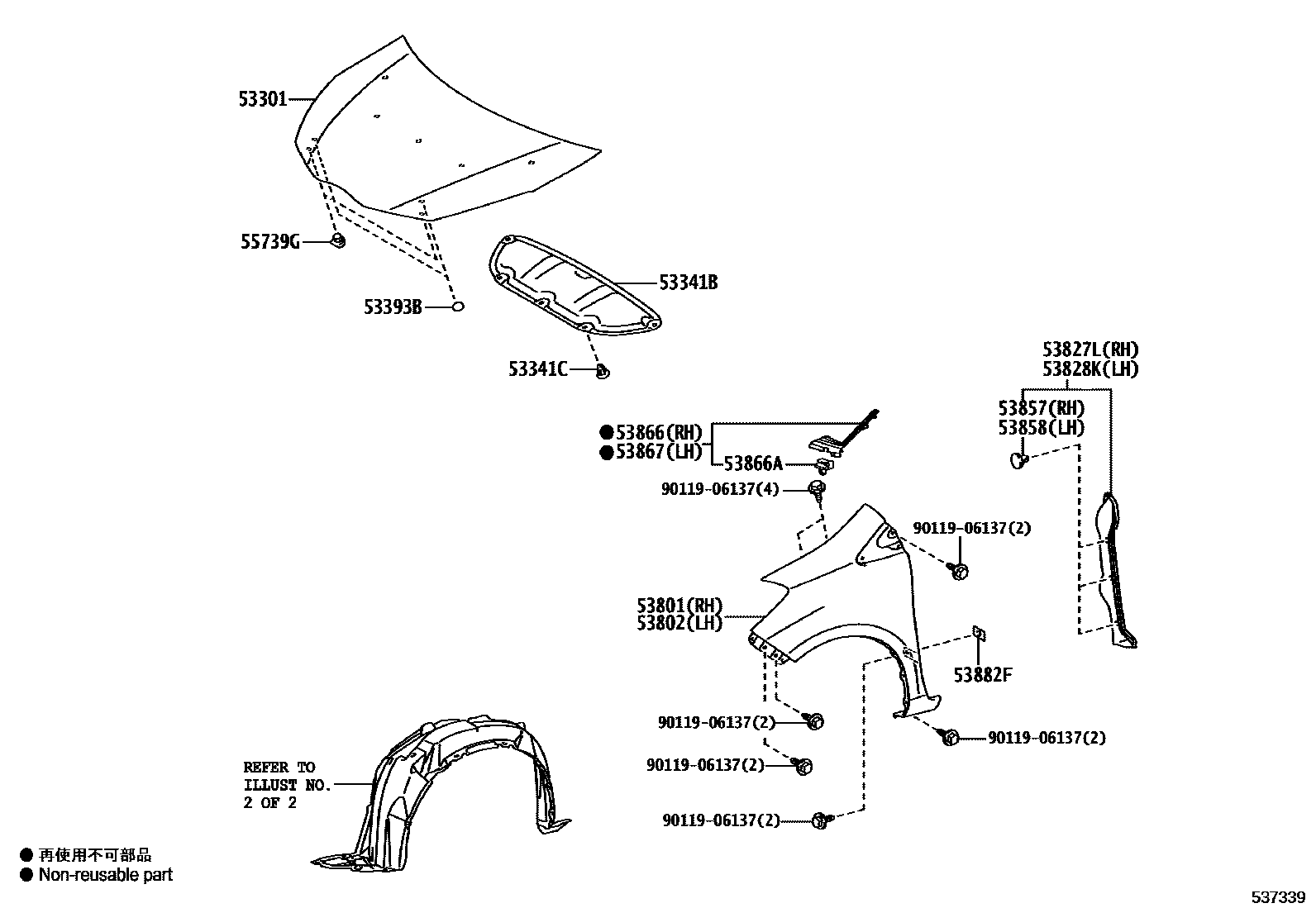

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0D130iNSP131201711

53341BINSULATOR, HOOD

main53341-0D150iNSP131201711

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNSP131201711

53393BPROTECTOR, HOOD, FRONT

main90950-06124iNSP131201711

53801FENDER SUB-ASSY, FRONT RH

main53811-52390iNSP131201711

53802FENDER SUB-ASSY, FRONT LH

main53812-52360iNSP131201711

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D270iNSP131201711

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D270iNSP131201711

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNSP131201711

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNSP131201711

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D210iNSP131201711

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main55799-52020iNSP131201711

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D210iNSP131201711

53882FSEAL, FRONT FENDER

main53882-16030iNSP131201711

55739GSTOPPER, HOOD

main55738-52060iNSP131201711

9011906137

main90119-06137

16 parts on this diagram · 2 diagrams in section
