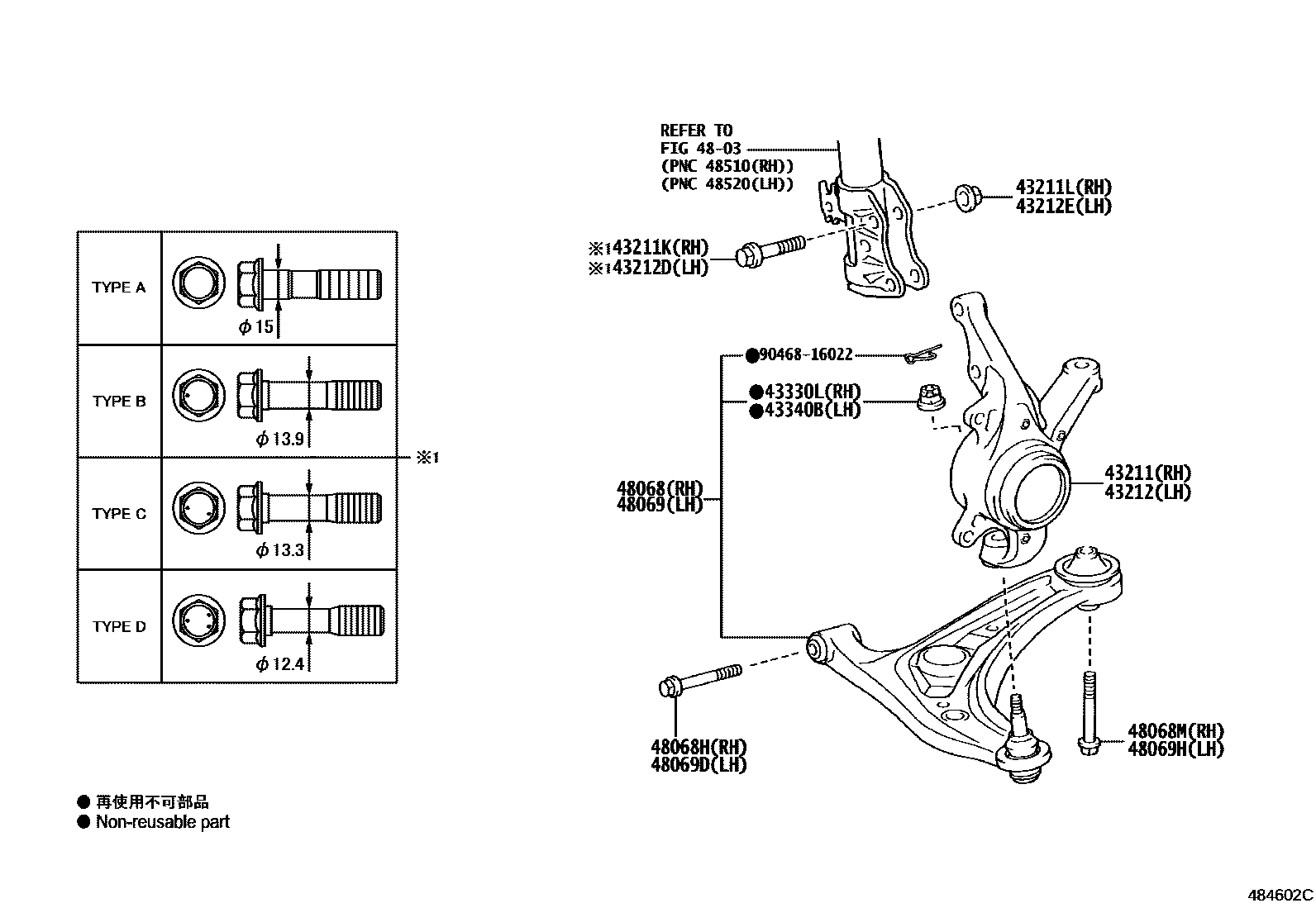

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0D230iNSP131201711

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-W0118iNSP131201711

OD=15,(L),TYPE A:REF ILL.

main90109-15001iNSP131201711

OD=15,(J),TYPE A:REF ILL.

main90109-15002iNSP131201711

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP131201711

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP131201711

OD=12.4,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004iNSP131201711

43212KNUCKLE, STEERING, LH

main43212-0D230iNSP131201711

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-W0118iNSP131201711

OD=15,(L),TYPE A:REF ILL.

main90109-15001iNSP131201711

OD=15,(J),TYPE A:REF ILL.

main90109-15002iNSP131201711

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003iNSP131201711

OD=13.3,TYPE C:REFER ILLUST.

main90109-15004iNSP131201711

OD=12.4,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004iNSP131201711

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNSP131201711

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNSP131201711

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-W9005iNSP131201711

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086iNSP131201711

(J)

main90119-W0086iNSP131201711

(L)

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14151iNSP131201711

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-W9005iNSP131201711

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086iNSP131201711

(J)

main90119-W0086iNSP131201711

(L)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14151iNSP131201711

9046816022

main90468-16022

16 parts on this diagram · 1 diagram in section
