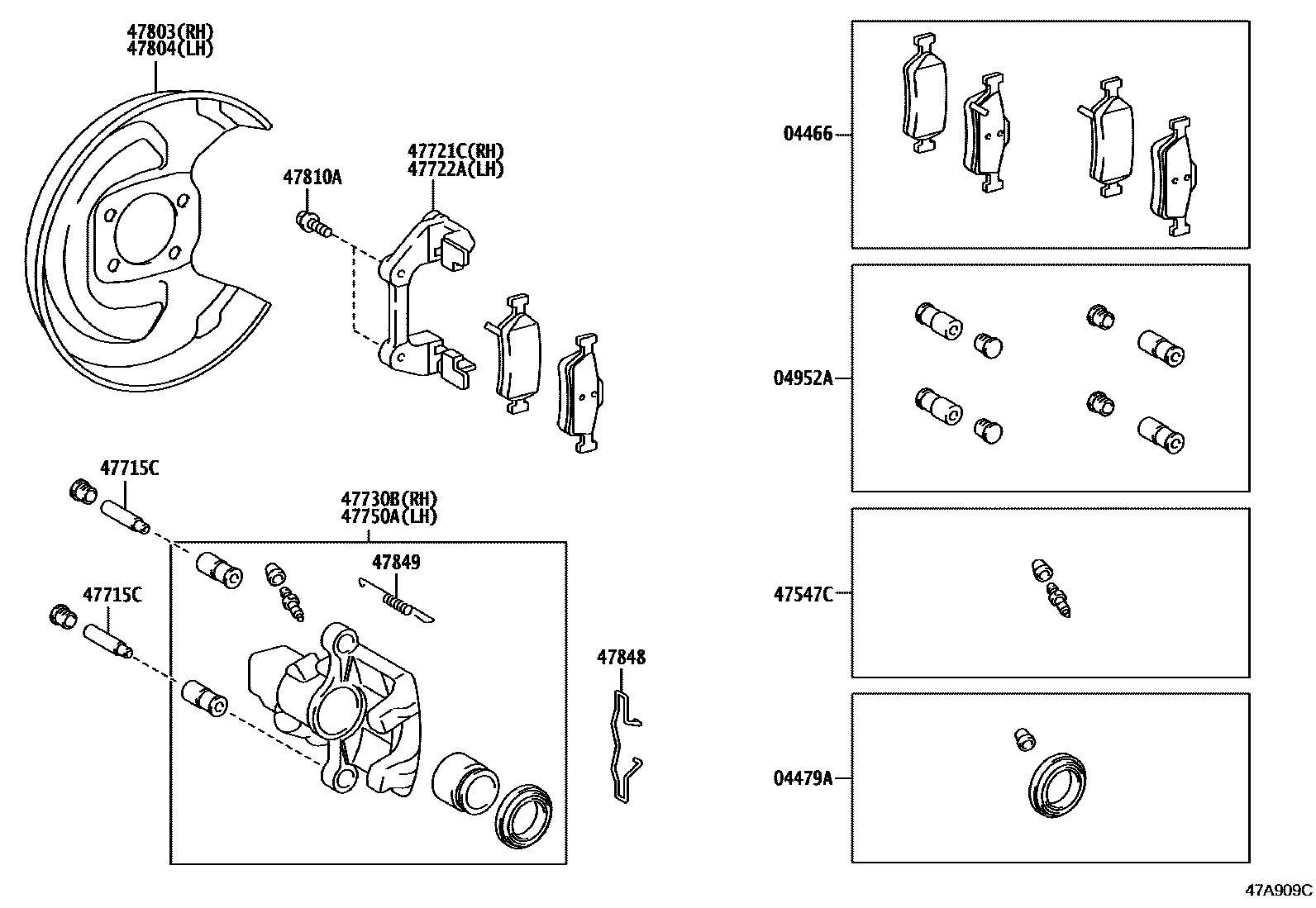

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0D010iNSP131¥5,700201711

MARK GALFER 4800

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0D040iNSP131¥680201711

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04951-05010iNSP131¥2,050201711

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-09050iNSP131¥380201711

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-05010iNSP131¥460201711

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0D020iNSP131¥5,800201711

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-0D020iNSP131¥5,800201711

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-0D070iNSP131¥86,100201711

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0D070iNSP131¥86,100201711

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-0D050iNSP131¥1,640201711

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-0D050iNSP131¥1,640201711

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-W0117iNSP131¥110201711

47848SPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47848-0D020iNSP131¥530201711

47849SPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47843-0D020iNSP131¥530201711

14 parts on this diagram · 1 diagram in section
