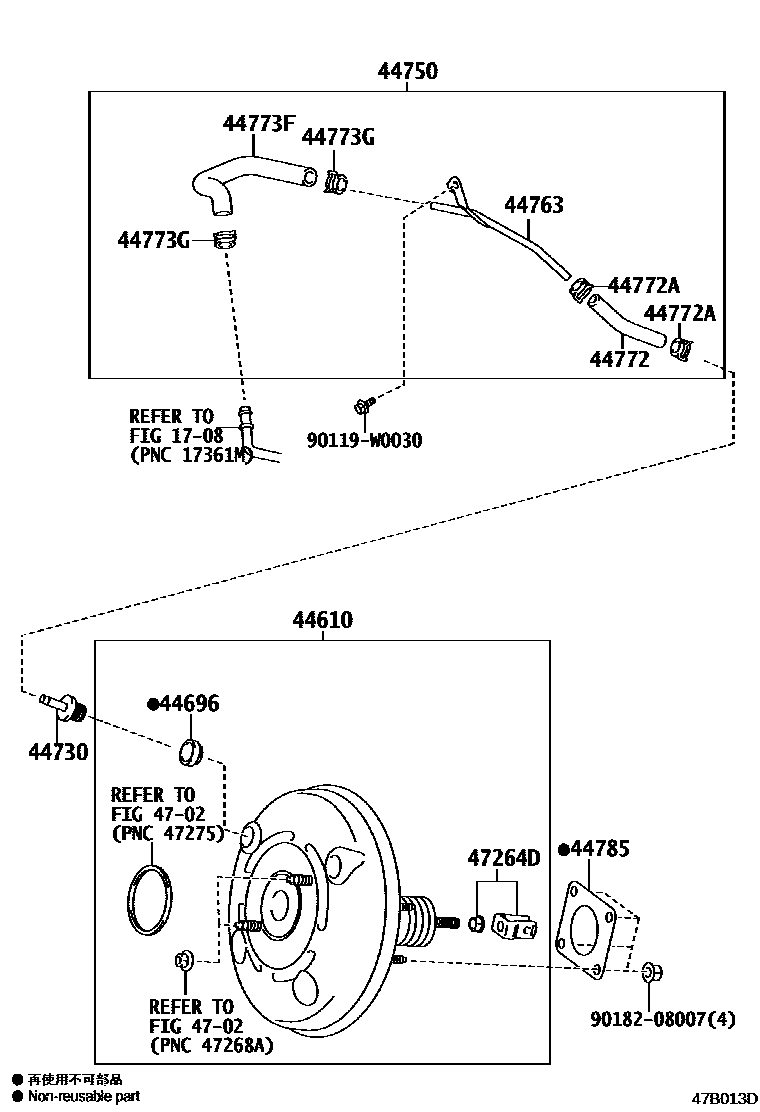

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1708

44610BOOSTER ASSY, BRAKE

main44610-09F40iNSP131..LHD201711

main44610-52J20iNSP131..RHD¥77,500201711

44696GROMMET, CHECK VALVE

main44692-0D020iNSP131..LHD201711

main90480-24439iNSP131..RHD¥390201711

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-0D010iNSP131..LHD201711

main44730-20170iNSP131..RHD¥1,310201711

44750HOSE ASSY, VACUUM

main44750-52620iNSP131..LHD201711

main44750-52670iNSP131..RHD¥1,520201711

44763TUBE, BOOSTER VACUUM

main44763-52190iNSP131..LHD201711

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-52340iNSP131..LHD201711

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500iNSP131..LHD¥140201711

44773FHOSE, UNION TO CHECK VALVE

main44773-52280iNSP131..LHD201711

main44773-52290iNSP131..RHD¥1,480201711

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main96133-41500iNSP131¥140201711

44785GASKET, BRAKE BOOSTER

main44785-16020iNSP131¥220201711

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47262-09010iNSP131..LHD201711

main47264-52040iNSP131..RHD¥210201711

90119W0030

main90119-W0030¥60

9018208007

main90182-08007¥100

15 parts on this diagram · 2 diagrams in section
