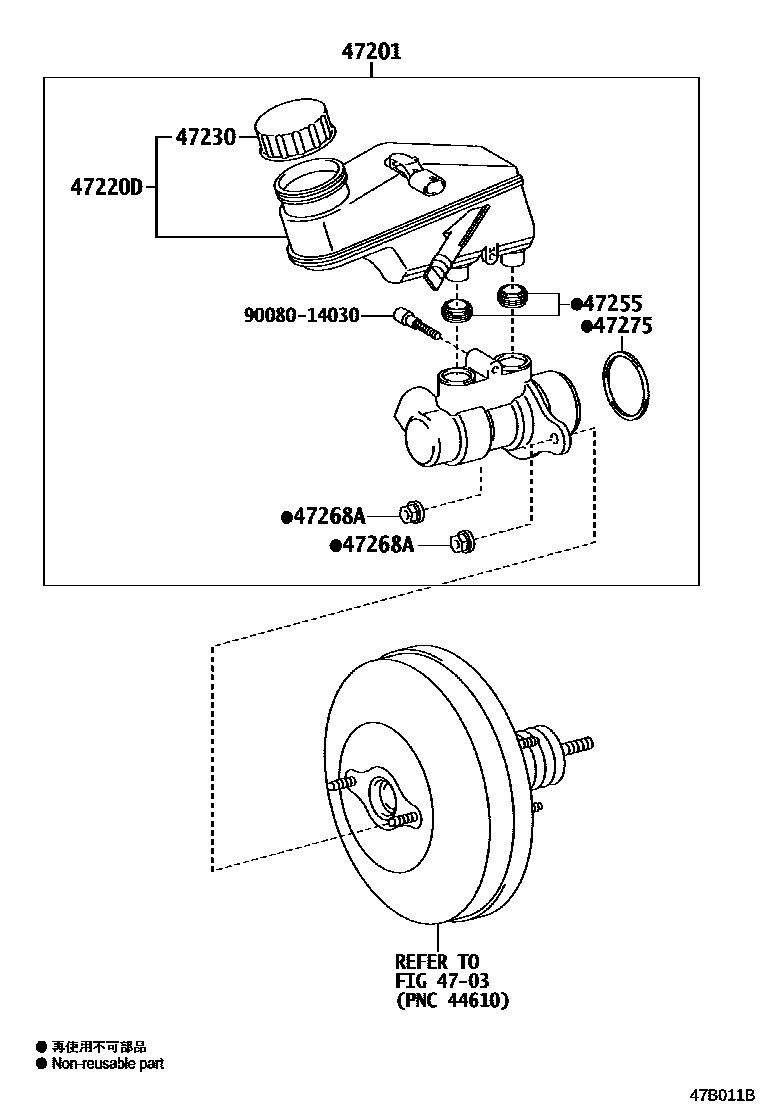

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09650iNSP131..LHD201711

main47201-52820iNSP131..RHD201711

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D080iNSP131..LHD201711

main47220-52320iNSP131..RHD201711

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D060iNSP131..LHD201711

main47230-20140iNSP131..RHD201711

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09030iNSP131..LHD201711

main90029-48001iNSP131..RHD201711

sub90016-AT001

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iNSP131..LHD201711

47275GASKET, BRAKE MASTER CYLINDER

main47275-0D020iNSP131..LHD201711

9008014030

main90080-14030

8 parts on this diagram · 2 diagrams in section
