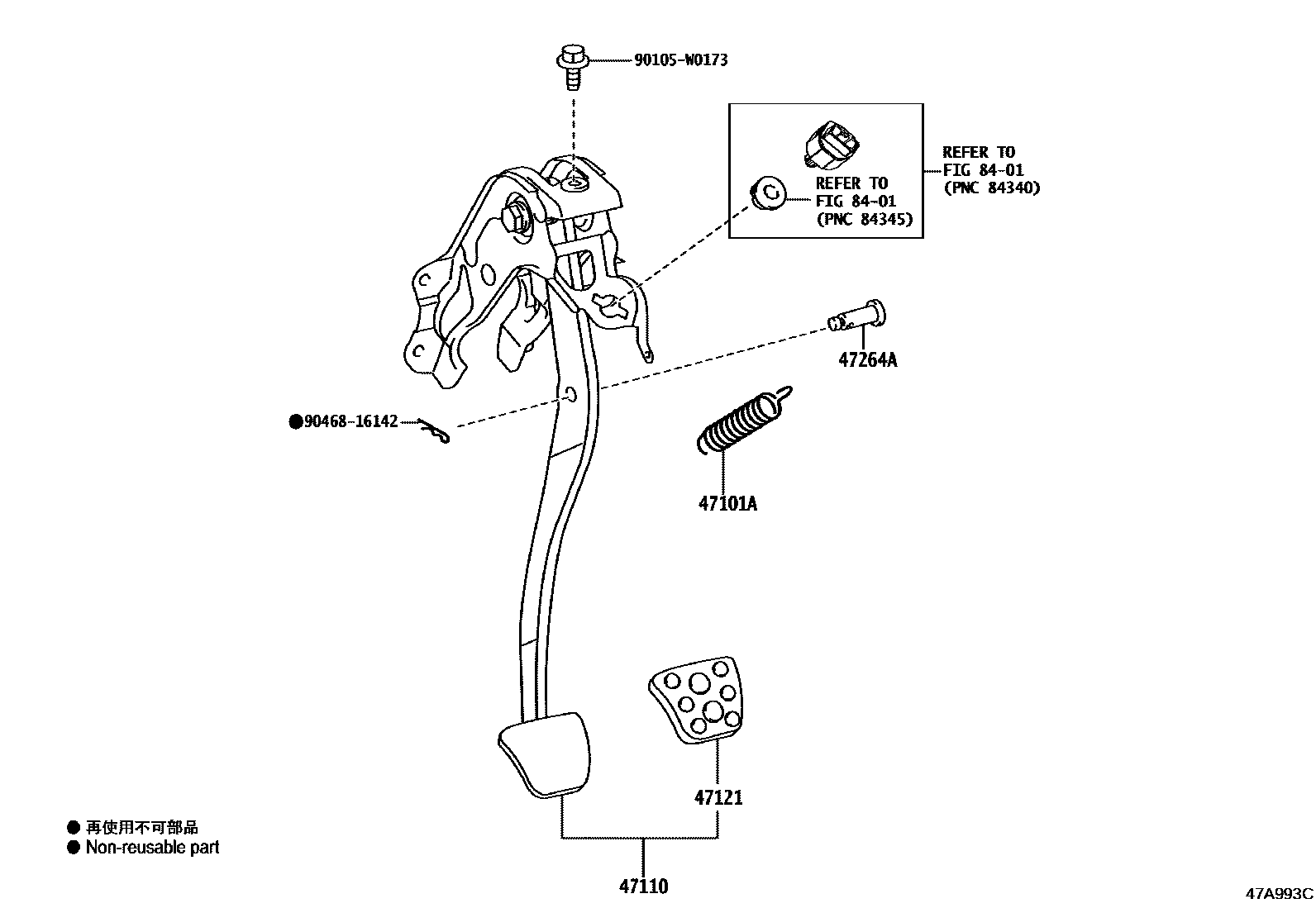

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP131201711

47110SUPPORT ASSY, BRAKE PEDAL

main47110-52510iNSP131..LHD201711

main47110-WY011iNSP131..RHD201711

47121PAD, BRAKE PEDAL

main31321-WY010iNSP131201711

47264APIN(FOR PUSH ROD)

main90249-08051iNSP131201711

8401

90105W0173

main90105-W0173

9046816142

main90468-16142

7 parts on this diagram · 1 diagram in section
