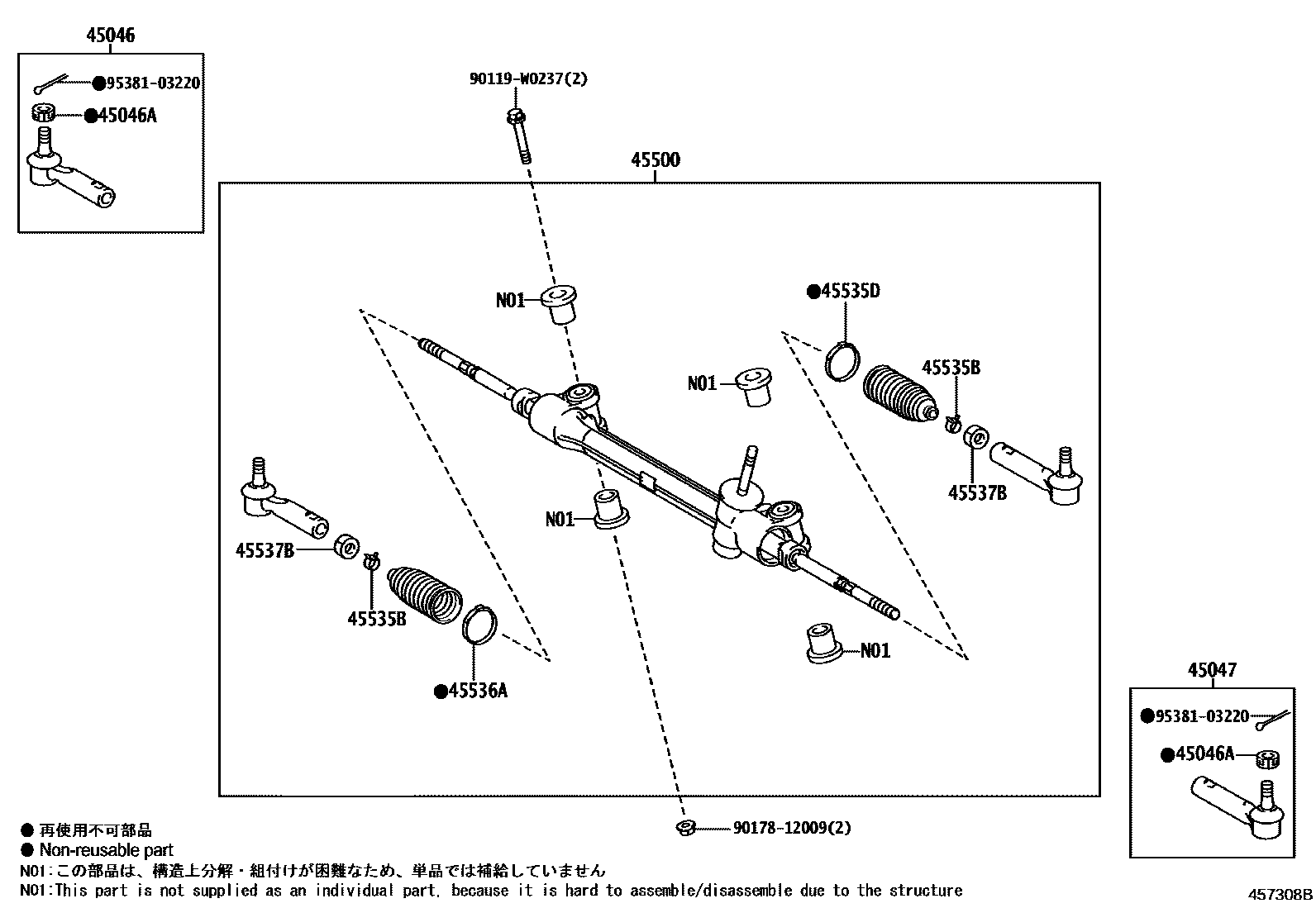

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09860iNSP131¥2,920201711

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNSP131¥130201711

45047END SUB-ASSY, TIE ROD, LH

main45046-09860iNSP131¥2,920201711

45500LINK ASSY, STEERING

main45500-0D280iNSP131..LHD201711

main45500-0D310iNSP131..RHD¥39,500201711

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050iNSP131¥270201711

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iNSP131¥290201711

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iNSP131¥290201711

45537BNUT, RACK END LOCK

main90178-15003iNSP131¥120201711

90119W0237

main90119-W0237¥400

9017812009

main90178-12009¥120

9538103220

main95381-03220¥70

11 parts on this diagram · 2 diagrams in section
