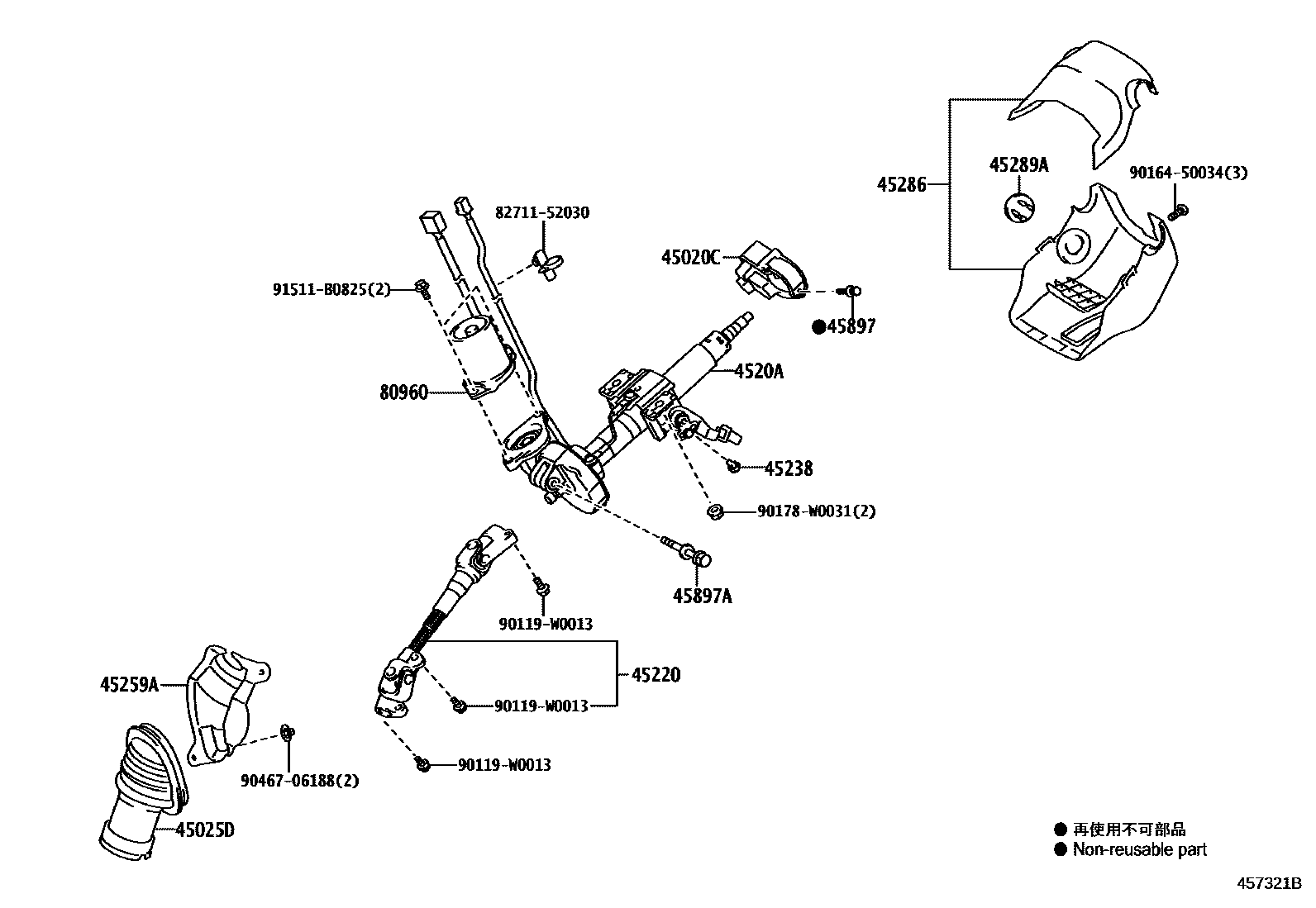

STEERING COLUMN & SHAFT

0001 1 0002 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNSP131¥14,900201711-201804

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D062iNSP131¥3,290201711

sub45025-0D061

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D061iNSP131..LHD201711

main4520A-0D081iNSP131..RHD¥64,100201711

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D010iNSP131..LHD201711

main45220-0D020iNSP131..RHD¥13,800201711

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP131¥70201711

45259ASHEET, COLUMN HOLE COVER SILENCER

main45255-0D100iNSP131..LHD201711

main45255-0D120iNSP131..RHD¥1,360201711

45286COVER, STEERING COLUMN

main45286-0D915-C1iNSP131201711

EU BLACK

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D050-C1iNSP131201711

EU BLACK

45897BOLT, STEERING LOCK SET

main45897-12020iNSP131¥210201711

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iNSP131¥190201711

80960MOTOR ASSY, POWER STEERING

main80960-0D180iNSP131..RHD¥21,500201711

main80960-0D200iNSP131..LHD201711

8271152030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52030¥210

90119W0013

main90119-W0013¥130

9016450034

main90164-50034¥70

90178W0031

main90178-W0031¥100

9046706188

main90467-06188¥160

91511B0825

main91511-B0825¥140

17 parts on this diagram · 2 diagrams in section
