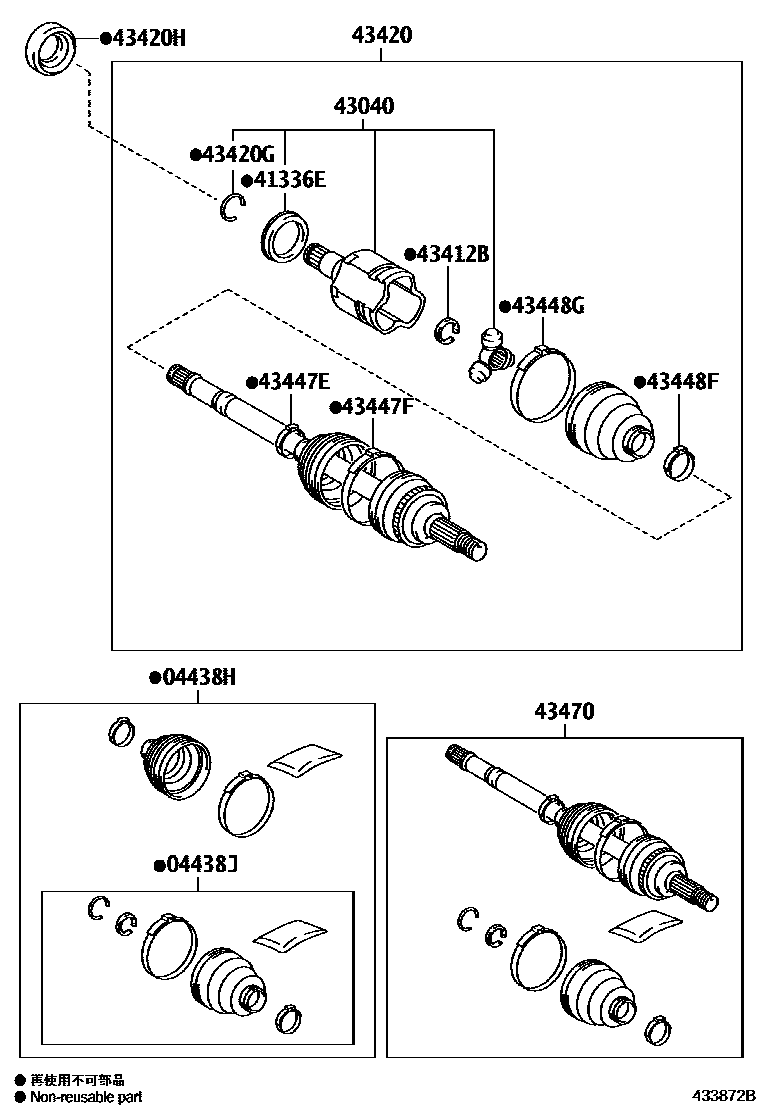

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04427-0D300iNSP131¥17,800201711

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04437-0D220iNSP131¥5,500201711

41336ECOVER, FRONT DRIVE SHAFT DUST, LH

main41336-05140iNSP131¥380201711

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-0D020iNSP131¥22,000201711

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main90080-52093iNSP131¥120201711

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-0D690iNSP131¥119,000201711

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90080-52055iNSP131¥90201711

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-35075iNSP131¥470201711

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0D260iNSP131¥330201711

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-0D250iNSP131¥570201711

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-02240iNSP131¥260201711

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-0D850iNSP131¥360201711

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43470-8Z282iNSP131¥78,900201711

13 parts on this diagram · 3 diagrams in section
