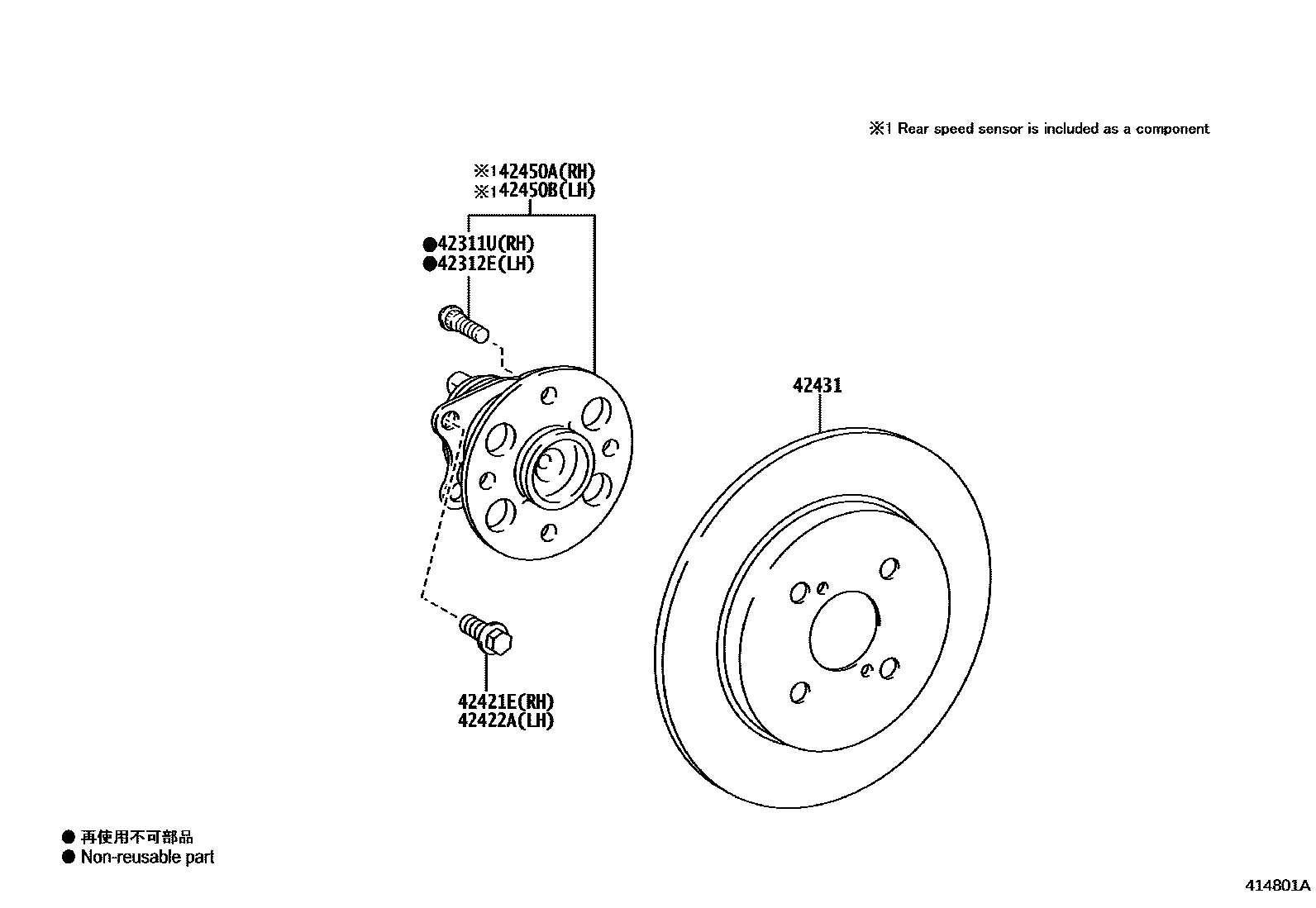

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNSP131201711

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNSP131201711

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNSP131201711

(J)

main90105-W0164iNSP131201711

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNSP131201711

(J)

main90105-W0164iNSP131201711

(L)

42431DISC, REAR

main42431-0D060iNSP131201711

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0D051iNSP131201711

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0D051iNSP131201711

7 parts on this diagram · 1 diagram in section
