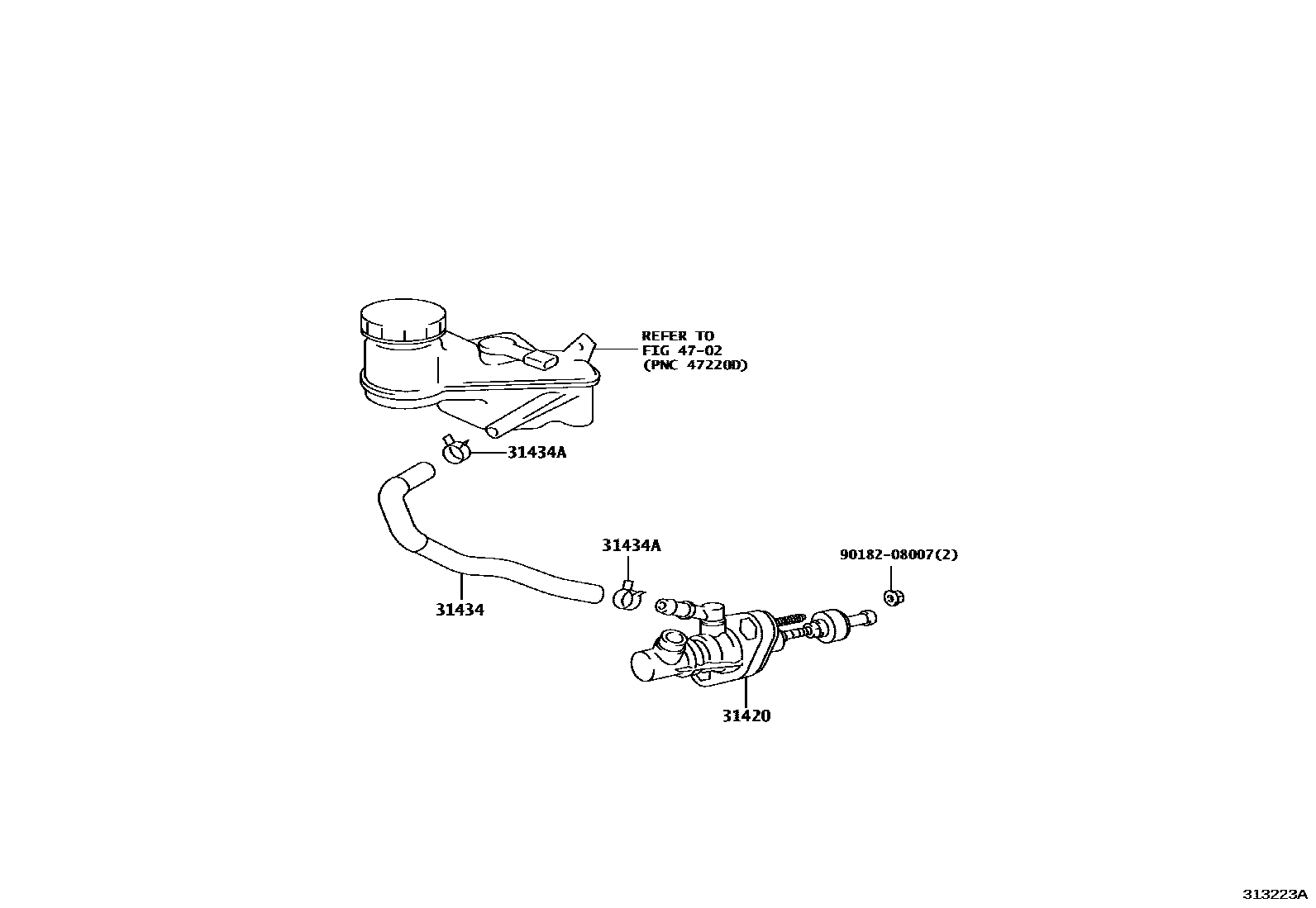

CLUTCH MASTER CYLINDER

0001 1 0002 1

31420CYLINDER ASSY, MASTER W/O RESERVOIR

main31420-0D160iNSP131..LHD201711

main31420-52050iNSP131..RHD201711

31434TUBE, CLUTCH RESERVOIR

main31434-52180iNSP131..LHD201711

main31434-52200iNSP131..RHD201711

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96136-41801iNSP131..LHD201711

main96137-41501iNSP131..RHD201711

4702

9018208007

main90182-08007

5 parts on this diagram · 2 diagrams in section
