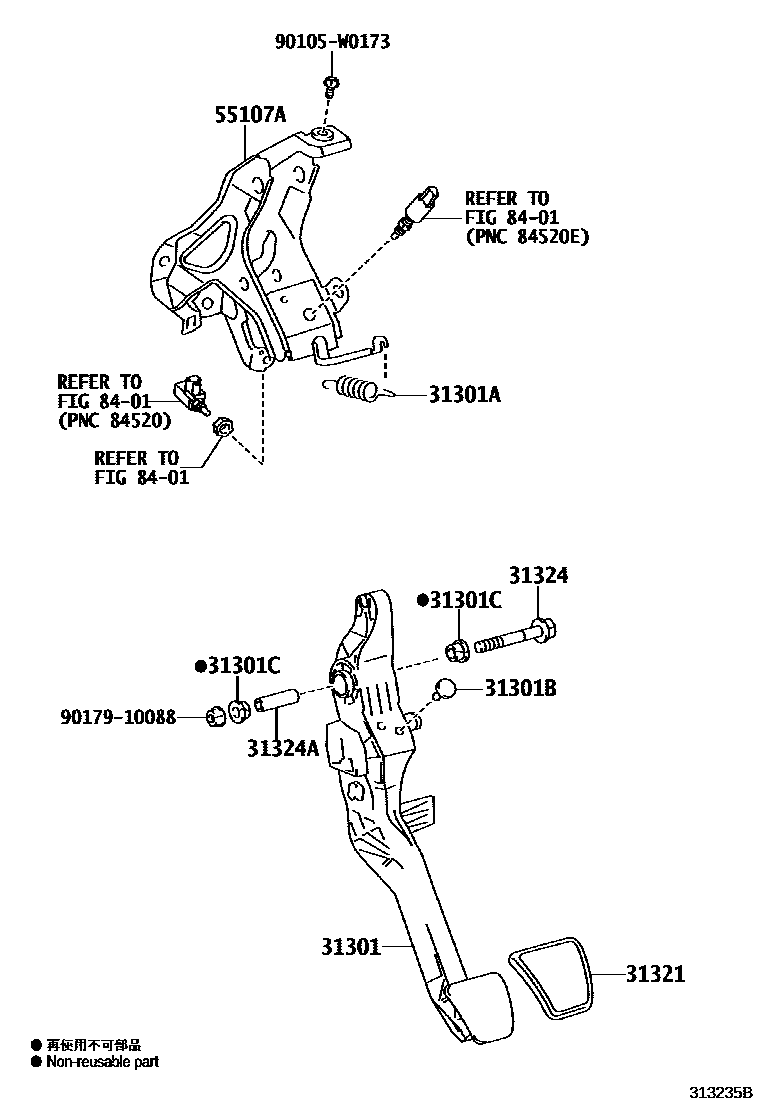

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D160iNSP131..RHD201711

main31311-0D110iNSP131..LHD201711

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iNSP131..LHD201711

main90507-14055iNSP131..RHD201711

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP131201711

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNSP131201711

31321PAD, CLUTCH PEDAL

main31321-WY010iNSP131201711

31324SHAFT, CLUTCH PEDAL

main90105-10444iNSP131..RHD201711

main90105-10563iNSP131..LHD201711

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iNSP131..RHD201711

main90387-10004iNSP131..LHD201711

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D180iNSP131..LHD201711

main55107-0D230iNSP131..RHD201711

8401

90105W0173

main90105-W0173

9017910088

main90179-10088

11 parts on this diagram · 4 diagrams in section
