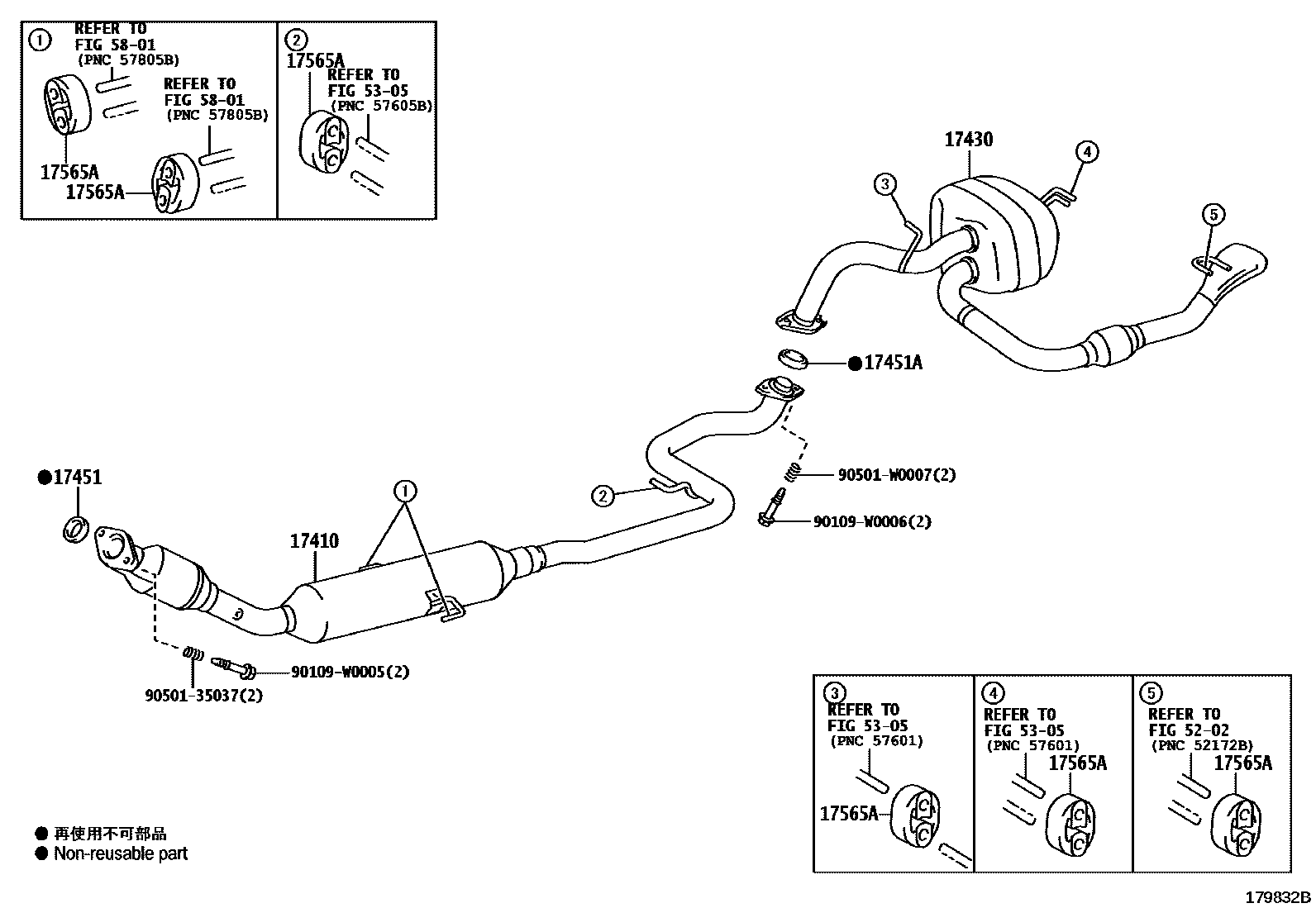

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37C10i2ZRFE..NSP131201711

*114=TOYOTA/RT5/Y

17430PIPE ASSY, EXHAUST, TAIL

main17430-37780i2ZRFE..NSP131201711

17451GASKET, EXHAUST PIPE

main17451-0R010i2ZRFE..NSP131201711

17451AGASKET, EXHAUST PIPE, NO.2

main17451-28022i2ZRFE..NSP131201711

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0Q030i2ZRFE..NSP131201711

5202

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135037

main90501-35037

90501W0007

main90501-W0007

12 parts on this diagram · 1 diagram in section
