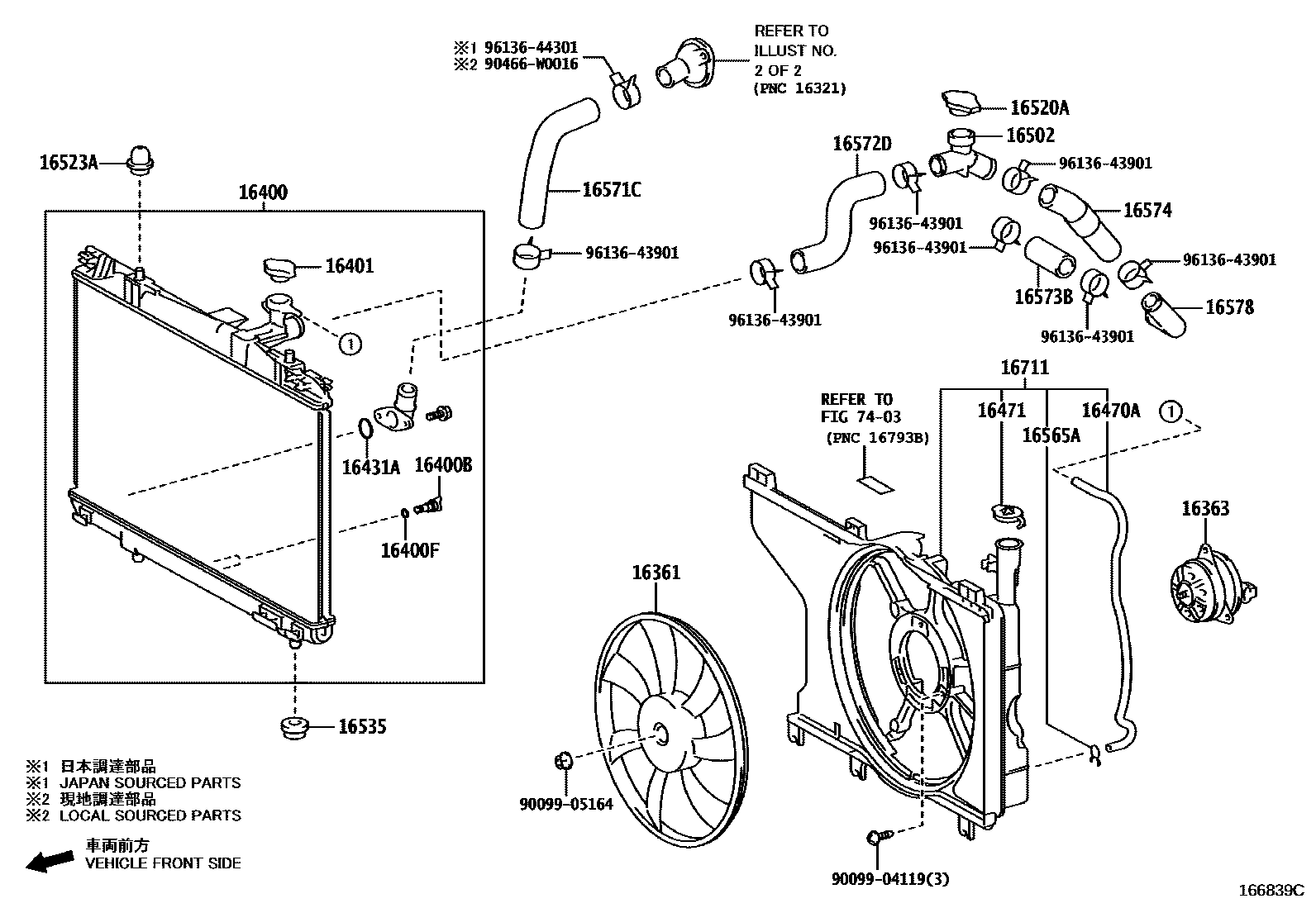

RADIATOR & WATER OUTLET

0001 1 0002 1

16361FAN

main16361-0Y250i2ZRFE..NSP131¥5,800201711

16363MOTOR, COOLING FAN

main16363-0G051i2ZRFE..NSP131¥23,400201711

16400RADIATOR ASSY

main16400-0T561i2ZRFE..NSP131¥30,500201711

16400BPLUG, RADIATOR DRAIN COCK

main16417-0Q040i2ZRFE..NSP131¥480201711-201804

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i2ZRFE..NSP131¥210201711-201804

16401CAP SUB-ASSY, RADIATOR

main16401-36020i2ZRFE..NSP131¥910201711-201804

16431ARING, O(FOR RADIATOR WATER INLET)

main16492-0Y070i2ZRFE..NSP131201711-201804

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16378-0Y110i2ZRFE..NSP131¥1,230201711

16471CAP SUB-ASSY, RESERVE TANK

main16471-23030i2ZRFE..NSP131¥0201711

16502FILLER SUB-ASSY, WATER

main16502-37030i2ZRFE..NSP131¥2,210201711

16520ACAP SUB-ASSY, WATER FILLER

main16401-30020i2ZRFE..NSP131¥910201711-201804

16523ACUSHION, RADIATOR SUPPORT

main16523-0Q020i2ZRFE..NSP131201711

16535SUPPORT, RADIATOR, LOWER

main90480-W0005i2ZRFE..NSP131201711

16565ACLIP

main90467-11085i2ZRFE..NSP131¥100201711

16571CHOSE, RADIATOR, NO.1

main16571-37250i2ZRFE..NSP131¥1,340201711

16572DHOSE, RADIATOR, NO.2

main16572-37230i2ZRFE..NSP131¥1,340201711

16573BHOSE, RADIATOR, NO.3

main16573-37100i2ZRFE..NSP131¥480201711

16574HOSE, RADIATOR, NO.4

main16574-37030i2ZRFE..NSP131¥1,340201711

16578PIPE, RADIATOR, NO.2

main16578-37020i2ZRFE..NSP131¥2,490201711

16711SHROUD, FAN

main16711-0T350i2ZRFE..NSP131¥13,700201711

7403

9009904119

main90099-04119

9009905164

main90099-05164¥0

90466W0016

main90466-W0016

9613643901

main96136-43901¥240

9613644301

main96136-44301¥310

26 parts on this diagram · 2 diagrams in section
