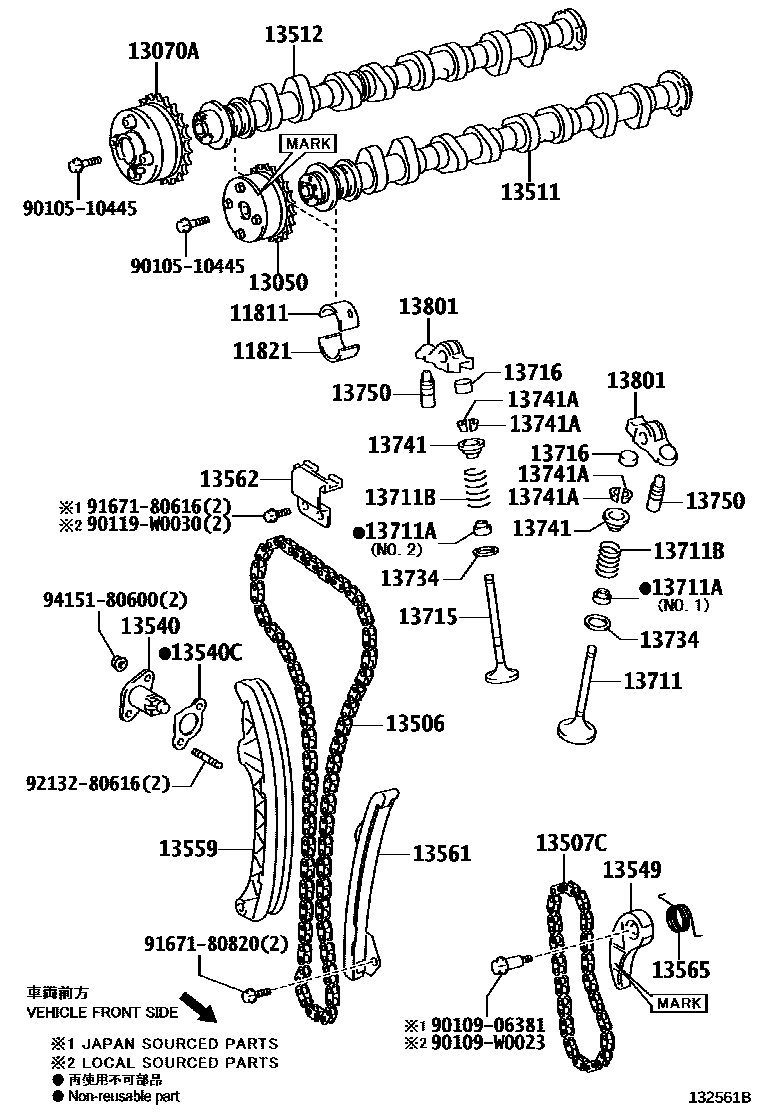

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
11821BEARING, CAMSHAFT, NO.2
13050GEAR ASSY, CAMSHAFT TIMING
MARK=13050-0T080
W/O MARK
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
(L)
(J)
13507CCHAIN SUB-ASSY, OIL PUMP DRIVE
13511CAMSHAFT
(L)
13512CAMSHAFT, NO.2
(L)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
(L)
(J)
13549PLATE, CHAIN TENSIONER
MARK=UK
W/O MARK
13559SLIPPER, CHAIN TENSIONER
MADE IN EUROPE
MADE IN JAPAN
13561DAMPER, CHAIN VIBRATION, NO.1
MARK=UK
W/O MARK
13562DAMPER, CHAIN VIBRATION, NO.2
MARK=UK
W/O MARK
13565SPRING, CHAIN DAMPER
(L)
(J)
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
(L),NO.1
(L),NO.2
(J),NO.1
(J),NO.2
13711BSPRING, COMPRESSION(FOR INNER)
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13750ADJUSTER ASSY, VALVE LASH
(L)
(J)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
9010510445
main90105-10445
9010906381
main90109-06381
90109W0023
main90109-W0023
90119W0030
main90119-W0030
9167180616
main91671-80616
9167180820
main91671-80820
9213280616
main92132-80616
9415180600
main94151-80600
33 parts on this diagram · 1 diagram in section
