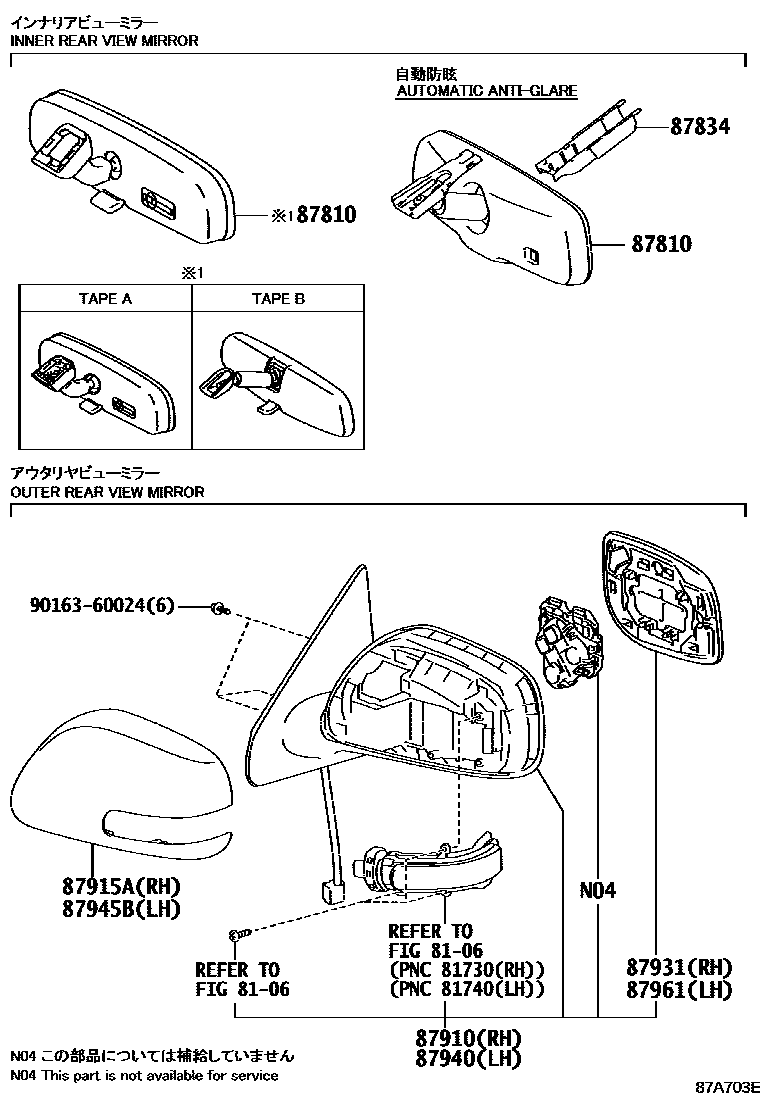

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
TYPE A
TYPE B
SOL PACKAGE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
SOL PACKAGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SOL PACKAGE
NO PAINT REQ.,SOL PACKAGE
NO PAINT REQ.,DECONTENT PACKAGE
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3R3
SUPER RED 5,3P0
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
DECONTENT PACKAGE,DEEP AMETHYST M.M.,9AH
87931OUTER MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SOL PACKAGE
NO PAINT REQ.,SOL PACKAGE
NO PAINT REQ.,DECONTENT PACKAGE
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
SILVER M.M.,1E7
BLACK MC.,209
RED M.M.,3R3
SUPER RED 5,3P0
BRONZE M.M.,4T3
DK.BLUE MC.,8S6
BLUE ME.,8T7
DEEP AMETHYST M.M.,9AH
DECONTENT PACKAGE,DEEP AMETHYST M.M.,9AH
87961MIRROR OUTER, LH
9016360024
main90163-60024
10 parts on this diagram · 1 diagram in section
