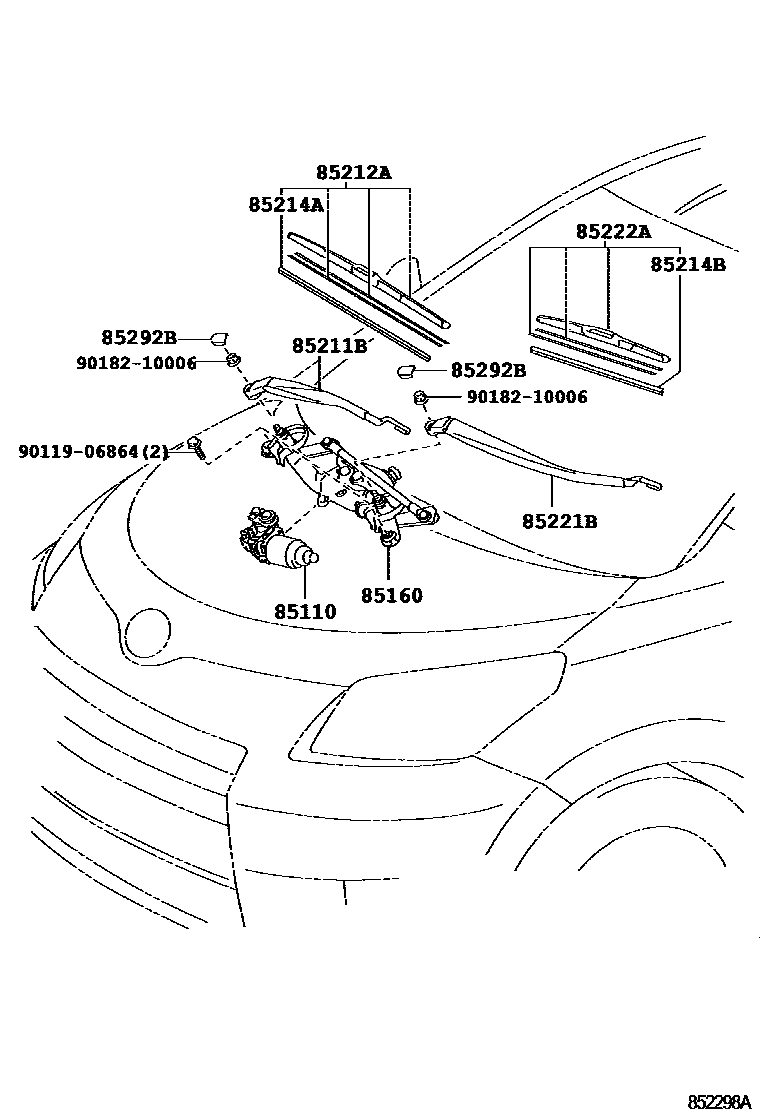

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52530iNLP11#,NSP110..RHD200901-201405

main85110-52550iNLP11#,NSP110..LHD200901

85160LINK ASSY, WINDSHIELD WIPER

main85150-52380iNLP11#,NSP110..RHD200901-201405

main85150-52390iNLP11#,NSP110..LHD200901

85211BARM, FRONT WIPER, RH

main85211-52340iNLP11#,NSP110..RHD200901-201405

main85211-52350iNLP11#,NSP110..LHD200901

85212ABLADE, FR WIPER, RH

main85212-52170iNLP11#,NSP110..RHD200901-201405

main85212-52180iNLP11#,NSP110..LHD200901

85214ARUBBER, WIPER, RH

main85214-30380iNLP11#,NSP110..RHD200901-201405

main85214-68030iNLP11#,NSP110..LHD200901

85214BRUBBER, WIPER, LH

main85214-30380iNLP11#,NSP110..LHD200901

main85214-68030iNLP11#,NSP110..RHD200901-201405

85221BARM, FRONT WIPER, LH

main85221-52320iNLP11#,NSP110..RHD200901-201405

main85221-52340iNLP11#,NSP110..LHD200901

85222ABLADE, FR WIPER, LH

main85222-52160iNLP11#,NSP110..RHD200901-201405

main85222-52180iNLP11#,NSP110..LHD200901

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iNLP11#,NSP110200901

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 2 diagrams in section
