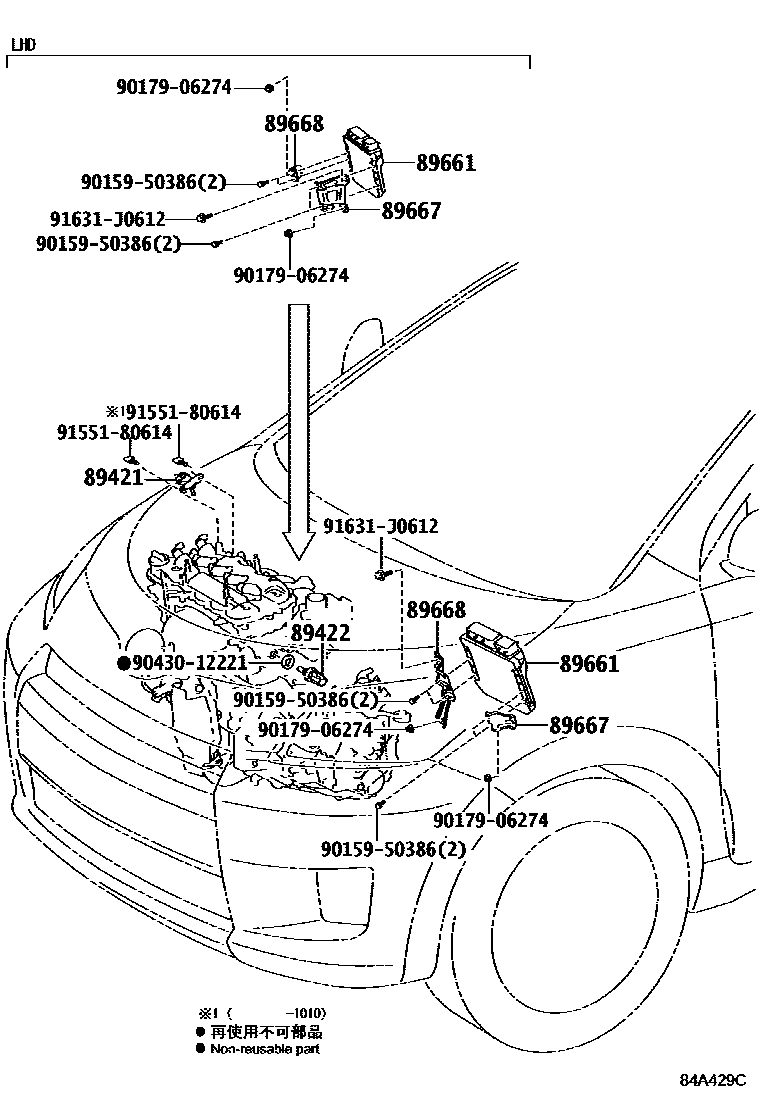

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-26030iNSP110201008-201604

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iNSP110200901

89661COMPUTER, ENGINE CONTROL

main89661-52K80iNSP110..RHD200901-201008

WITH(STOP & START SYSTEM)

main89661-52K90iNSP110..LHD200901-201008

main89661-52S50iNSP110..RHD201008-201107

WITH(STOP & START SYSTEM)

sub89661-52S51

main89661-52S51iNSP110..RHD201108-201306

WITH(STOP & START SYSTEM)

main89661-52S60iNSP110..LHD201008-201107

sub89661-52S61

main89661-52S61iNSP110..LHD201108-201306

main89661-52Z70iNSP110..RHD201306-201405

main89661-52Z80iNSP110..LHD201306

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52190iNSP110..RHD200901-201405

main89667-52200iNSP110..LHD200901

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52210iNSP110..RHD200901-201405

main89668-52220iNSP110..LHD200901

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9155180614

main91551-80614

91631J0612

main91631-J0612

10 parts on this diagram · 1 diagram in section
