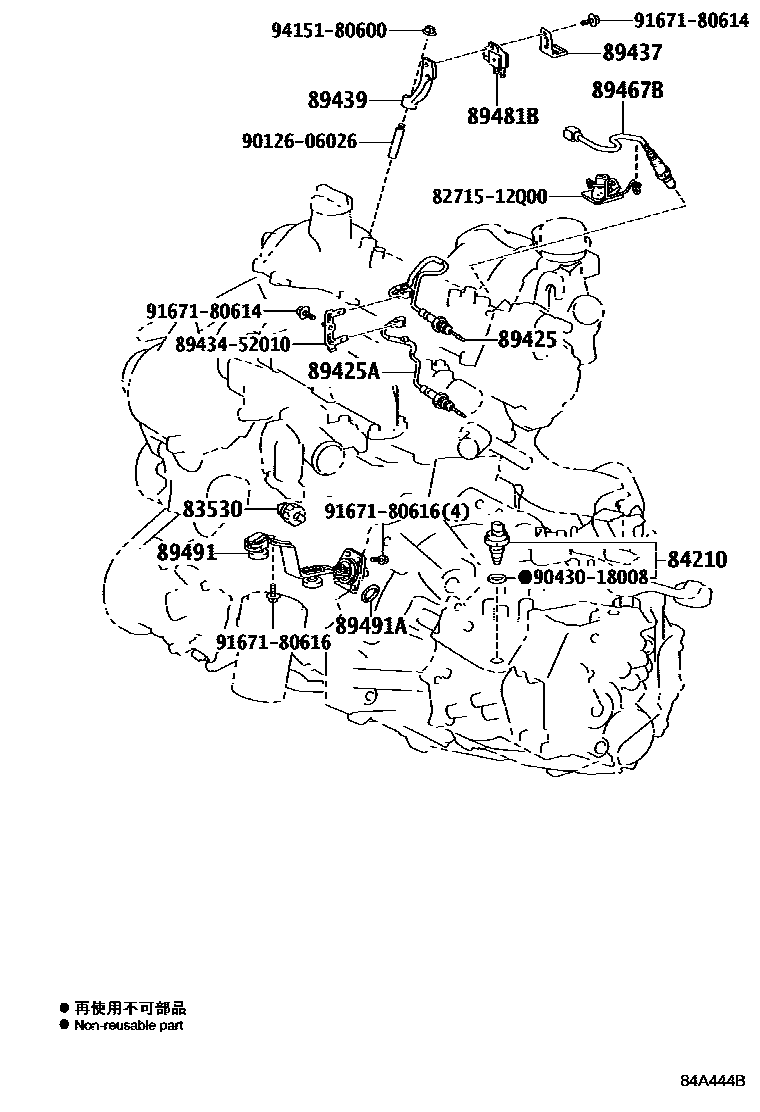

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28010iNLP11#200901-201405

DENSO

main83530-28020iNSP110200901

main83530-60010iNLP11#200901-201405

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNLP11#,NSP110200901-201204

main84210-52050iNLP11#,NSP110201205-201604

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-52010iNLP11#200901-200911

sub89425-52H00

main89425-52011iNLP11#200911-201405

89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2

main89425-52020iNLP11#200901-200911

sub89425-52H00

main89425-52021iNLP11#200911-201405

89437COVER, SENSOR

main89437-12110iNLP11#200901-201405

89439BRACKET, SENSOR

main89439-52010iNLP11#200901-201405

89467BSENSOR, AIR FUEL RATIO

main89467-02080iNLP11#201107-201405

(L)

main89467-12130iNLP11#201107-201405

(J)

main89467-12170iNLP11#200901-201106

main89467-52070iNSP110200901-201101

main89467-52090iNSP110201102

89481BSENSOR, DIFFERENTIAL PRESSURE

main89481-12050iNLP11#200901-201405

89491SENSOR, ENGINE OIL LEVEL

main89491-52040iNLP11#200901-201008

main89491-52050iNLP11#201008-201112

main89491-52051iNLP11#201112-201405

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-36005iNLP11#200901-201405

8271512Q00BRACKET,WIRING HARNESS CLAMP

main82715-12Q00

8943452010BRACKET, MANIFOLD TEMPERATURE SENSOR

main89434-52010

9012606026

main90126-06026

9043018008

main90430-18008

9167180614

main91671-80614

9167180616

main91671-80616

9415180600

main94151-80600

17 parts on this diagram · 13 diagrams in section
