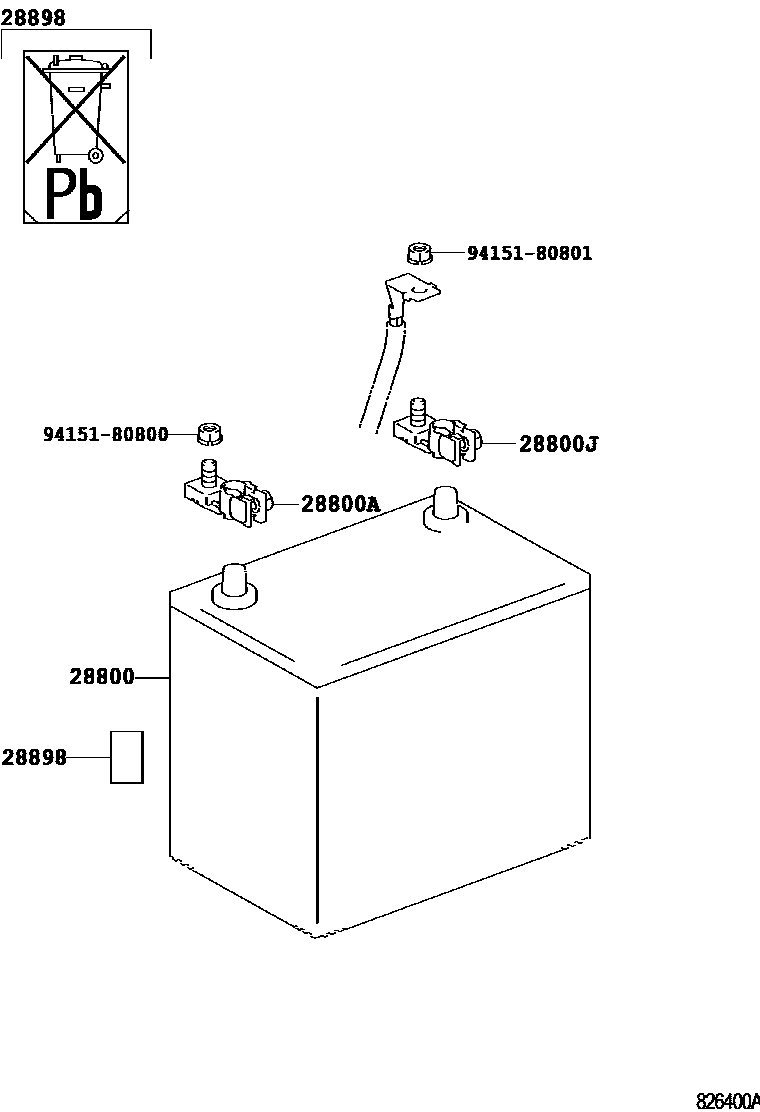

BATTERY & BATTERY CABLE

28800BATTERY

main28800-20060i1NRFE..NSP110..LHD201204

55B24L(S),FURUKAWA

sub28800-20061

main28800-22040i1NRFE..NSP110..LHD200901

46B24L(S),PANASONIC

main28800-42061i1NDTV..NLP110200901-201204

55D23L

sub28800-42062

main28800-42062i1NDTV..NLP110201205-201405

55D23L

sub28800-42063

main28800-47030i1NRFE..NSP110..RHD200901-201405

Q-55

main28800-47030i1NRFE..NSP110..LHD200901-201108

Q-55,WITH(STOP & START SYSTEM)

main28800-47060i1NRFE..NSP110..LHD201109-201208

Q-55

sub28800-47030

main28800-47060i1NRFE..NSP110..LHD201109-201208

Q-55,WITH(STOP & START SYSTEM)

sub28800-47030

main28800-54020i1NDTV..NLP115200902-201204

80D26L

sub28800-67102

main28800-67102i1NDTV..NLP115201205-201405

85D26L,COLD SPEC & WITHOUT(REAR HEATER DUCT)

sub28800-67103

main28800-67102i1NDTV..NLP115201205-201405

85D26L

sub28800-67103

main28800-67102i1NDTV..NLP115201205-201405

85D26L,COLD SPEC & WITH(REAR HEATER DUCT)

sub28800-67103

main28800-74261i1NRFE..NSP110..LHD200901-201204

46B24L(S),FURUKAWA

sub28800-20060

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i1N#..NLP11#,NSP110200901

28800JTERMINAL, BATTERY NEGATIVE

main90982-06059i1N#..NLP11#,NSP110200901

28898PLATE, BATTERY

main28898-46020i1N#..NLP11#,NSP110200901

9415180800

main94151-80800

9415180801

main94151-80801

6 parts on this diagram · 1 diagram in section
