INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-68010-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNLP11#,NSP110200901

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-05040iNLP11#,NSP110201010-201209

sub81250-02030

main81330-05021iNLP11#,NSP110200901-201010

main81330-30100iNLP11#,NSP110201210

81250BBULB, ROOM LAMP, NO.2

main90981-WE002iNLP11#,NSP110200901-201210

12V 5W

main99132-12050iNLP11#,NSP110201210

12V 5W

81260ALAMP ASSY, MAP

main81260-52030-B1iNLP11#,NSP110..R200901-201604

LT.GRAY,TRIM1#

main81260-52041-B1iNLP11#,NSP110..RHD..N200901-201107

LT.GRAY,TRIM1#

main81260-52051-B1iNLP11#,NSP110..LHD..N200901-201107

LT.GRAY,TRIM1#

main81260-52090-B0iNLP11#,NSP110..RHD..N201108-201405

LT.GRAY,TRIM1#

main81260-52100-B0iNLP11#,NSP110..LHD..N201108-201604

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2iNLP11#,NSP110200901

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-52020iNLP11#,NSP110200901

81266DLENS, MAP LAMP, NO.2

main81266-52020iNLP11#,NSP110200901

8202

8603

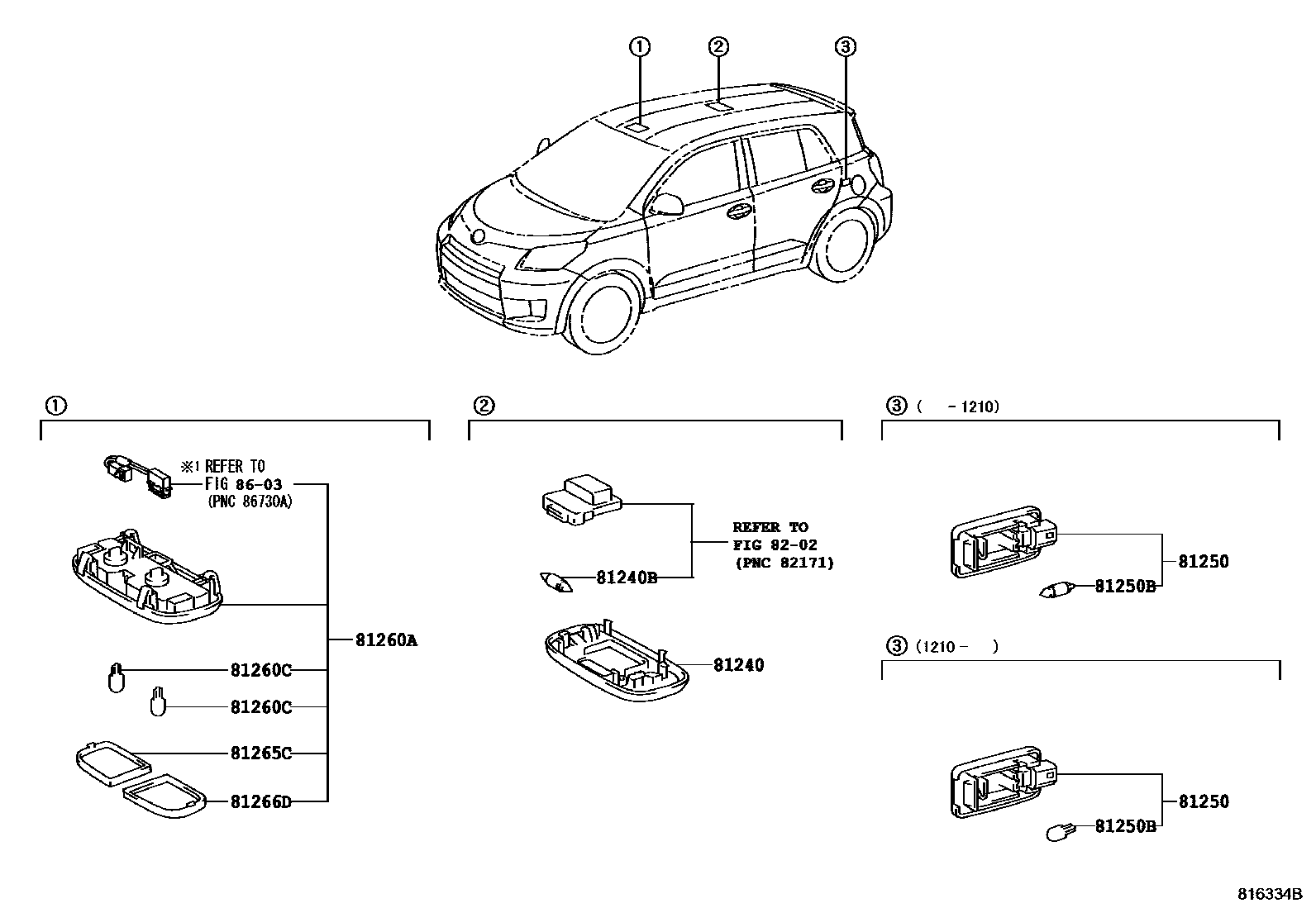

10 parts on this diagram · 1 diagram in section
