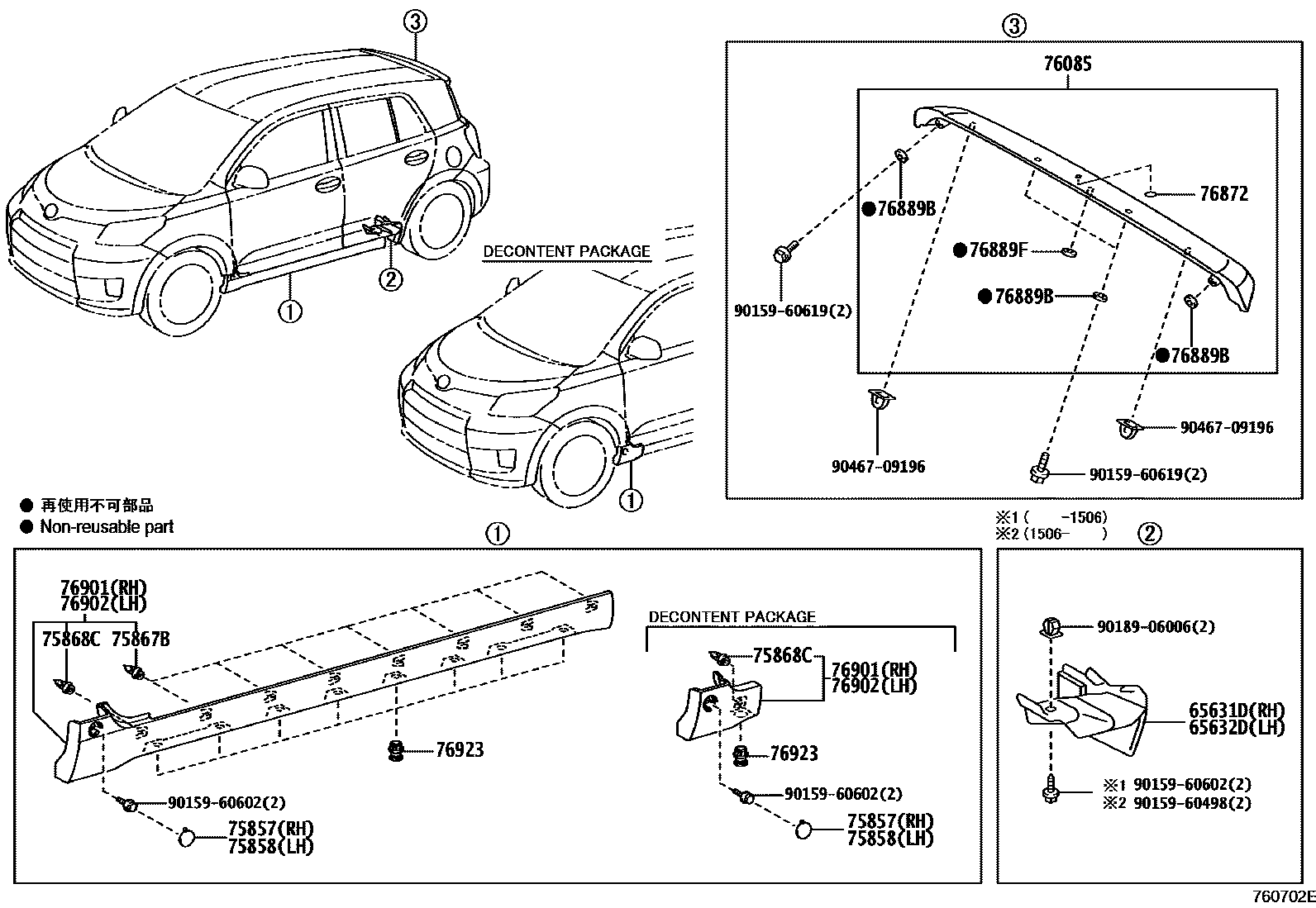

MUDGUARD & SPOILER
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75857COVER, ROCKER PANEL MOULDING, RH
75858COVER, ROCKER PANEL MOULDING, LH
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
76085SPOILER SUB-ASSY, REAR
76872PROTECTOR, REAR SPOILER, NO.1
76889BSEAL, REAR SPOILER, NO.1
76889FSEAL, REAR SPOILER, NO.1
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76923RETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9015960602
main90159-60602
9015960619
main90159-60619
9018906006
main90189-06006
9046709196
main90467-09196
18 parts on this diagram · 1 diagram in section
