BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-52080supersedes 74404-52040iNLP110;NSP110..RHD200901-201405

main74404-52100iNLP115200902-201405

74411CARRIER, BATTERY

main74410-52010iNSP110..RHD200901-201107

main74410-52011iNSP110..RHD201108-201405

main74410-52020iNSP110..LHD200901

main74410-52030iNLP11#..LHD200901-201405

main74410-52040iNLP11#..RHD200901-201405

74431TRAY, BATTERY

main74431-52110iNSP110..LHD200901-201009

WITH(STOP & START SYSTEM)

main74431-52111supersedes 74431-52101iNLP110;NSP110..RHD201010-201405

main74431-52120iNLP115200902-201009

main74431-52121iNLP115201010-201405

COLD SPEC & WITH(REAR HEATER DUCT)

74451BBOLT, BATTERY CLAMP

main74451-52070iNLP11#,NSP110200901-201204

main74451-52071iNLP11#,NSP110201205

9011908C15

main90119-08C15

9017906146

main90179-06146

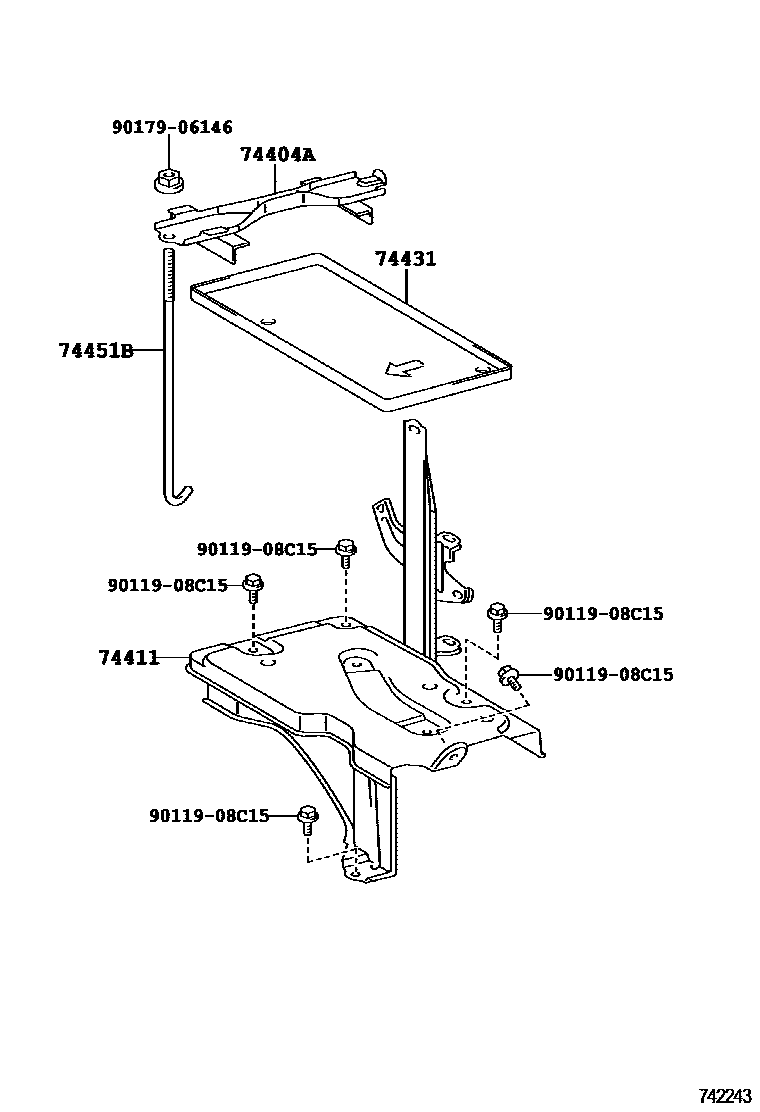

6 parts on this diagram · 1 diagram in section
