ARMREST & VISOR

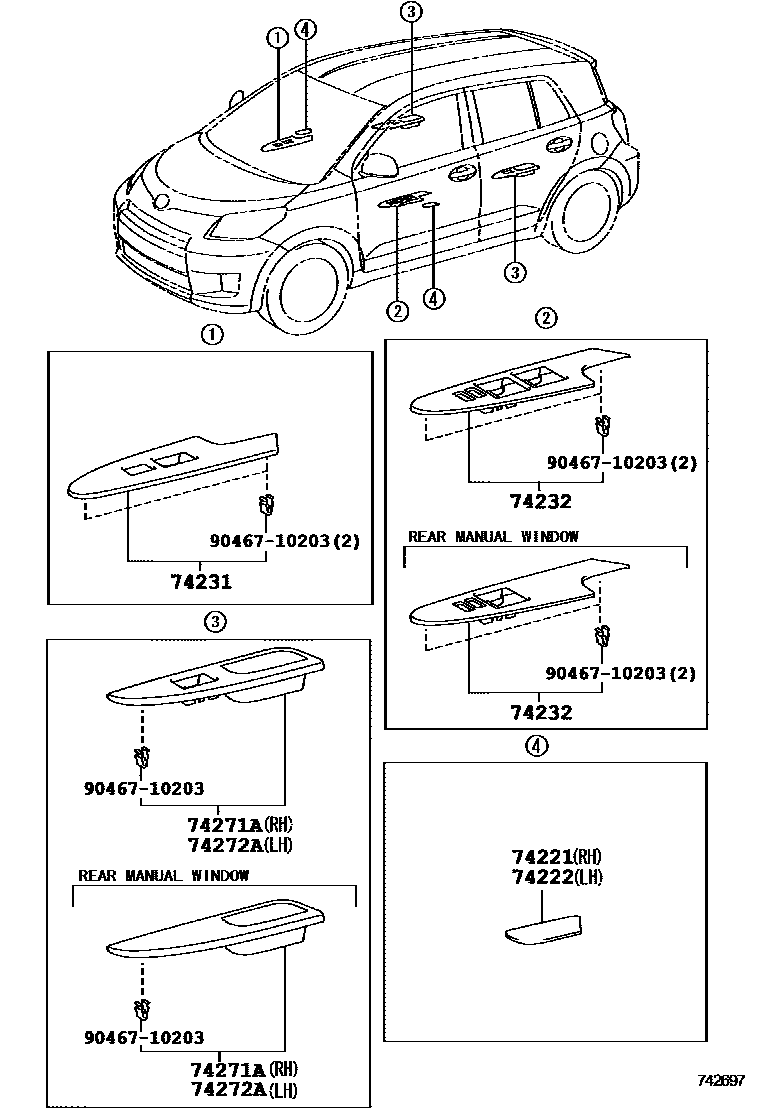

Parts diagram

74221COVER, DOOR ARMREST, RH

main74221-52030i200901

74222COVER, DOOR ARMREST, LH

main74222-52030i200901

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-52340-B0i200901-201008

SILVER,TRIM1#

main74231-52560-B0i200901-201008

SILVER,TRIM1#

main74231-52570-B0i200901-201008

SILVER,TRIM1#

main74231-52690-B0i201008-201405

GRAY,TRIM1#

main74231-52710-B0i201008-201405

GRAY,TRIM1#

main74231-52720-B0i201008-201604

GRAY,TRIM1#

main74231-52460-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

main74231-52860-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-52470-B0i200901-201008

SILVER,TRIM1#

main74232-52480-B0i200901-201008

SILVER,TRIM1#

main74232-52490-B0i200901-201008

SILVER,TRIM1#

main74232-52610-B0i201008-201405

GRAY,TRIM1#

main74232-52620-B0i201008-201604

GRAY,TRIM1#

main74232-52630-B0i201008-201604

GRAY,TRIM1#

main74232-52360-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

main74232-52450-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-52170-B0i200901-201008

SILVER,TRIM1#

main74271-52180-B0i200901-201008

SILVER,TRIM1#

main74271-52250-B0i201008-201604

GRAY,TRIM1#

main74271-52260-B0i201008-201604

GRAY,TRIM1#

main74271-52110-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-52160-B0i200901-201008

SILVER,TRIM1#

main74272-52170-B0i200901-201008

SILVER,TRIM1#

main74272-52240-B0i201008-201604

GRAY,TRIM1#

main74272-52250-B0i201008-201604

GRAY,TRIM1#

main74272-52100-C0i201008-201108

BLACK & WHITE CONCEPT,BLACK,TRIM1#

9046710203

main90467-10203

7 parts on this diagram · 4 diagrams in section
