E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

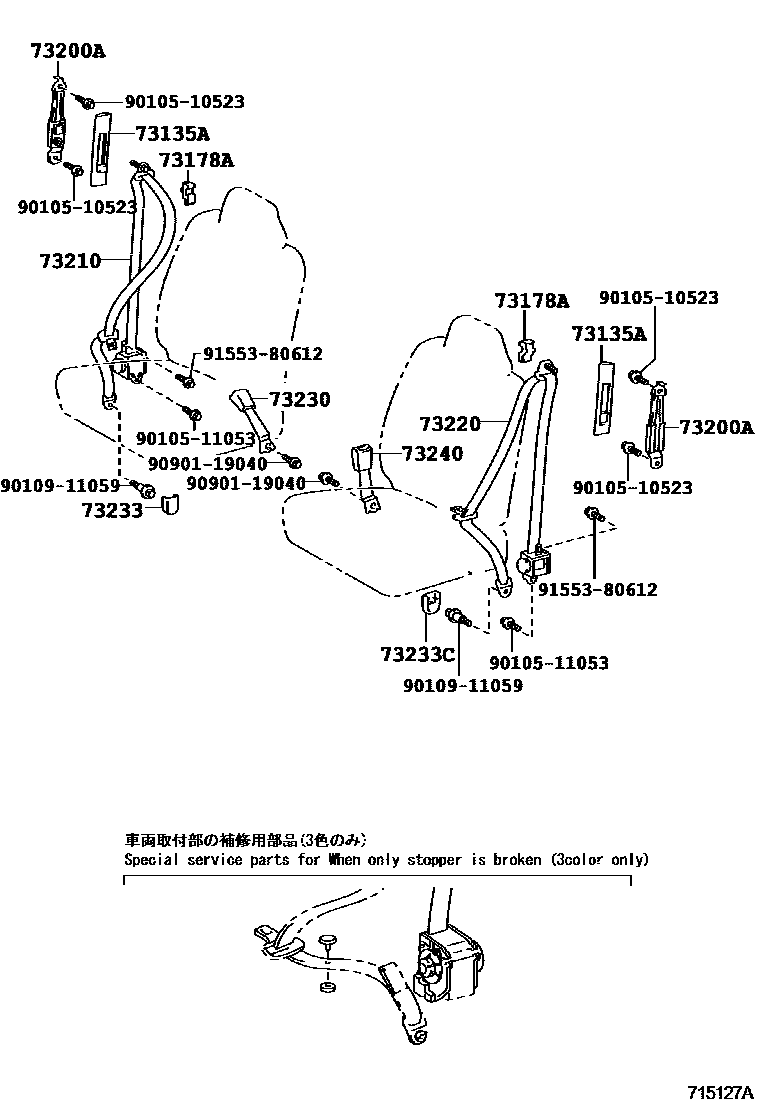

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-52020-B2i200901-201604
LT.GRAY,TRIM1#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-52020-B2i200901-201604
LT.GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-52050-B2i200901-201604
LT.GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-52681-B0i200901-201008
DK.GRAY,TRIM1#
sub73210-52682¥37,800
main73210-52681-B1i201008-201205
LT.GRAY/BLACK,TRIM1#
sub73210-52682¥37,800
main73210-52682-B1i201206-201302
LT.GRAY,TRIM1#
sub73210-52683¥37,800
main73210-52683-B1i201303-201604
LT.GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-52701-B0i200901-201008
DK.GRAY,TRIM1#
sub73220-52702¥37,800
main73220-52701-B1i201008-201205
LT.GRAY/BLACK,TRIM1#
sub73220-52702¥37,800
main73220-52702-B1i201206-201302
LT.GRAY,TRIM1#
sub73220-52703¥37,800
main73220-52703-B1i201303-201604
LT.GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-52491-B0i200901-201008
DK.GRAY,TRIM1#
sub73230-52492¥5,800
main73230-52491-C0i201008-201205
BLACK,TRIM1#
sub73230-52492¥5,800
main73230-52492-C0i201206-201405
BLACK,TRIM1#
main73230-52501-B0i200901-201008
DK.GRAY,TRIM1#
sub73230-52502¥5,800
sub73230-52760¥5,800
main73230-52501-C0i201008-201205
BLACK,TRIM1#
sub73230-52502¥5,800
sub73230-52760¥5,800
main73230-52502-C0i201206-201604
BLACK,TRIM1#
73233COVER, LAP BELT OUTER ANCHOR
main73233-52010-B1i200901-201008
DK.GRAY,TRIM1#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i201008-201502
BLACK,TRIM1#
sub73233-60020¥500
sub73233-0C010
main73233-60020-C0i201503-201604
BLACK,TRIM1#
sub73233-60020¥500
sub73233-35010¥620
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-52010-B1i200901-201008
DK.GRAY,TRIM1#
sub73233-60020¥500
sub73233-0C010
main73233-52010-C0i201008-201502
BLACK,TRIM1#
sub73233-60020¥500
sub73233-0C010
main73233-60020-C0i201503-201604
BLACK,TRIM1#
sub73233-60020¥500
sub73233-35010¥620
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-52491-B0i200901-201008
DK.GRAY,TRIM1#
sub73230-52492¥5,800
main73230-52491-C0i201008-201205
BLACK,TRIM1#
sub73230-52492¥5,800
main73230-52492-C0i201206-201604
BLACK,TRIM1#
main73230-52501-B0i200901-201008
DK.GRAY,TRIM1#
sub73230-52502¥5,800
sub73230-52760¥5,800
main73230-52501-C0i201008-201205
BLACK,TRIM1#
sub73230-52502¥5,800
sub73230-52760¥5,800
main73230-52502-C0i201206-201405
BLACK,TRIM1#
9010510523
main90105-10523¥100
9010511053
main90105-11053¥100
9010911059
main90109-11059¥240
9090119040
main90901-19040¥120
9155380612
main91553-80612¥60

14 parts on this diagram · 3 diagrams in section
