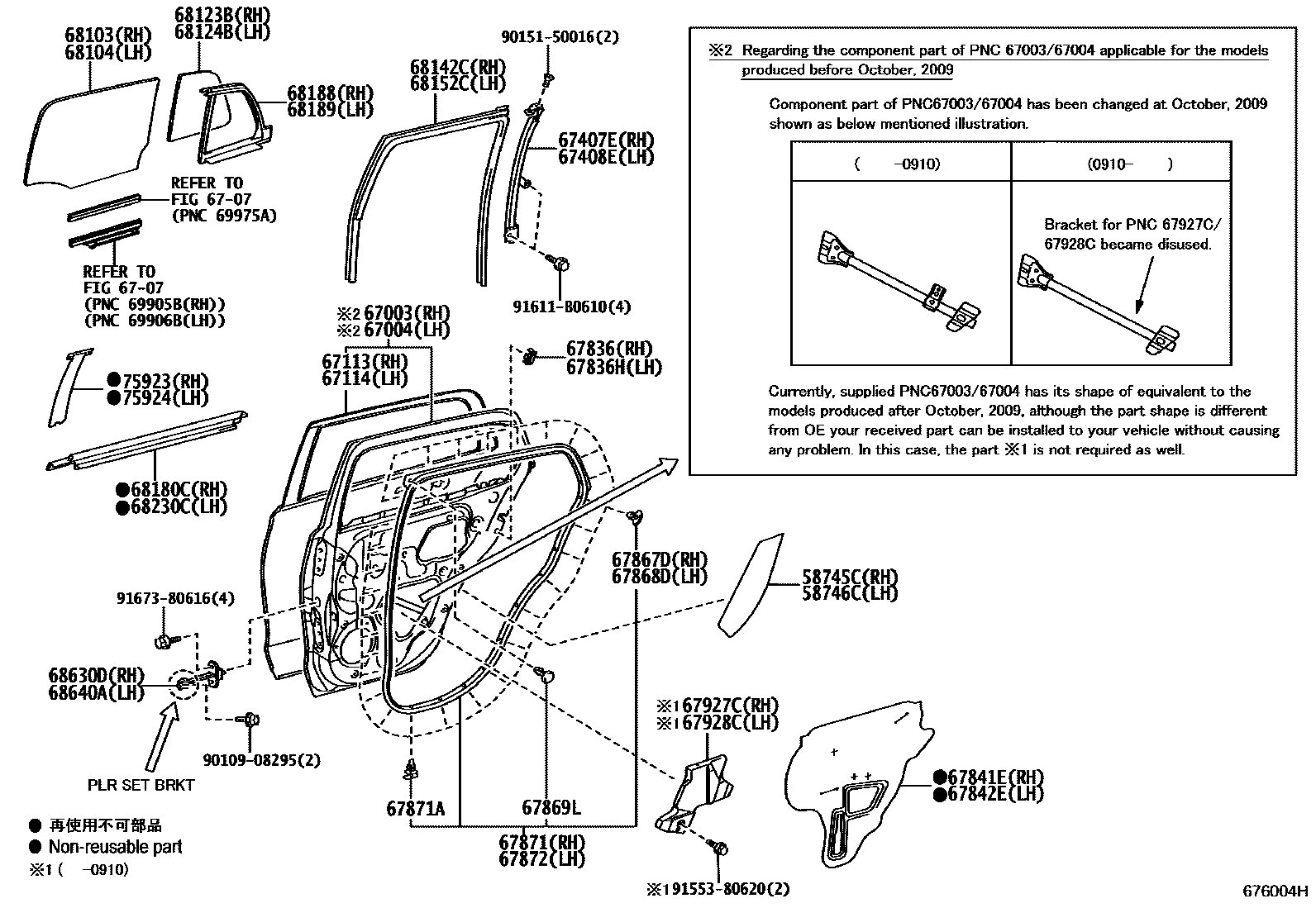

REAR DOOR PANEL & GLASS
58745CPROTECTOR, REAR DOOR PANEL, RH
58746CPROTECTOR, REAR DOOR PANEL, LH
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.1,GREEN
*TEM,T=3.1,DARK GRAY
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.1,GREEN
*TEM,T=3.1,DARK GRAY
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*UVCT,T=3.1,GREEN
*TEM,T=3.1,DARK GRAY
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*UVCT,T=3.1,GREEN
*TEM,T=3.1,DARK GRAY
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
68640ACHECK ASSY, REAR DOOR, LH
PLR SET BRKT:BLACK
PLR SET BRKT:SILVER
75923TAPE, BLACK OUT, NO.2 RH
75924TAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9015150016
main90151-50016
9155380620
main91553-80620
91611B0610
main91611-B0610
9167380616
main91673-80616
40 parts on this diagram · 2 diagrams in section
