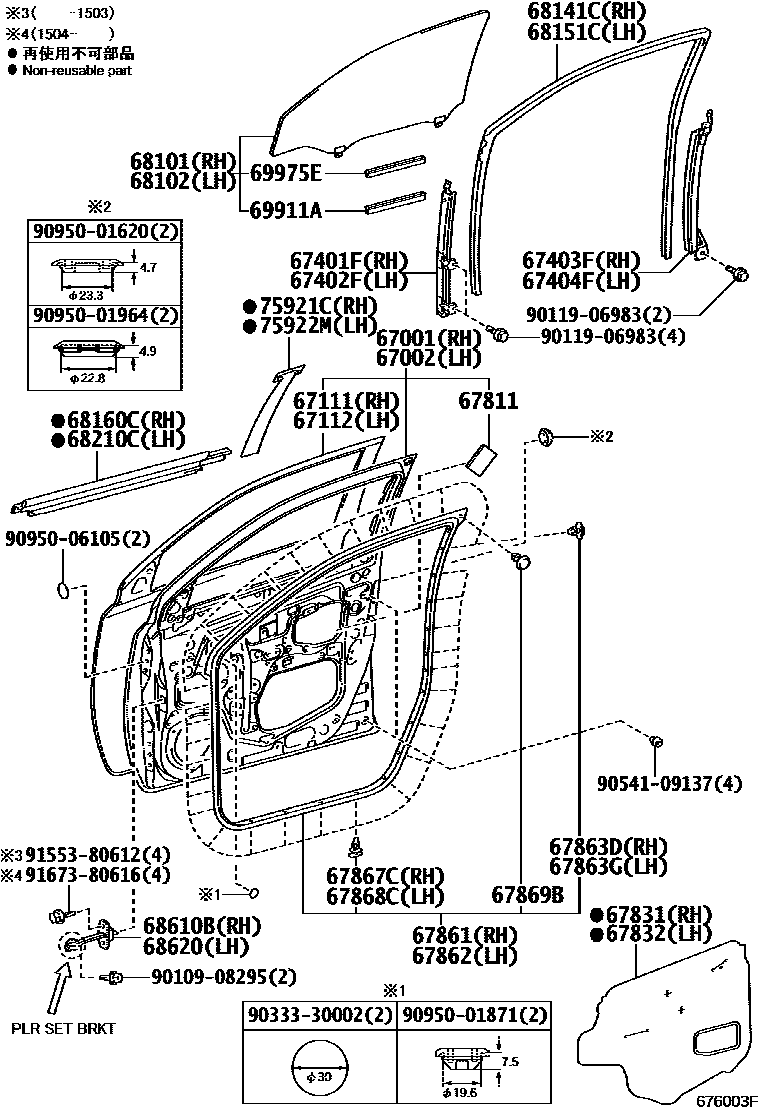

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-52430iNLP11#,NSP110200901-201604

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-52430iNLP11#,NSP110200901-201604

67111PANEL, FRONT DOOR, OUTER RH

main67111-52190iNLP11#,NSP110200901-201604

67112PANEL, FRONT DOOR, OUTER LH

main67112-52180iNLP11#,NSP110200901-201604

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-52140iNLP11#,NSP110200901

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-52130iNLP11#,NSP110200901

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-52200iNLP11#,NSP110200901

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-52170iNLP11#,NSP110200901

67811PAD, FRONT DOOR SILENCER

main67811-33040iNLP11#,NSP110200901

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-52370iNLP11#,NSP110..LHD200901

main67831-52380iNLP11#,NSP110..RHD200901-201405

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-52270iNLP11#,NSP110..LHD200901

main67832-52280iNLP11#,NSP110..RHD200901-201405

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-52210iNLP11#,NSP110200901-201103

main67861-52300iNLP11#,NSP110201103

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-52200iNLP11#,NSP110200901-201103

main67862-52270iNLP11#,NSP110201103

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52030×11iNLP11#,NSP110201103

main67867-52040×11iNLP11#,NSP110200901-201103

67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67867-52010×11iNLP11#,NSP110200901-201103

main67867-52020×11iNLP11#,NSP110201103

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×20iNLP11#,NSP110200901

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×20iNLP11#,NSP110200901

67869BCLIP, FRONT DOOR WEATHERSTRIP

main90467-06084×2iNLP11#,NSP110200901

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-52290iNLP11#,NSP110200901-201604

*UVCT,T=3.5,GREEN

main68110-52360iNLP11#,NSP110..RHD200901-201405

*UVCT,T=3.5,GREEN,UK SPEC

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-52290iNLP11#,NSP110200901-201604

*UVCT,T=3.5,GREEN

main68120-52350iNLP11#,NSP110..RHD200901-201405

*UVCT,T=3.5,GREEN,UK SPEC

68141CRUN, FRONT DOOR GLASS, RH

main68141-52200iNLP11#,NSP110200901

68151CRUN, FRONT DOOR GLASS, LH

main68151-52190iNLP11#,NSP110200901

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-52160iNLP11#,NSP110200901

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-52160iNLP11#,NSP110200901

68610BCHECK ASSY, FRONT DOOR, RH

main68610-52110iNLP11#,NSP110200901-201005

PLR SET BRKT:BLACK

main68610-52111iNLP11#,NSP110201005

PLR SET BRKT:SILVER

68620CHECK ASSY, FRONT DOOR, LH

main68620-52110iNLP11#,NSP110200901-201005

PLR SET BRKT:BLACK

main68620-52111iNLP11#,NSP110201005

PLR SET BRKT:SILVER

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-20050×2iNLP11#,NSP110200901

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-16020×2iNLP11#,NSP110200901

75921CTAPE, BLACK OUT, NO.1 RH

main75921-52110iNLP11#,NSP110200901-201308

75922MTAPE, BLACK OUT, NO.1 LH

main75922-52110iNLP11#,NSP110200901-201308

9010908295

main90109-08295

9011906983

main90119-06983

9033330002

main90333-30002

9054109137

main90541-09137

9095001620

main90950-01620

9095001871

main90950-01871

9095001964

main90950-01964

9095006105

main90950-06105

9155380612

main91553-80612

9167380616

main91673-80616

40 parts on this diagram · 2 diagrams in section
