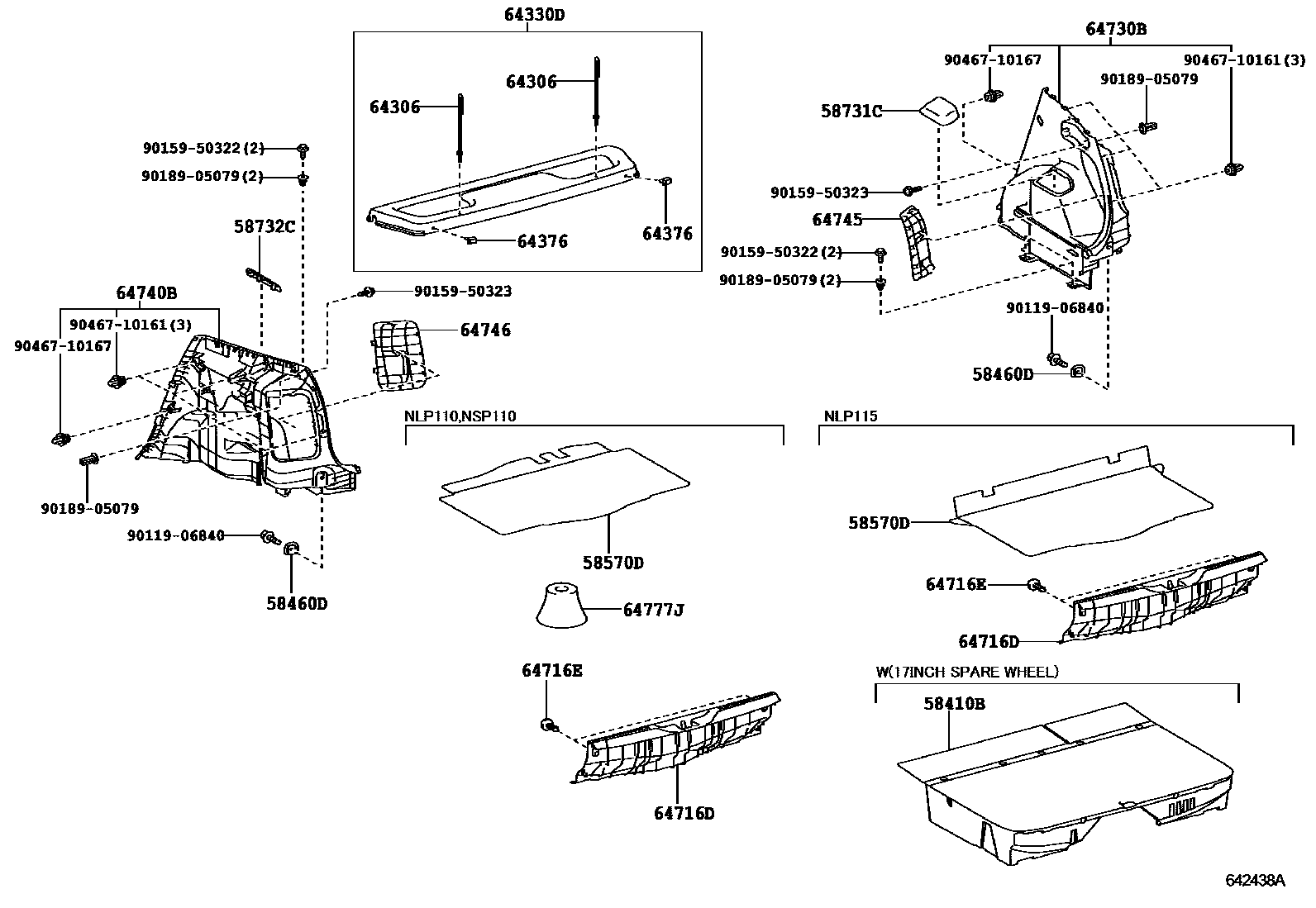

DECK BOARD & DECK TRIM COVER

58410BBOARD ASSY, DECK

main58410-52050-B1iNLP115..LHD200902-201201

SPARE TIRE-T125/70D17,DARK GRAY,TRIM1#

main58410-52050-B2iNLP115..LHD201201-201405

SPARE TIRE-T125/70D17,DARK GRAY,TRIM1#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020×2iNLP115..LHD200902-201405

SPARE TIRE-TEMPORARY(T125/70D17)

58570DCARPET ASSY, REAR FLOOR

main58570-52290iNLP110,NSP110200901

main58570-52300iNLP115200902-201405

58731CCAP, REAR ABSORBER

main58731-52050-B0iNLP11#,NSP110200901-201111

DK.GRAY,TRIM1#

main58731-52050-C0iNLP11#,NSP110201111-201604

BLACK,TRIM1#

58732CCAP, REAR ABSORBER

main58732-52030-B0iNLP11#,NSP110200901-201111

DK.GRAY,TRIM1#

main58732-52030-C0iNLP11#,NSP110201111-201604

BLACK,TRIM1#

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-52030×2iNLP11#,NSP110200901

WITH(PACKAGE TRAY&PARCEL SHELF)

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-52210-C0iNLP11#,NSP110200901-201604

WITH(PACKAGE TRAY&PARCEL SHELF),BLACK,TRIM1#

64376SPACER, PACKAGE TRAY TRIM, NO.2

main64376-12020×2iNLP11#,NSP110200901

WITH(PACKAGE TRAY&PARCEL SHELF)

64716DCOVER, DECK TRIM, REAR

main64716-52150-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

main64716-52140-B0iNLP115..LHD200902-201405

SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-08186-B4×2iNLP11#,NSP110200901-201111

DK.GRAY,TRIM1#

main90467-08186-C0×2iNLP11#,NSP110201111-201604

BLACK,TRIM1#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52280-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

main64730-52380-B0iNLP115..LHD200902-201405

SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#

64740BBOARD, DECK TRIM SIDE, LH

main64740-52300-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

main64740-52440-B0iNLP115..LHD200902-201405

SPARE TIRE-TEMPORARY(T125/70D17),DK.GRAY,TRIM1#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-52120-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-52140-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

64777JCUSHION, SPARE WHEEL

main64777-52020iNLP110,NSP110200901

9011906840

main90119-06840

9015950322

main90159-50322

9015950323

main90159-50323

9018905079

main90189-05079

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 1 diagram in section
