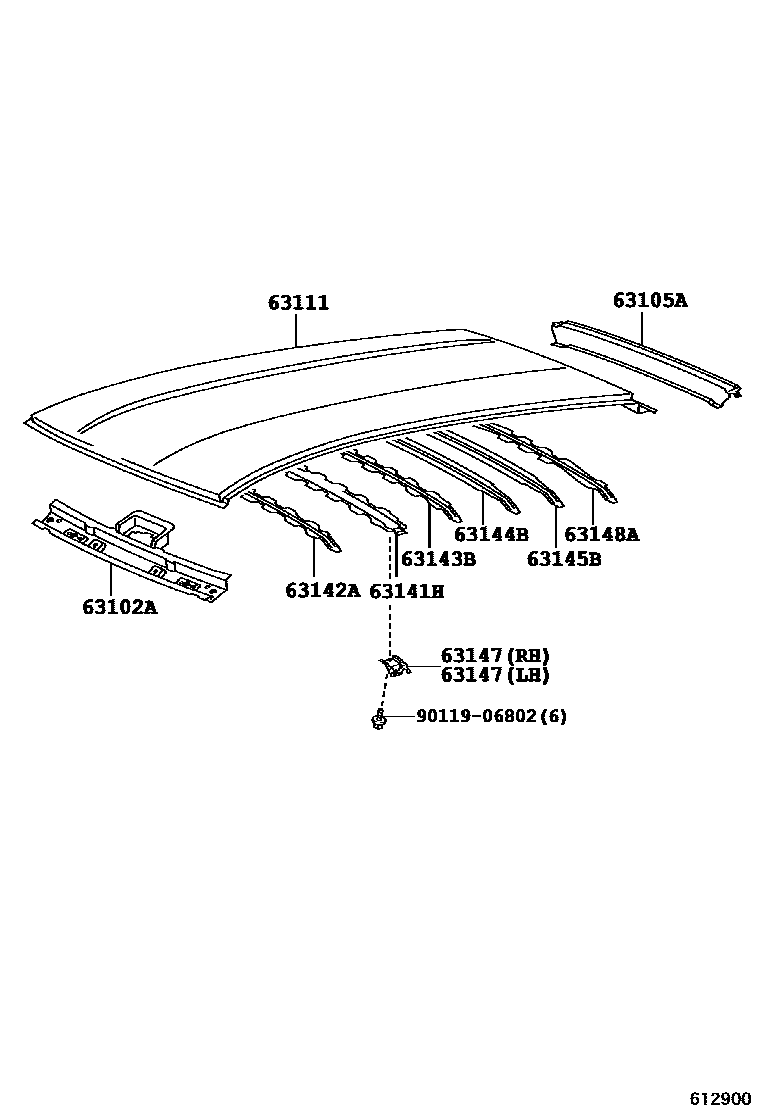

ROOF PANEL & BACK WINDOW GLASS

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-52150iNLP11#,NSP110200901-201604

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-52130iNLP11#,NSP110200901-201604

63111PANEL, ROOF

main63111-52260iNLP11#,NSP110200901

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-52130iNLP11#,NSP110200901

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63142-52070iNLP11#,NSP110200901

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-52140iNLP11#,NSP110200901

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-52110iNLP11#,NSP110200901

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63145-52030iNLP11#,NSP110200901

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-52070iNLP11#,NSP110200901-201604

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-52090iNLP11#,NSP110200901

9011906802

main90119-06802

11 parts on this diagram · 1 diagram in section
