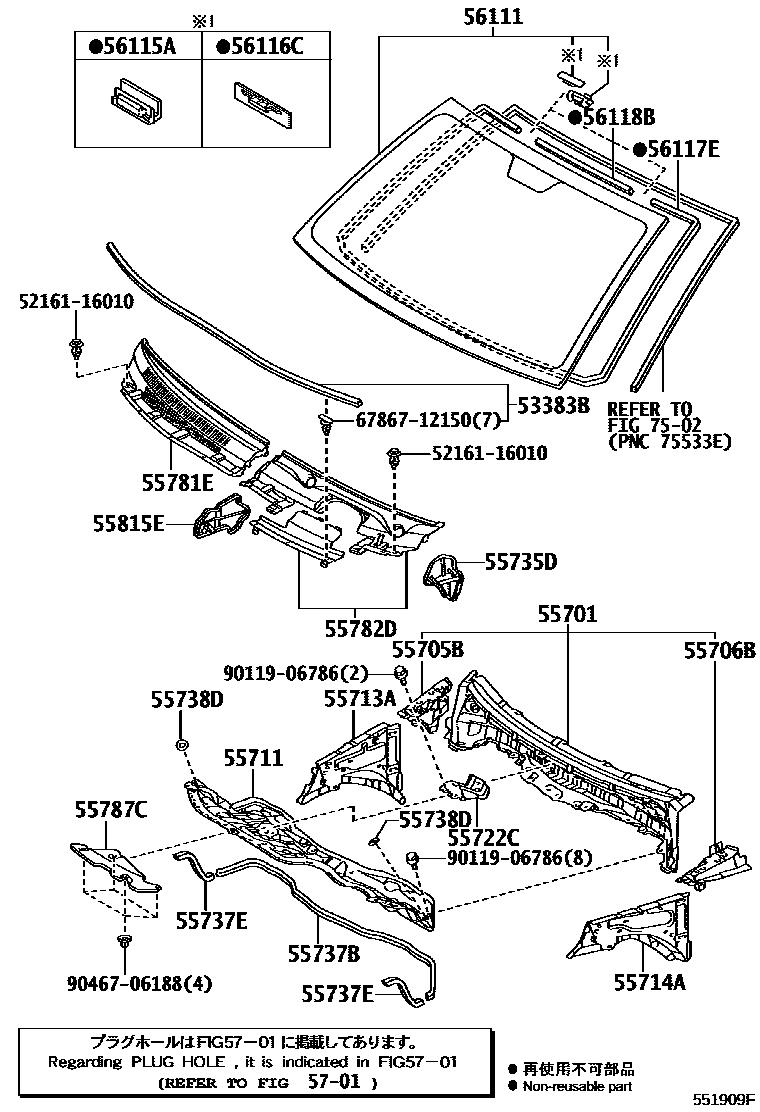

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-52110iNLP11#,NSP110200901

55701PANEL SUB-ASSY, COWL

main55700-52320iNLP11#,NSP110..RHD200901-201405

main55700-52330iNLP11#,NSP110..LHD200901-201604

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-52130iNLP11#,NSP110200901-201604

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-52130iNLP11#,NSP110200901

55711PANEL, COWL TOP, OUTER

main55701-52180iNLP11#..RHD200901-201405

main55701-52190iNLP11#..LHD200901-201003

main55701-52191iNLP11#..LHD201004-201405

main55701-52240iNSP110..RHD200901-201405

main55701-52250iNSP110..LHD200901-201003

main55701-52251iNSP110..LHD201004

55713APANEL, COWL TOP SIDE, RH

main55713-52110iNLP11#,NSP110200901-201604

55714APANEL, COWL TOP SIDE, LH

main55714-52110iNLP11#,NSP110200901-201604

55722CBRACE, COWL TOP TO COWL, INNER

main55722-52070iNLP11#,NSP110..RHD200901-201405

main55722-52080iNLP11#,NSP110..LHD200901

55735DSEAL, FRONT AIR SHUTTER, RH

main55735-52060iNLP11#,NSP110..RHD200901-201405

main55735-52070iNLP11#,NSP110..LHD200901

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-52010iNLP11#,NSP110200901

L=1295

55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52050×2iNLP11#,NSP110200901

L=250.0

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55737-52040×2iNLP11#,NSP110200901

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-52150iNLP11#,NSP110..RHD200901-201405

main55708-52160supersedes 55708-52191iNLP11#,NSP110..LHD200901-201209

COLD SPEC & WITH(REAR HEATER DUCT)

main55708-52161supersedes 55708-52191iNLP11#,NSP110..LHD201210

COLD SPEC & WITH(REAR HEATER DUCT)

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-52100iNLP11#,NSP110..RHD200901-201405

main55709-52110iNLP11#,NSP110..LHD200901

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-52030iNLP11#..RHD200901-201405

main55787-52040iNLP11#..LHD200901-201405

55815ESEAL, FRONT VENTILATOR, NO.1

main55815-52020iNLP11#,NSP110..RHD200901-201405

main55815-52030iNLP11#,NSP110..LHD200901

56111GLASS, WINDSHIELD

main56101-52360iNLP11#,NSP110200901

*LAM,T=4.56,GREEN

main56101-52540iNLP11#,NSP110..N200901

*LAM,T=4.56,GREEN,SOL PACKAGE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iNLP11#,NSP110200901

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iNLP11#,NSP110200901

56117EDAM, WINDOW GLASS ADHESIVE

main56117-52160iNLP11#,NSP110200901

L=3043,SOL PACKAGE

sub56117-64010

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-52110iNLP11#,NSP110200901

L=620

sub56117-74010

5701

7502

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906786

main90119-06786

9046706188

main90467-06188

27 parts on this diagram · 2 diagrams in section
