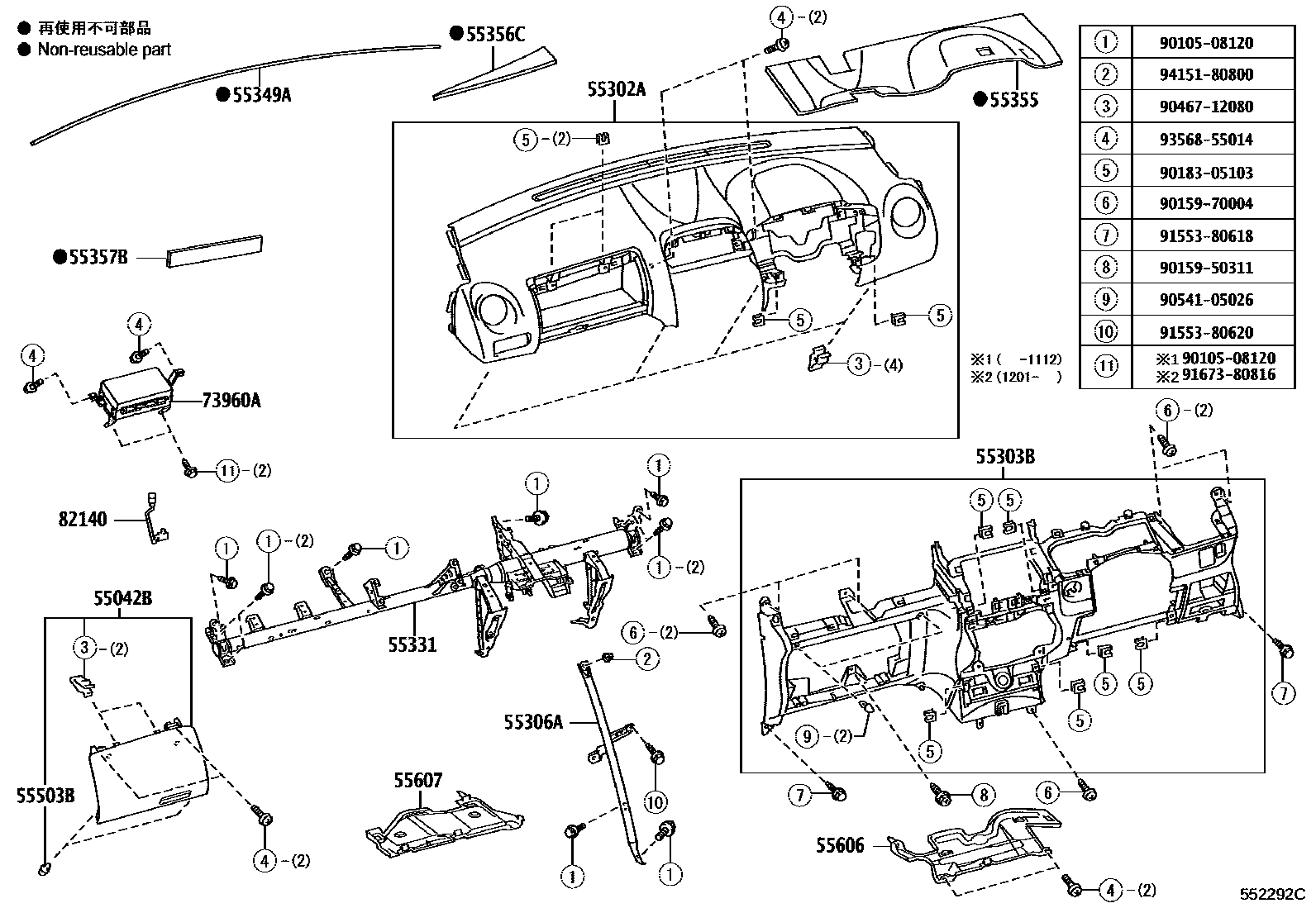

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55042BDOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2

main55042-52040-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

main55042-52050-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-52080-B0iNLP11#,NSP110..LHD200901-201110

DK.GRAY,TRIM1#

sub55302-52081

main55302-52081-B0iNLP11#,NSP110..LHD201111-201604

DK.GRAY,TRIM1#

main55302-52090-B0iNLP11#,NSP110..RHD200901-201110

DK.GRAY,TRIM1#

sub55302-52091

main55302-52091-B0iNLP11#,NSP110..RHD201111-201405

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52180-B0iNLP11#,NSP110..LHD200901-201110

DK.GRAY,TRIM1#

sub55303-52181

main55303-52181-B0iNLP11#,NSP110..LHD201111-201604

DK.GRAY,TRIM1#

main55303-52190-B0iNLP11#,NSP110..RHD200901-201110

DK.GRAY,TRIM1#

sub55303-52191

main55303-52191-B0iNLP11#,NSP110..RHD201111-201405

DK.GRAY,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52170iNLP11#,NSP110..LHD200901

main55306-52190iNLP11#,NSP110..RHD200901-201405

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52530iNLP11#,NSP110..LHD200901-200905

sub55330-52531

main55330-52531iNLP11#,NSP110..LHD200905

main55330-52540iNLP11#,NSP110..RHD200901-200905

sub55330-52541

main55330-52541iNLP11#,NSP110..RHD200905-201405

55349ACUSHION, INSTRUMENT PANEL

main55349-52100iNLP11#,NSP110..RHD200901-201405

sub55349-52310

main55349-52120iNLP11#,NSP110..LHD200901-201505

sub55349-52300

main55349-52300iNSP110201505

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52160iNLP11#,NSP110200901

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52150iNLP11#,NSP110200901

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-52130iNLP11#,NSP110200901

55503BCUSHION(FOR GLOVE COMPARTMENT)

main58959-60060iNLP11#,NSP110200901

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-52020iNLP11#,NSP110..LHD200901

main55606-52030iNLP11#,NSP110..RHD200901-201405

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-52020iNLP11#,NSP110..LHD200901

main55607-52030iNLP11#,NSP110..RHD200901-201405

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-52120iNLP11#,NSP110200901-201112

sub73960-52121

main73960-52121iNLP11#,NSP110201201-201311

sub73960-52122

main73960-52122iNLP11#,NSP110201311

82140WIRE ASSY, INSTRUMENT PANEL

main82140-52030iNLP11#,NSP110200901

9010508120

main90105-08120

9015950311

main90159-50311

9015970004

main90159-70004

9018305103

main90183-05103

9046712080

main90467-12080

9054105026

main90541-05026

9155380618

main91553-80618

9155380620

main91553-80620

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

25 parts on this diagram · 8 diagrams in section
