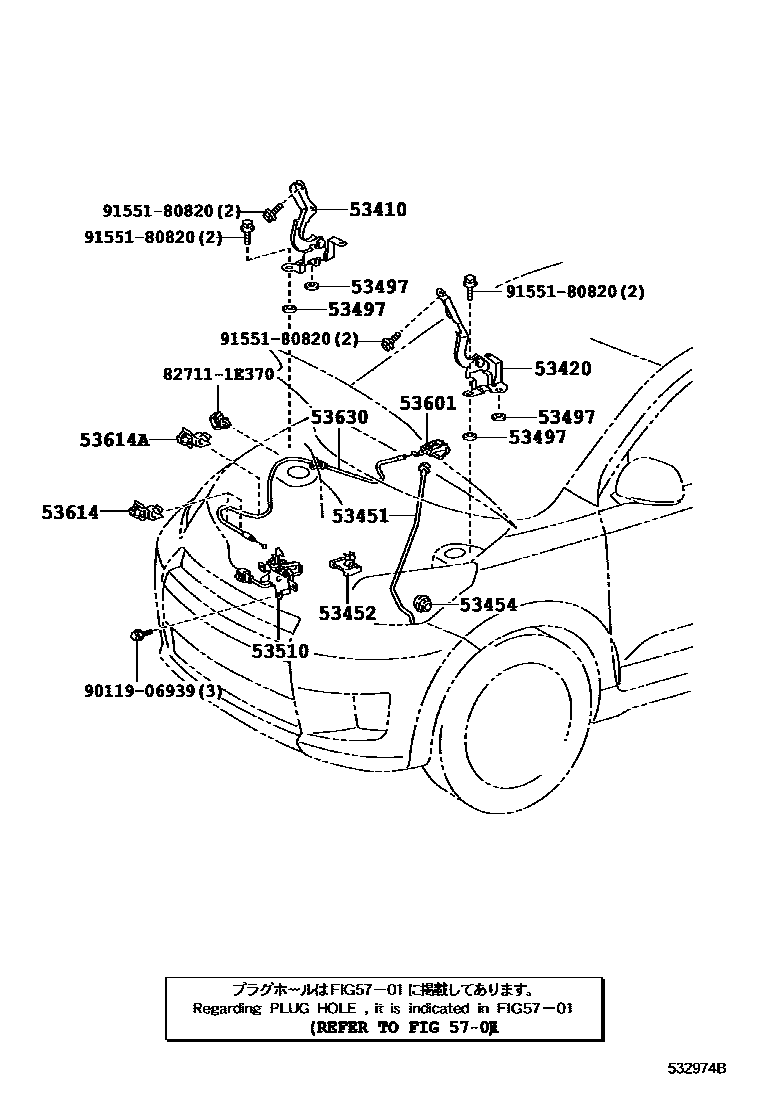

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-52271iNLP11#,NSP110200901-201604

53420HINGE ASSY, HOOD, LH

main53420-52271iNLP11#,NSP110200901-201604

53451ROD, HOOD SUPPORT

main53440-52180iNLP11#,NSP110200901

53452HOLDER, HOOD STAY

main53452-52010iNLP11#,NSP110200901

53454CLIP, HOOD SUPPORT ROD

main53454-52020iNLP11#,NSP110200901

53497PAD, HOOD HINGE, NO.1

main53497-42010iNLP11#,NSP110200901

T=0.5

53510LOCK ASSY, HOOD

main53510-52420iNLP11#..RHD200901-201405

main53510-52450iNLP11#,NSP110..LHD200901-201604

main53510-52460iNSP110..LHD200901-201604

WITH(STOP & START SYSTEM)

main53510-52470iNLP11#..RHD200901-201211

UK SPEC

sub53510-52471

main53510-52471iNSP110..RHD201212-201405

UK SPEC

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B3iNLP11#,NSP110200901-201111

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-C0iNLP11#,NSP110201111-201604

BLACK,TRIM1#

sub53601-52010

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-52010iNLP11#..RHD200901-201405

AIR CONDITIONER COMPRESSOR-WITHOUT

main53614-52010iNLP11#,NSP110..LHD200901

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-52020iNLP11#,NSP110200901

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52110iNLP11#,NSP110200901

5701

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906939

main90119-06939

9155180820

main91551-80820

15 parts on this diagram · 2 diagrams in section
