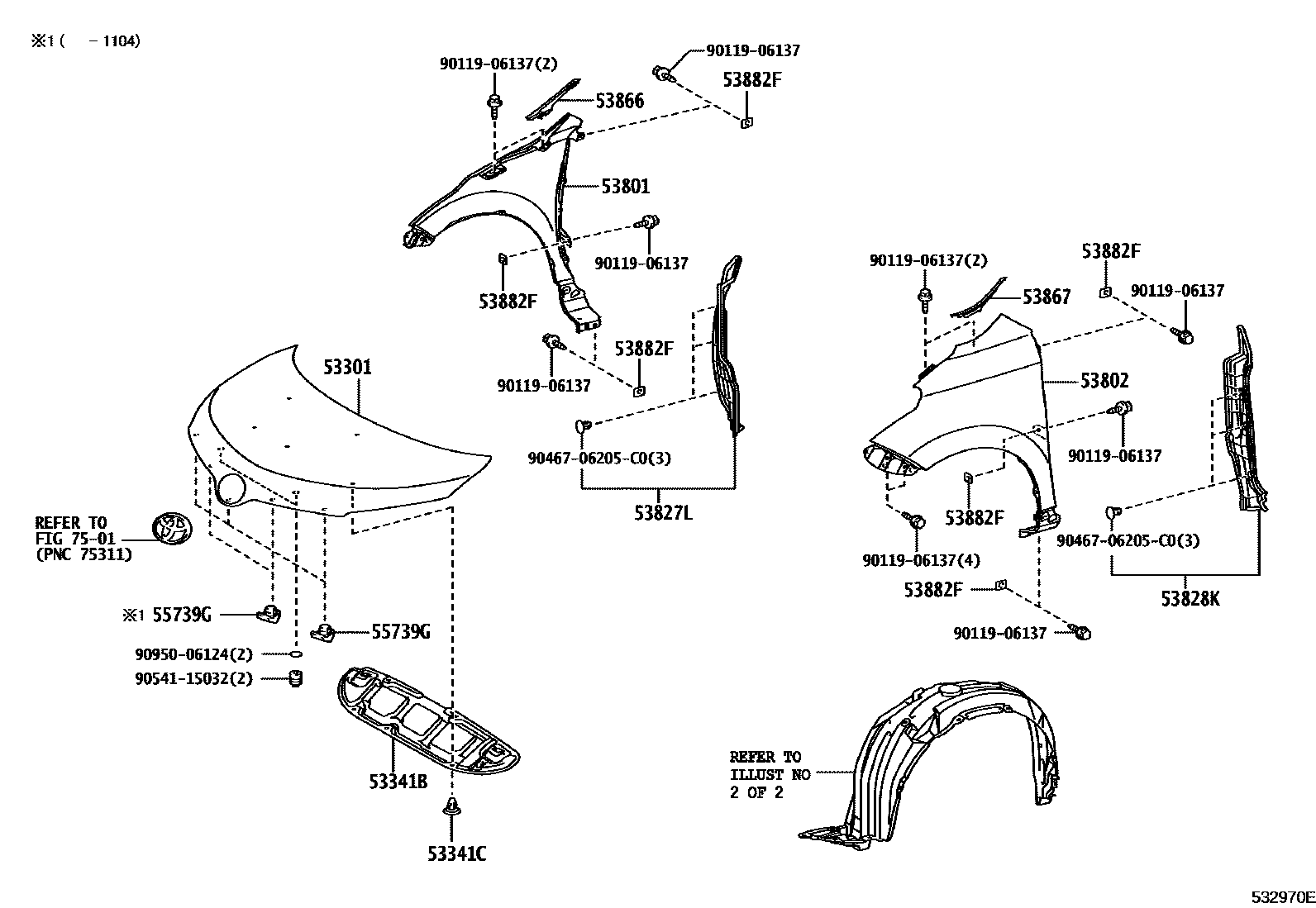

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-52270iNLP11#,NSP110¥34,100200901-200912

sub53301-52271¥34,100

main53301-52271iNLP11#,NSP110¥34,100201001-201604

sub53301-52281¥34,100

53341BINSULATOR, HOOD

main53341-52150iNLP11#,NSP110¥7,400200901

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNLP11#,NSP110¥120200901

53801FENDER SUB-ASSY, FRONT RH

main53811-52270iNLP11#,NSP110¥33,400200901-201604

53802FENDER SUB-ASSY, FRONT LH

main53812-52270iNLP11#,NSP110¥33,400200901-201604

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52130iNLP11#,NSP110¥3,200200901

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52150iNLP11#,NSP110¥3,230200901

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-52130iNLP11#,NSP110¥460200901

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-52120iNLP11#,NSP110¥460200901

53882FSEAL, FRONT FENDER

main53882-16030iNLP11#,NSP110¥60200901-201604

55739GSTOPPER, HOOD

main55738-52060iNLP11#,NSP110¥390200901-201104

7501

9011906137

main90119-06137¥70

9046706205C0

main90467-06205C0

9054115032

main90541-15032¥260

9095006124

main90950-06124¥90

16 parts on this diagram · 2 diagrams in section
