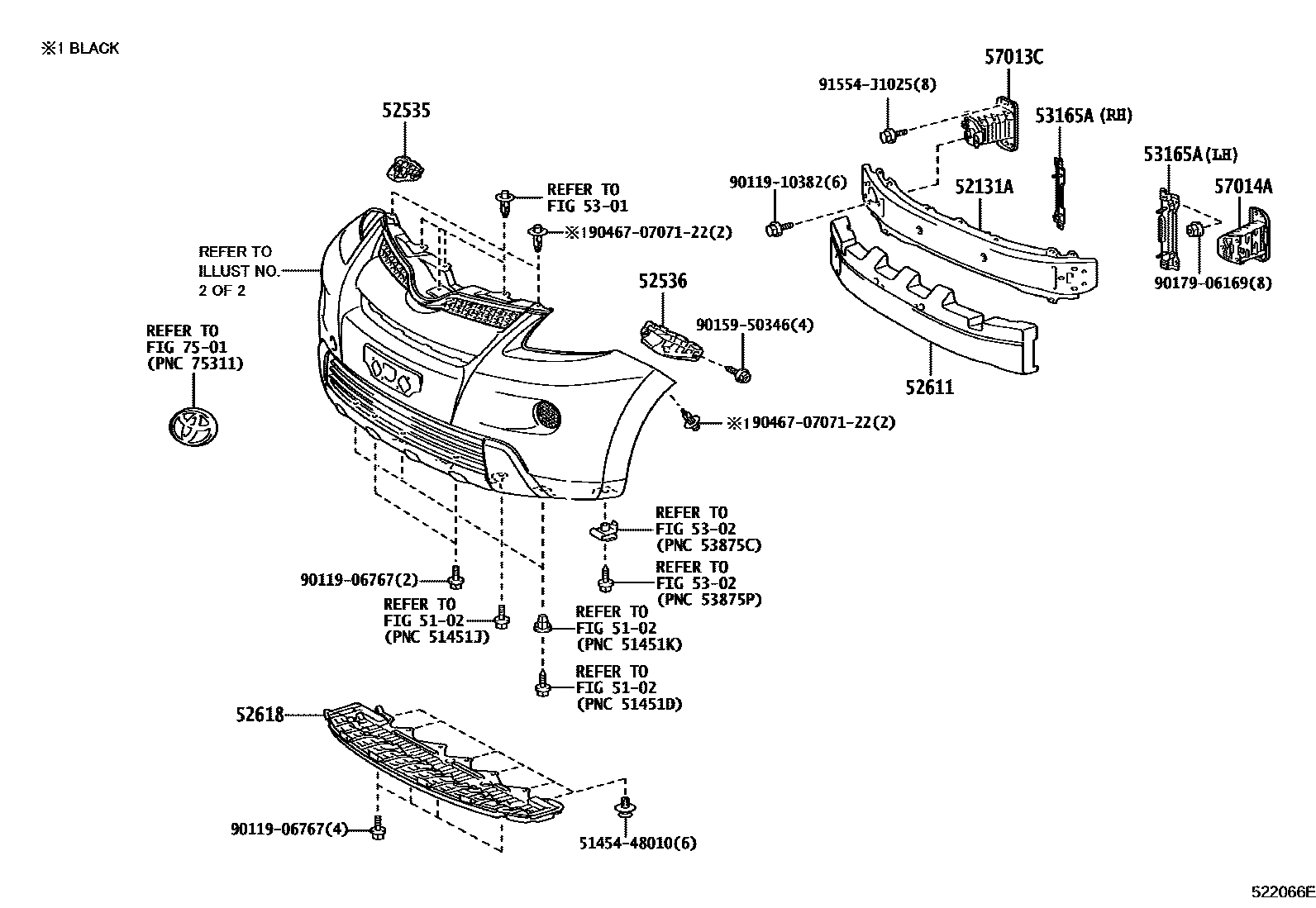

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-52250iNLP11#,NSP110200901-201604

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-52140iNLP11#,NSP110200901

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-52150iNLP11#,NSP110200901

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52170iNLP11#,NSP110200901

52618ABSORBER, FRONT BUMPER, LOWER

main52618-52020iNLP11#,NSP110200901

5301

5302

53165ABRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1

main53164-52030×2iNLP11#,NSP110200901-201604

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-52020iNLP11#,NSP110200901-201207

main57013-52021iNLP11#,NSP110201208-201604

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-52020iNLP11#,NSP110200901-201604

7501

5145448010CLIP

main51454-48010

9011906767

main90119-06767

9011910382

main90119-10382

9015950346

main90159-50346

9017906169

main90179-06169

904670707122

main90467-0707122

91554J1025

main91554-J1025

19 parts on this diagram · 2 diagrams in section
