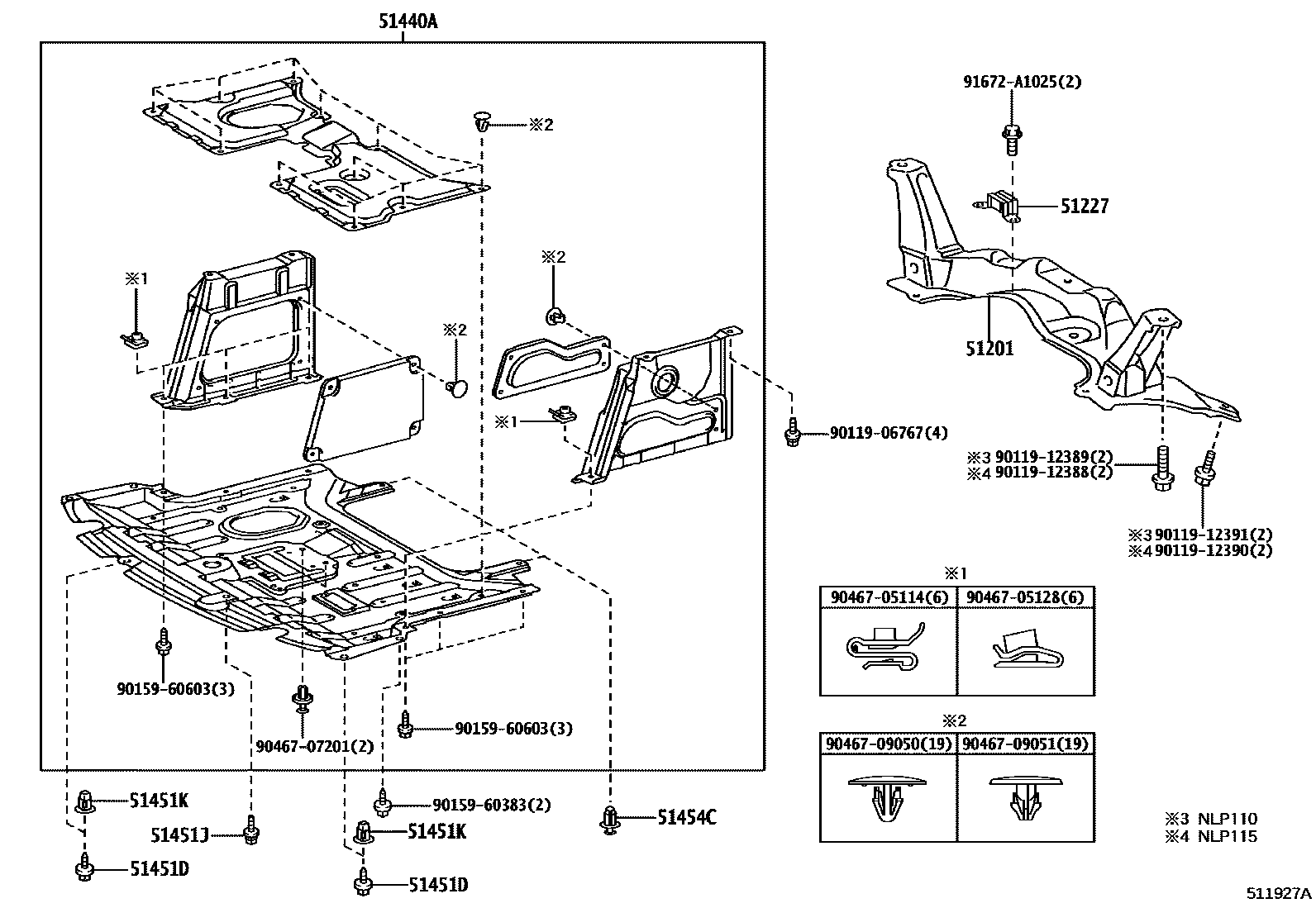

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52090iNLP110,NSP110200901-201101

sub51201-52093

main51201-52093iNLP110,NSP110201102-201105

sub51201-52094

main51201-52094iNLP110,NSP110201106-201204

sub51201-52095

main51201-52095iNLP110,NSP110201205-201207

sub51201-52096

main51201-52096iNLP110,NSP110201208-201210

sub51201-52097

main51201-52097iNLP110,NSP110201211

main51201-52100iNLP115200902-201101

sub51201-52103

main51201-52103iNLP115201102-201105

sub51201-52104

main51201-52104iNLP115201106-201204

sub51201-52105

main51201-52105iNLP115201205-201206

sub51201-52106

main51201-52106iNLP115201206-201210

sub51201-52107

main51201-52107iNLP115201211-201405

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-52070iNLP11#200901-201405

51440ACOVER ASSY, ENGINE UNDER

main51410-52060iNLP11#200901-200907

sub51410-52061

main51410-52061iNLP11#200908-201202

sub51410-52062

main51410-52062iNLP11#201203-201405

51451DSCREW, NO.1

main90159-60383iNLP11#,NSP110200901-201604

51451JBOLT, NO.1

main90119-06767iNLP11#,NSP110200901-201604

51451KGROMMET, SCREW, NO.1

main90189-06076iNLP11#,NSP110200901-201604

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-48010iNLP11#200901-201405

9011906767

main90119-06767

9011912388

main90119-12388

9011912389

main90119-12389

9011912390

main90119-12390

9011912391

main90119-12391

9015960383

main90159-60383

9015960603

main90159-60603

9046705114

main90467-05114

9046705128

main90467-05128

9046707201

main90467-07201

9046709050

main90467-09050

9046709051

main90467-09051

91672A1025

main91672-A1025

20 parts on this diagram · 3 diagrams in section
