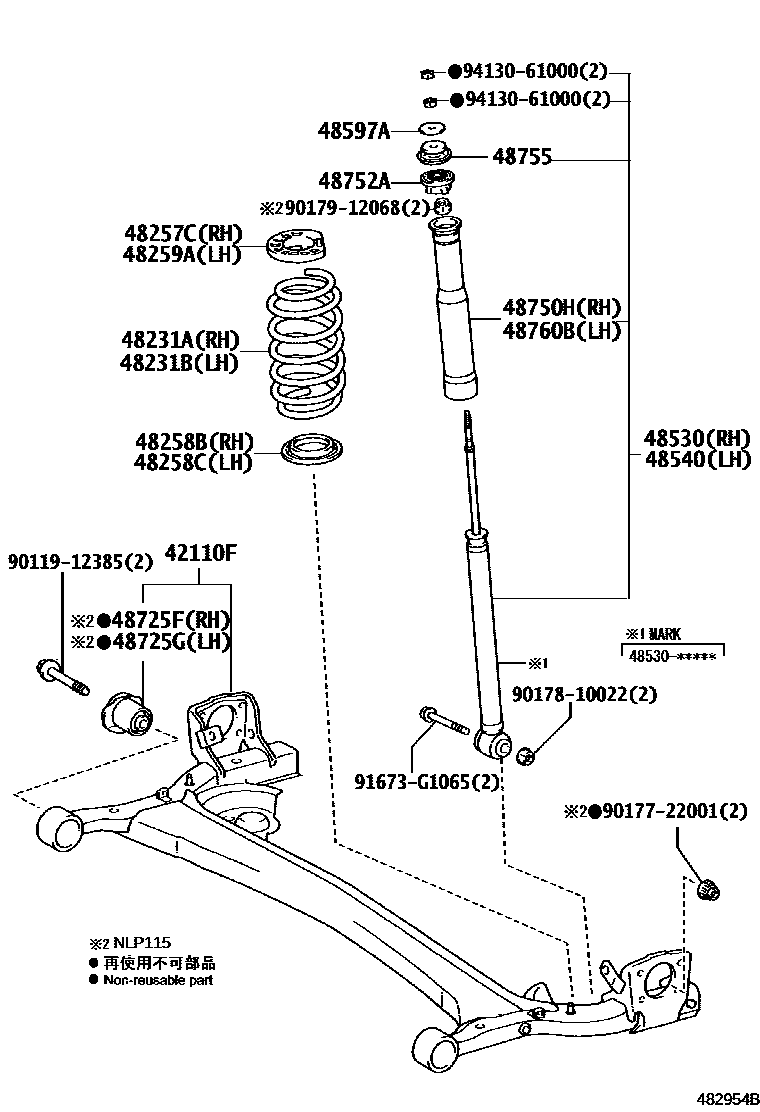

REAR SPRING & SHOCK ABSORBER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-52F00
MARK 48530-52E80
MARK 48530-52F01
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-52F00
MARK 48530-52E80
MARK 48530-52F01
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48752ASTOPPER, REAR SUSPENSION SUPPORT
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
9011912385
main90119-12385
9017722001
main90177-22001
9017810022
main90178-10022
9017912068
main90179-12068
91673G1065
main91673-G1065
9413061000
main94130-61000
22 parts on this diagram · 1 diagram in section
