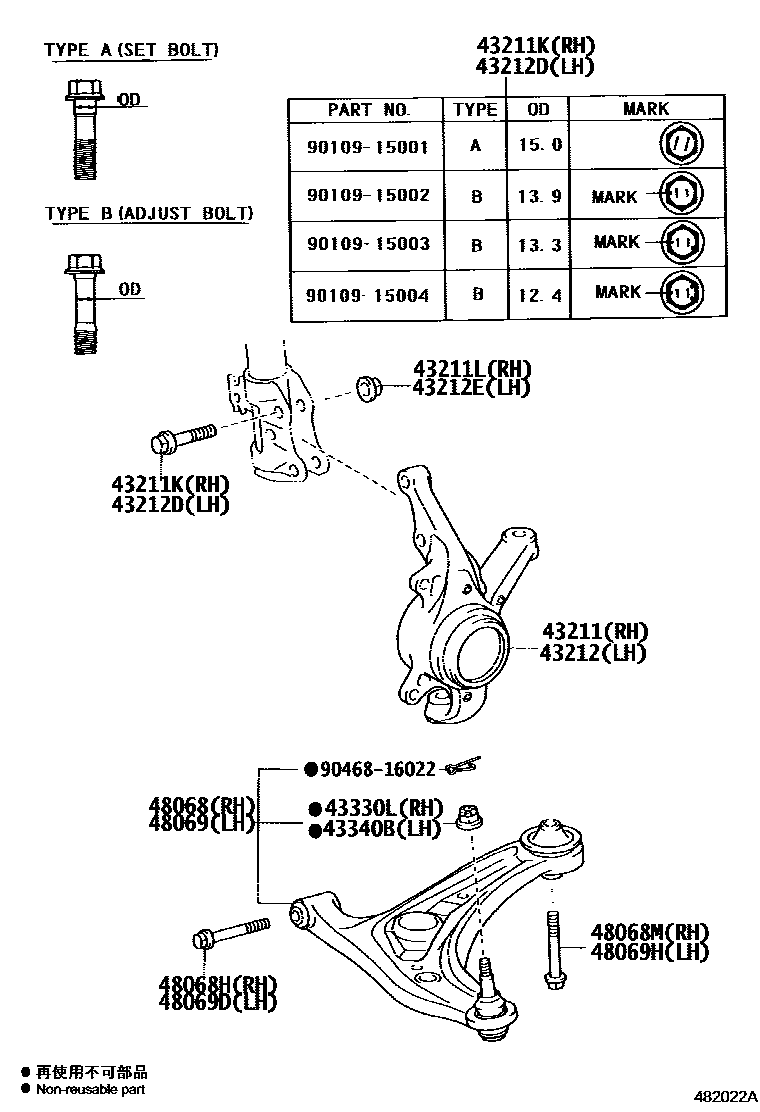

43211KNUCKLE, STEERING, RH

main43211-52050i200901

43211KBOLT (FOR STEERING KNUCKLE RH)

main90109-15001i200901

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200901

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200901

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200901

OD=12.4,TYPE B:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15004i200901

43212KNUCKLE, STEERING, LH

main43212-52050i200901

43212DBOLT (FOR STEERING KNUCKLE LH)

main90109-15001i200901

OD=15,TYPE A:REFER ILLUST.

main90109-15002i200901

OD=13.9,TYPE B:REFER ILLUST.

main90109-15003i200901

OD=13.3,TYPE B:REFER ILLUST.

main90109-15004i200901

OD=12.4,TYPE B:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15004i200901

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007i200901

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007i200901

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-59135i200901-201009

sub48068-59145

main48068-59145i201010

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14086i200901

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14123i200902-201008

sub90119-14204

main90119-14126i200901-201008

main90119-14144i201008-201212

main90119-14145i201008-201402

sub90119-14152

main90119-14151i201212

main90119-14152i201402-201405

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-59125i200901-201009

sub48069-59135

main48069-59135i201010

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14086i200901

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
