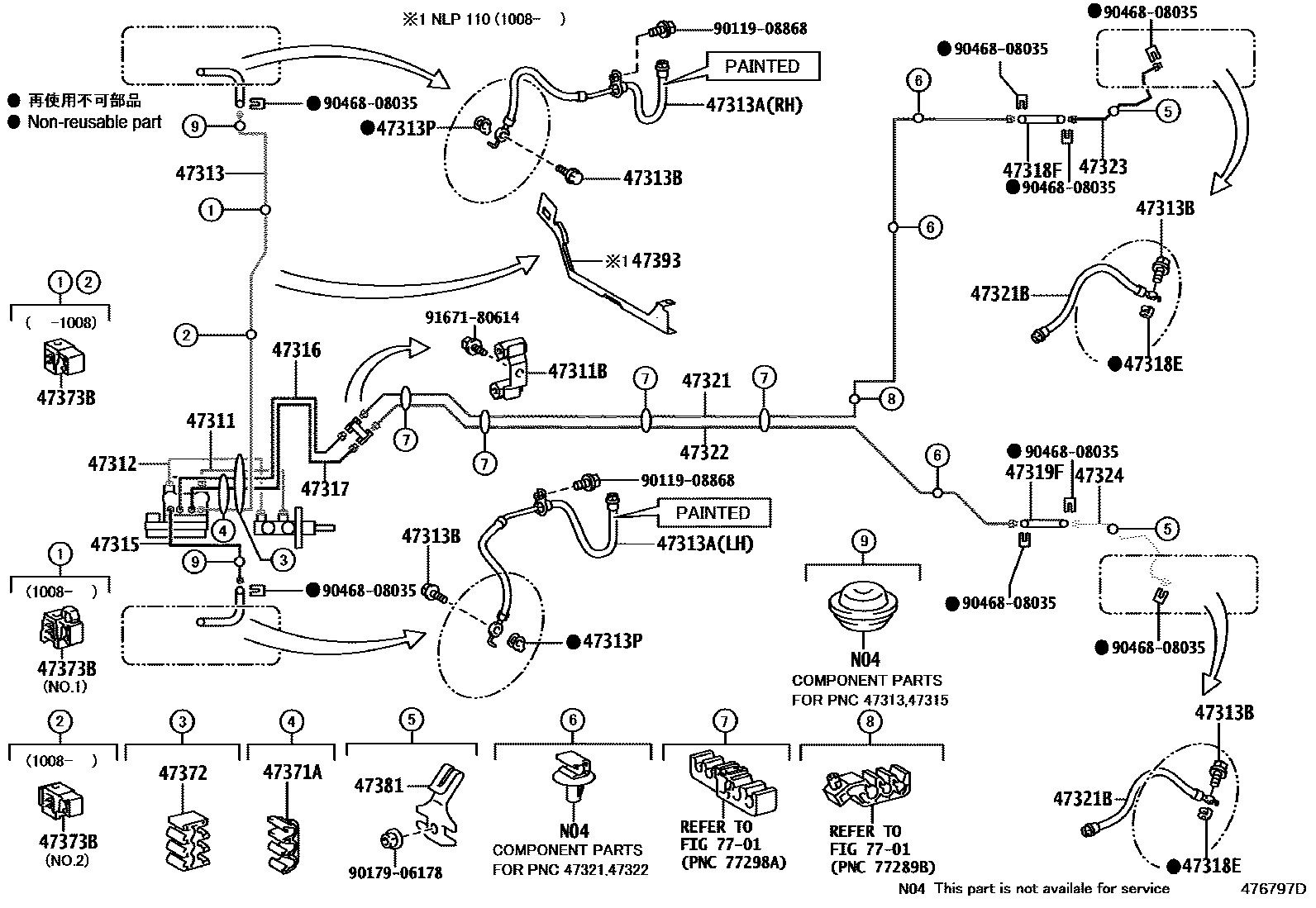

BRAKE TUBE & CLAMP
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH,PAINTED=GREEN
LH,PAINTED=PINK
RH,PAINTED=YELLOW
LH,PAINT=LIGHT BLUE
RH,PAINTED=YELLOW
LH,PAINT=LIGHT BLUE
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47316TUBE, FRONT BRAKE, NO.6
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
NO.1
NO.2
NO.1
NO.2
47381BRACKET, BRAKE TUBE CLAMP NO.1
47393INSULATOR, BRAKE TUBE HEAT
7701
9011908868
main90119-08868
9017906178
main90179-06178
9046808035
main90468-08035
9167180614
main91671-80614
28 parts on this diagram · 8 diagrams in section
