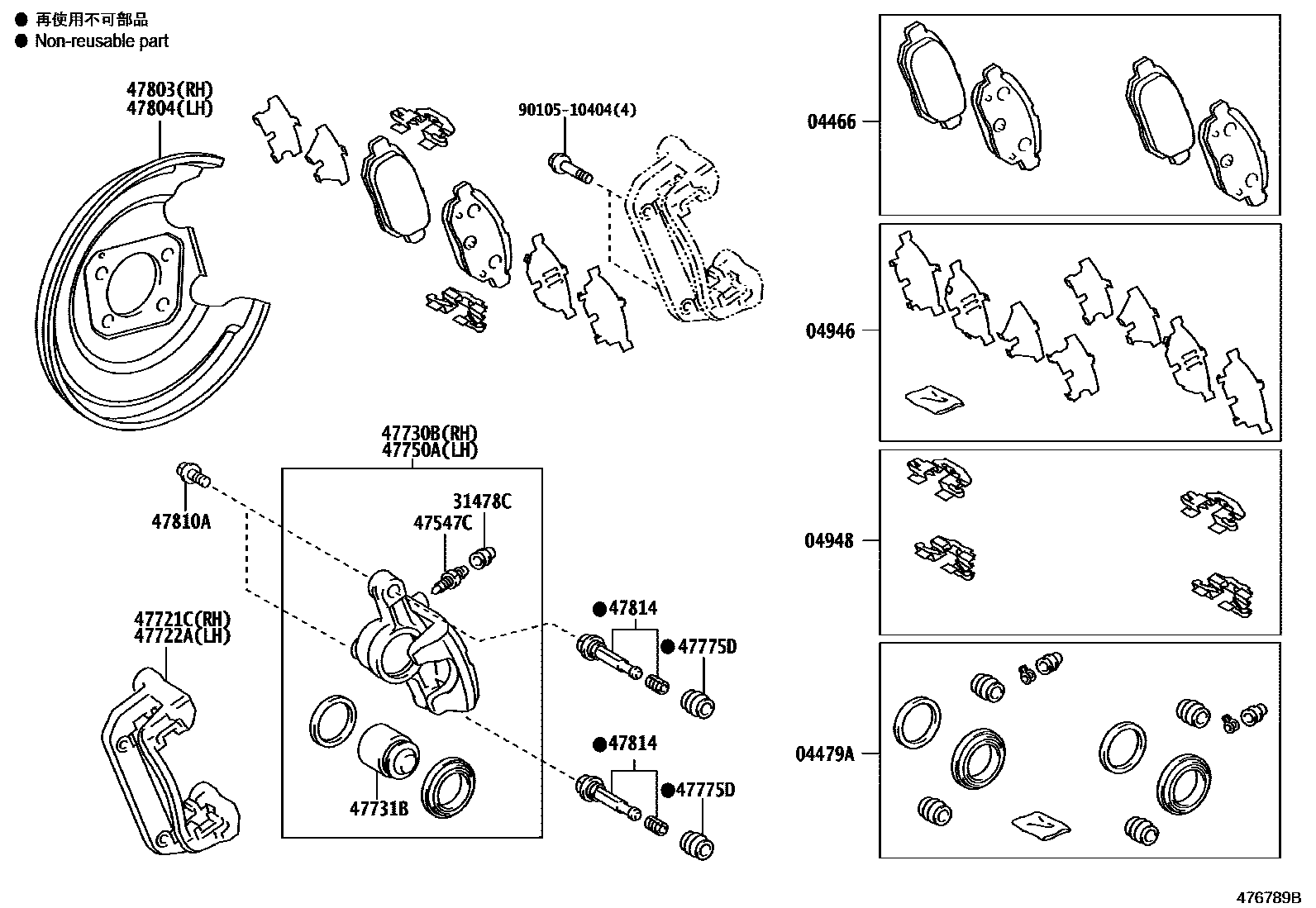

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-12130iNLP110,NSP110200901-201111

MARK AK NS254

sub04466-12140

main04466-12140iNLP110,NSP110201112-201205

MARK AK NS254

sub04466-12150

main04466-12150iNLP110,NSP110201206

MARK AK NS254

main04466-21020iNLP115201206-201405

MARK AK NS254

sub04466-76012

main04466-52150iNLP115200902-201112

MARK AK NS254

sub04466-52151

main04466-52151iNLP115201112-201205

MARK AK NS254

sub04466-21020

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52170iNLP11#,NSP110200901

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12040iNLP110,NSP110200901-201007

sub04946-12110

main04946-12090iNLP115200902-201007

main04946-12100iNLP115201008-201405

main04946-12110iNLP110,NSP110201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-12050iNLP115200902-201405

main04948-12060iNLP110,NSP110201112

main04948-52040iNLP110,NSP110200901-201111

sub04948-12060

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNLP11#,NSP110200901

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNLP11#,NSP110200901

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNLP110,NSP110200901

main47821-12240iNLP115200902-201405

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNLP110,NSP110200901

main47821-12240iNLP115200902-201405

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-52161iNLP110,NSP110200901

main47830-52190iNLP115200902-201405

47731BPISTON, REAR DISC BRAKE

main47831-52090iNLP11#,NSP110200901

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52161iNLP110,NSP110200901

main47850-52190iNLP115200902-201405

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNLP11#,NSP110200901

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-52030iNLP110,NSP110200901

main47803-52040iNLP115200902-201405

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-52030iNLP110,NSP110200901

main47804-52040iNLP115200902-201405

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iNLP11#,NSP110200901

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47835-12150iNLP11#,NSP110200901

9010510404

main90105-10404

17 parts on this diagram · 2 diagrams in section
