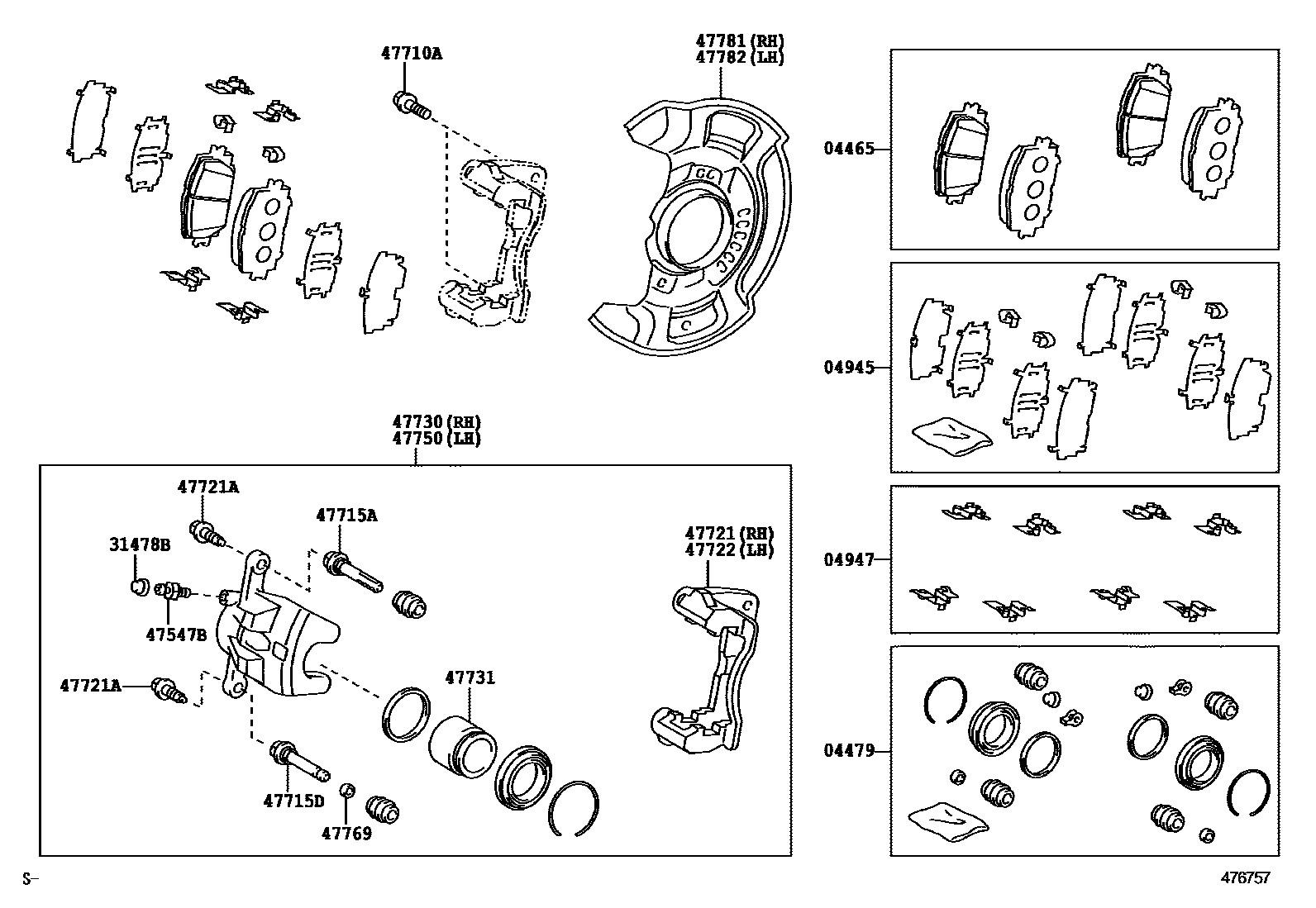

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-12610iNLP11#,NSP110¥10,100200901

MARK ADVICS PC553H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-12060iNLP11#,NSP110¥1,800200901

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12100iNLP11#,NSP110¥2,950200901-200904

sub04945-12110¥2,950

main04945-12110iNLP11#,NSP110¥2,950200905-201311

sub04945-12111¥1,850

main04945-12111iNLP11#,NSP110¥1,850201311

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iNLP11#,NSP110¥2,080200901

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iNLP11#,NSP110¥160200901

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iNLP11#,NSP110¥200200901

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNLP11#,NSP110¥160200901-201604

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iNLP11#,NSP110¥360200901

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iNLP11#,NSP110¥360200901

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A10iNLP11#,NSP110¥5,200200901

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iNLP11#,NSP110¥90200901

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A10iNLP11#,NSP110¥5,200200901

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A10iNLP11#,NSP110¥29,700200901

47731PISTON, FRONT DISC BRAKE

main47731-12A10iNLP11#,NSP110¥1,250200901

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A10iNLP11#,NSP110¥29,700200901

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iNLP11#,NSP110¥50200901

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52040iNLP11#,NSP110¥1,160200901-201604

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52040iNLP11#,NSP110¥1,160200901-201604

18 parts on this diagram · 1 diagram in section
