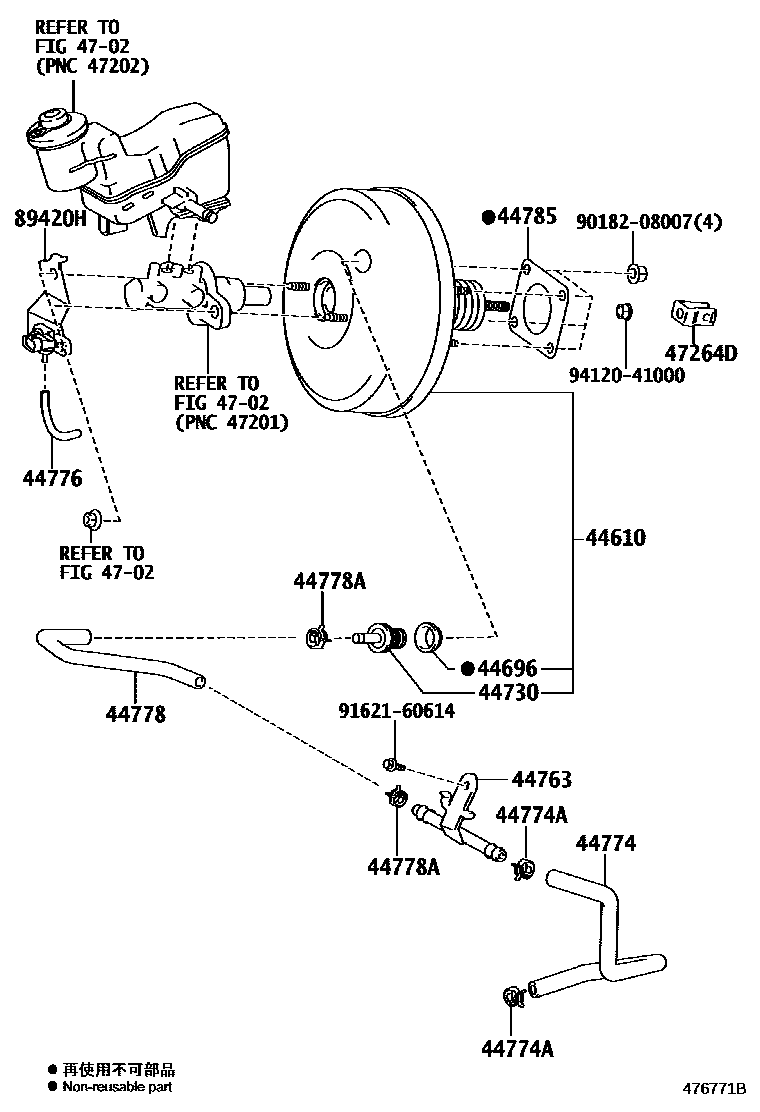

BRAKE BOOSTER & VACUUM TUBE
44610BOOSTER ASSY, BRAKE
VEHICLE STABILITY CONT-WITH PUMP UP BA
44696GROMMET, CHECK VALVE
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763TUBE, BOOSTER VACUUM
44774HOSE, UNION TO CONNECTOR TUBE
44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44776HOSE, BRAKE BOOSTER
WITH(STOP & START SYSTEM)&VEHICLE STABILITY CONT-WITH PUMP UP BA
44778HOSE, CONNECTOR TO CHECK VALVE
44778ACLIP(FOR CONNECTOR TO CHECK VALVE HOSE)
NO.1 & NO.2
NO.2
NO.1
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
89420HSENSOR ASSY, VACUUM
9018208007
9162160614
9412041000
16 parts on this diagram · 8 diagrams in section
