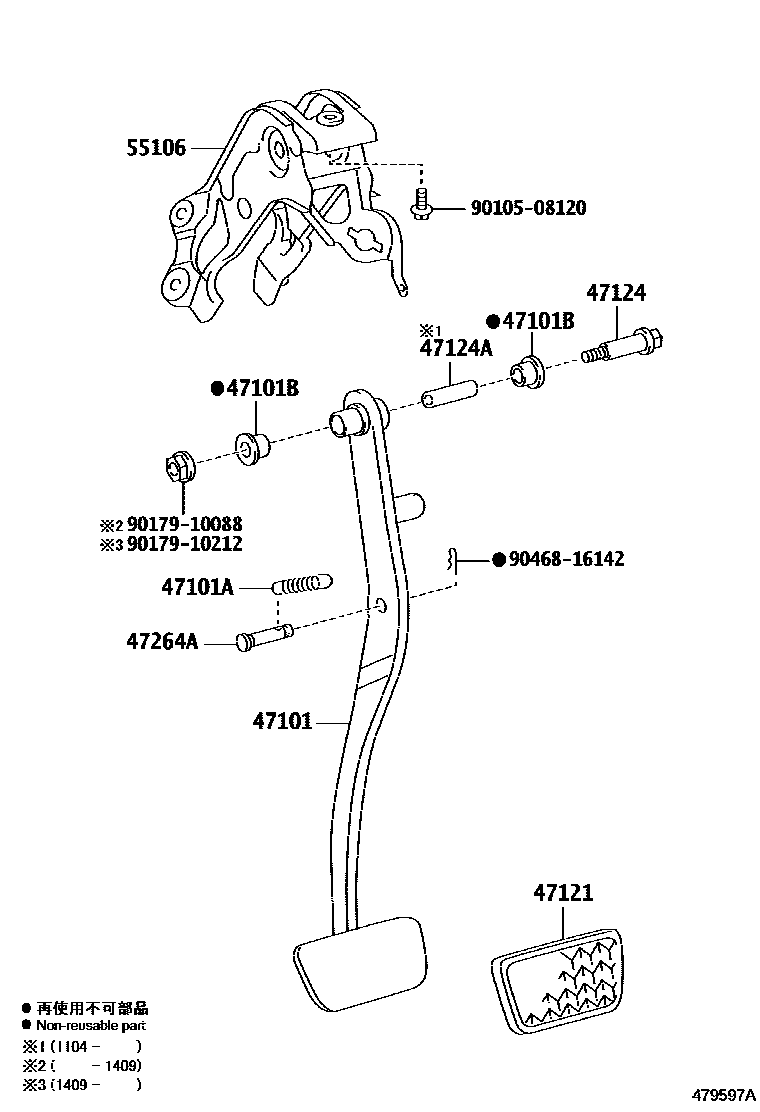

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-52290iNLP11#,NSP110..RHD200901-201405

main47101-52300iNLP11#,NSP110..LHD200901-201409

main47101-52410iNSP110201409-201604

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNLP11#,NSP110200901-201205

main90506-14088iNLP11#,NSP110201205

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNLP11#,NSP110200901

47121PAD, BRAKE PEDAL

main31321-52010iNLP11#,NSP110200901-201501

main31321-52020iNSP110201502

47124SHAFT, BRAKE PEDAL

main90105-10444iNLP11#,NSP110201104-201409

main90109-10167iNLP11#,NSP110200901-201104

main91552-81055iNSP110201409

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iNLP11#,NSP110201104

47264APIN(FOR PUSH ROD)

main90249-08051iNLP11#,NSP110200901

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-52130iNLP11#,NSP110..RHD200901-201104

sub55106-52H01

main55106-52131iNLP11#,NSP110..RHD201104-201405

main55106-52160iNLP11#,NSP110..LHD200901-201104

sub55106-52H02

main55106-52161iNLP11#,NSP110..LHD201104-201604

9010508120

main90105-08120

9017910088

main90179-10088

9017910212

main90179-10212

9046816142

main90468-16142

12 parts on this diagram · 1 diagram in section
