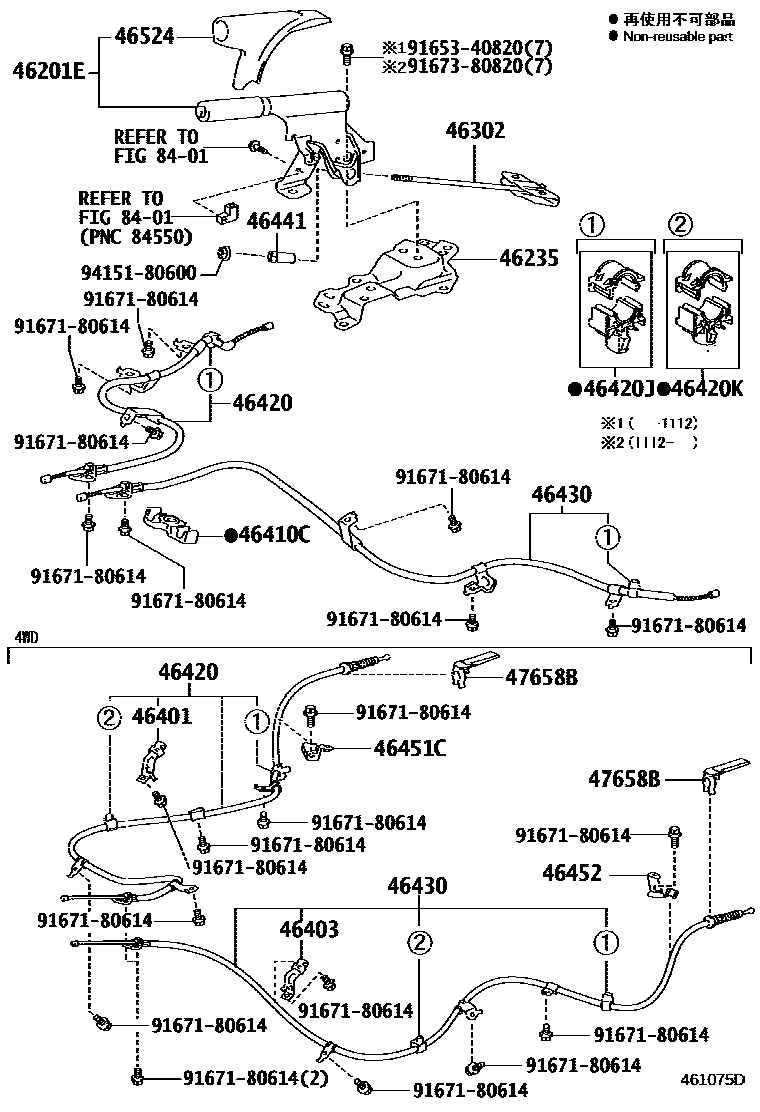

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-52060-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

46235BRACKET, PARKING BRAKE LEVER SUPPORT

main46235-52020iNLP110,NSP110200901

main46235-52030iNLP115200902-201405

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-52030iNLP11#,NSP110200901

46401BRACKET SUB-ASSY, CABLE SUPPORT

main46401-52020iNLP115200902-201405

46403BRACKET SUB-ASSY, CABLE SUPPORT, LH

main46403-52020iNLP115200902-201405

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-52030iNLP110,NSP110200901

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52161iNLP110,NSP110200901-201204

sub46420-52162

main46420-52162iNLP110,NSP110201205-201604

main46420-52320iNLP115200902-201204

sub46420-52321

main46420-52321iNLP115201205-201405

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main46402-52030iNLP110,NSP110200901

main46402-52040iNLP115200902-201405

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46402-52050iNLP115200902-201405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52161iNLP110,NSP110200901-201604

main46430-52320iNLP115200902-201204

sub46430-52321

main46430-52321iNLP115201205-201405

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNLP11#,NSP110200901

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-52070iNLP115200902-201405

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-52030iNLP115200902-201405

46524COVER, PARKING BRAKE DUST

main46524-52030iNLP11#,NSP110200901

47658BPROTECTOR, PARKING BRAKE LEVER

main47658-52010iNLP115200902-201405

8401

9165340820

main91653-40820

9167180614

main91671-80614

9167380820

main91673-80820

9415180600

main94151-80600

20 parts on this diagram · 1 diagram in section
